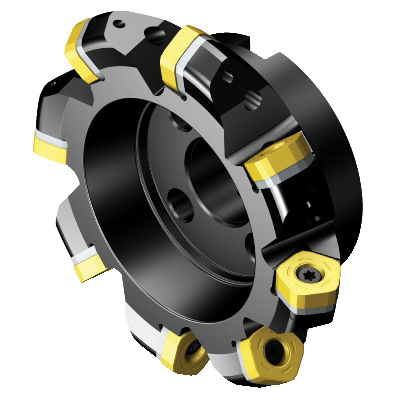

Sandvik Coromant 6289826 CoroMill® 357 Face Milling Cutter, 4.9212 in Cutting, 1.5748 in Shank, 2.4803 in OAL, 357..Qxx Insert, 0.3937 in Max Depth of Cut
Custom_Product_Images_Illustration
Sandvik Coromant 6289826 CoroMill® 357 Face Milling Cutter, 4.9212 in Cutting, 1.5748 in Shank, 2.4803 in OAL, 357..Qxx Insert, 0.3937 in Max Depth of Cut
SKU1228027
MFGR #6289826
Your Cost: $1,542.50/ea
Sandvik Coromant Face Milling Cutter, Series: CoroMill® 357, 4.9212 in Cutting Dia, 2.4803 in Overall Length, 0.3937 in Maximum Depth of Cut, 357..Qxx Insert, 6 Inserts, Insert Compatibility: 357R-2408, 1.5748 in Shank Dia, Right Hand Cutting, 57 deg Cutting Angle, ANSI Code: 357-125Q40-24M, ISO Code: 357-125Q40-24M, Steel
Sandvik Coromant Face Milling Cutter, Series: CoroMill® 357, 4.9212 in Cutting Dia, 2.4803 in Overall Length, 0.3937 in Maximum Depth of Cut, 357..Qxx Insert, 6 Inserts, Insert Compatibility: 357R-2408, 1.5748 in Shank Dia, Right Hand Cutting, 57 deg Cutting Angle, ANSI Code: 357-125Q40-24M, ISO Code: 357-125Q40-24M, Steel
ANSI Code 357-125Q40-24M Catalog Number 6289826 Country of Origin SE Finish 5680 099-01 Adjustable Torque Wrench 5680 084-10 bit; 5680 105-02 Screwdriver non adj torque wrench 5680 084-03 bit Gross Weight Per Pack 5.0600 lb Head Length 5764093 Bit, 5764191 Torque Wrench, 5764228 Torque Wrench, 5764238 Bit, 6289865 Insert Screw, 6289866 Shim Screw, 6289867 Shim and 6763479 Coolant Screw Insert Gage Screw 40 mm ISO Code 357-125Q40-24M Lead Angle 57 Material Steel Series CoroMill® 357 Standards ISO 6462:2011 Type 357-125Q40-24M UPC 11 69826272642 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Arbor Hole Diameter 1.5748 Cutting Angle 57 deg Cutting Diameter 4.9212 in Cutting Direction Right Hand Insert Compatibility 357R-2408 Insert Style 357..Qxx Maximum Depth of Cut 0.3937 in Number of Inserts 6 Overall Length 2.4803 in Shank Diameter 1.5748 in Shank Length Steel Shank Type 57 deg Axial concentric coolant entry 10 bar coolant pressure Differential cutting pitch 40 - 60 deg insert screw clamping interface 140.8 mm Dia maximum cutting 16.4 mm W keyway 63 mm overhang 0 deg maximum ramping 4400 r/min cutting feed 15 Nm torque 20 life cycle state Cutter retaining screw adaptive interface
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ANSI Code | 357-125Q40-24M |
| Catalog Number | 6289826 |
| Country of Origin | SE |
| Finish | 5680 099-01 Adjustable Torque Wrench 5680 084-10 bit; 5680 105-02 Screwdriver non adj torque wrench 5680 084-03 bit |
| Gross Weight Per Pack | 5.0600 lb |
| Head Length | 5764093 Bit, 5764191 Torque Wrench, 5764228 Torque Wrench, 5764238 Bit, 6289865 Insert Screw, 6289866 Shim Screw, 6289867 Shim and 6763479 Coolant Screw |
| Insert Gage Screw | 40 mm |
| ISO Code | 357-125Q40-24M |
| Lead Angle | 57 |
| Material | Steel |
| Series | CoroMill® 357 |
| Standards | ISO 6462:2011 |
| Type | 357-125Q40-24M |
| UPC 11 | 69826272642 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Arbor Hole Diameter | 1.5748 |
| Cutting Angle | 57 deg |
| Cutting Diameter | 4.9212 in |
| Cutting Direction | Right Hand |
| Insert Compatibility | 357R-2408 |
| Insert Style | 357..Qxx |
| Maximum Depth of Cut | 0.3937 in |
| Number of Inserts | 6 |
| Overall Length | 2.4803 in |
| Shank Diameter | 1.5748 in |
| Shank Length | Steel |
| Shank Type | 57 deg |
| Axial concentric coolant entry |
| 10 bar coolant pressure |
| Differential cutting pitch |
| 40 - 60 deg insert screw clamping interface |
| 140.8 mm Dia maximum cutting |
| 16.4 mm W keyway |
| 63 mm overhang |
| 0 deg maximum ramping |
| 4400 r/min cutting feed |
| 15 Nm torque |
| 20 life cycle state |
| Cutter retaining screw adaptive interface |
