Sandvik Coromant

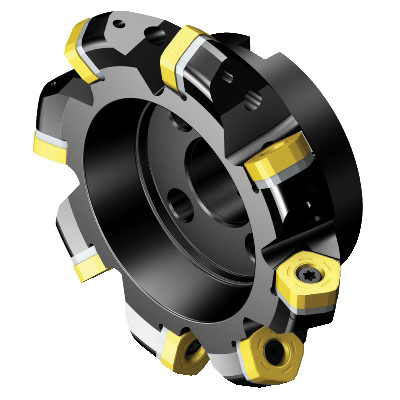

Sandvik Coromant 6289825 CoroMill® 357 Face Milling Cutter, 3.937 in Cutting, 1.2598 in Shank, 1.9685 in OAL, 357..Qxx Insert
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 6289825 CoroMill® 357 Face Milling Cutter, 3.937 in Cutting, 1.2598 in Shank, 1.9685 in OAL, 357..Qxx Insert
SKU1228030
MFGR #6289825
Your Cost: $1,419.76/ea
Sandvik Coromant Face Milling Cutter, Series: CoroMill® 357, 3.937 in Cutting Dia, 1.9685 in Overall Length, 0.3937 in Maximum Depth of Cut, 357..Qxx Insert, 5 Inserts, Insert Compatibility: 357R-2408, 1.2598 in Shank Dia, Right Hand Cutting, 57 deg Cutting Angle, ANSI Code: 357-100Q32-24M, ISO Code: 357-100Q32-24M, Steel
Sandvik Coromant Face Milling Cutter, Series: CoroMill® 357, 3.937 in Cutting Dia, 1.9685 in Overall Length, 0.3937 in Maximum Depth of Cut, 357..Qxx Insert, 5 Inserts, Insert Compatibility: 357R-2408, 1.2598 in Shank Dia, Right Hand Cutting, 57 deg Cutting Angle, ANSI Code: 357-100Q32-24M, ISO Code: 357-100Q32-24M, Steel
ANSI Code 357-100Q32-24M Catalog Number 6289825 Country of Origin SE Finish 5680 099-01 Adjustable Torque Wrench 5680 084-10 bit; 5680 105-02 Screwdriver non adj torque wrench 5680 084-03 bit Gross Weight Per Pack 2.6400 lb Head Length 50 mm Insert Gage Screw 32 mm ISO Code 357-100Q32-24M Lead Angle 57 Material Steel Series CoroMill® 357 Standards ISO 6462:2011 Type 57 deg UPC 11 69826272641 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Arbor Hole Diameter 1.2598 Cutting Angle 57 deg Cutting Diameter 3.937 in Cutting Direction Right Hand Insert Compatibility 357R-2408 Insert Style 357..Qxx Maximum Depth of Cut 0.3937 in Number of Inserts 5 Overall Length 1.9685 in Shank Diameter 1.2598 in Shank Length 357R-2408 Shank Type CoroMill® 357 Axial concentric coolant entry 10 bar coolant pressure Differential cutting pitch 40 - 60 deg insert screw clamping interface 115.8 mm Dia maximum cutting 14.4 mm W keyway 50 mm overhang 0 deg maximum ramping 5100 r/min cutting feed 15 Nm torque 20 life cycle state Hexagon socket head cap screw adaptive interface
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ANSI Code | 357-100Q32-24M |
| Catalog Number | 6289825 |
| Country of Origin | SE |
| Finish | 5680 099-01 Adjustable Torque Wrench 5680 084-10 bit; 5680 105-02 Screwdriver non adj torque wrench 5680 084-03 bit |
| Gross Weight Per Pack | 2.6400 lb |
| Head Length | 50 mm |
| Insert Gage Screw | 32 mm |
| ISO Code | 357-100Q32-24M |
| Lead Angle | 57 |
| Material | Steel |
| Series | CoroMill® 357 |
| Standards | ISO 6462:2011 |
| Type | 57 deg |
| UPC 11 | 69826272641 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Arbor Hole Diameter | 1.2598 |
| Cutting Angle | 57 deg |
| Cutting Diameter | 3.937 in |
| Cutting Direction | Right Hand |
| Insert Compatibility | 357R-2408 |
| Insert Style | 357..Qxx |
| Maximum Depth of Cut | 0.3937 in |
| Number of Inserts | 5 |
| Overall Length | 1.9685 in |
| Shank Diameter | 1.2598 in |
| Shank Length | 357R-2408 |
| Shank Type | CoroMill® 357 |
| Axial concentric coolant entry |
| 10 bar coolant pressure |
| Differential cutting pitch |
| 40 - 60 deg insert screw clamping interface |
| 115.8 mm Dia maximum cutting |
| 14.4 mm W keyway |
| 50 mm overhang |
| 0 deg maximum ramping |
| 5100 r/min cutting feed |
| 15 Nm torque |
| 20 life cycle state |
| Hexagon socket head cap screw adaptive interface |
