Sandvik Coromant

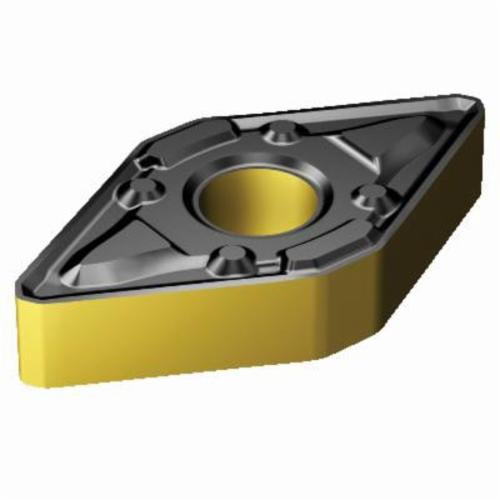

Sandvik Coromant 6266002 T-Max® P Negative Basic Shape Turning Insert, DNMX 433-WMX 4325, D-55 deg Diamond, DNMX Insert
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 6266002 T-Max® P Negative Basic Shape Turning Insert, DNMX 433-WMX 4325, D-55 deg Diamond, DNMX Insert
SKU1230060
MFGR #6266002
Your Cost: $24.16/ea
List: Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, DNMX Insert, D-55 deg Diamond, 6 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.1874 in Thickness, 0.6103 in Length, WMX Chipbreaker, 0.0468 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: 4325, ANSI Code: DNMX 433-WMX 4325, ISO Code: DNMX 15 04 12-WMX 4325, 55 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K/P
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, DNMX Insert, D-55 deg Diamond, 6 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.1874 in Thickness, 0.6103 in Length, WMX Chipbreaker, 0.0468 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: 4325, ANSI Code: DNMX 433-WMX 4325, ISO Code: DNMX 15 04 12-WMX 4325, 55 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K/P
Alternate Catalog Number DNMX 433-WMX 4325 ANSI Code DNMX 433-WMX 4325 Catalog Number 6266002 Corner Radius 0.0468 in Country of Origin SE Finish MTCVD Coated Gross Weight Per Pack 0.0200 lb Hand of Insert Neutral Hole Diameter 0.2029 in Included Angle 55 deg ISO Code DNMX 15 04 12-WMX 4325 Item Group 112 Length 0.6103 in Relief Angle 0 deg Series T-Max® P Thickness 0.1874 in Type Negative Basic Shape UPC 11 69826275255 Width WMX Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker WMX Cutting Direction Neutral For Use On Cast Iron and Steel Inscribed Circle 1/2 in Insert Size D - 55 deg Diamond Insert Style DNMX Manufacturer's Grade 4325 Material Carbide Material Grade K/P Maximum Depth of Cut 6 mm Rake Negative Seat Size 15 Shape D-55 deg Diamond Straight hole and non-flat surface clamping interface 2-side cutting +/-0.13 mm THK and +/-0.08 mm inscribed circle tolerance ER treated cutting edge Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials For external turning operations and internal machining Wiper technology for high feed machining Improved machining economy Excellent surface finish Eliminate expensive grinding operations Undisturbed production Less need for supervision 0.2 - 0.75 mm/r cutting feed 20 life cycle state
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | DNMX 433-WMX 4325 |
| ANSI Code | DNMX 433-WMX 4325 |
| Catalog Number | 6266002 |
| Corner Radius | 0.0468 in |
| Country of Origin | SE |
| Finish | MTCVD Coated |
| Gross Weight Per Pack | 0.0200 lb |
| Hand of Insert | Neutral |
| Hole Diameter | 0.2029 in |
| Included Angle | 55 deg |
| ISO Code | DNMX 15 04 12-WMX 4325 |
| Item Group | 112 |
| Length | 0.6103 in |
| Relief Angle | 0 deg |
| Series | T-Max® P |
| Thickness | 0.1874 in |
| Type | Negative Basic Shape |
| UPC 11 | 69826275255 |
| Width | WMX |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | WMX |
| Cutting Direction | Neutral |
| For Use On | Cast Iron and Steel |
| Inscribed Circle | 1/2 in |
| Insert Size | D - 55 deg Diamond |
| Insert Style | DNMX |
| Manufacturer's Grade | 4325 |
| Material | Carbide |
| Material Grade | K/P |
| Maximum Depth of Cut | 6 mm |
| Rake | Negative |
| Seat Size | 15 |
| Shape | D-55 deg Diamond |
| Straight hole and non-flat surface clamping interface |
| 2-side cutting |
| +/-0.13 mm THK and +/-0.08 mm inscribed circle tolerance |
| ER treated cutting edge |
| Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials |
| For external turning operations and internal machining |
| Wiper technology for high feed machining |
| Improved machining economy |
| Excellent surface finish |
| Eliminate expensive grinding operations |
| Undisturbed production |
| Less need for supervision |
| 0.2 - 0.75 mm/r cutting feed |
| 20 life cycle state |
