Sandvik Coromant 6265998 T-Max® P Negative Basic Shape Turning Insert, CNMG 433-WMX 4325, C-80 deg Diamond, CNMG Insert

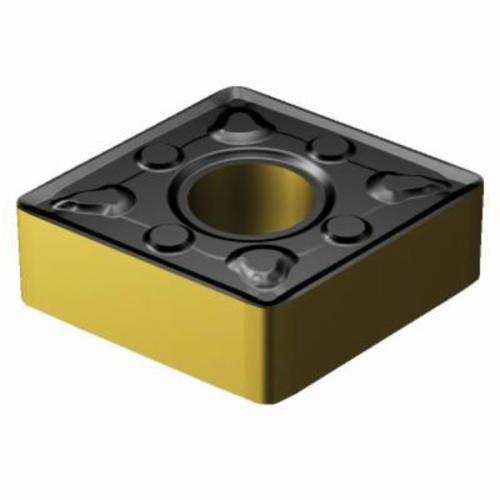

Custom_Product_Images_Illustration
Sandvik Coromant 6265998 T-Max® P Negative Basic Shape Turning Insert, CNMG 433-WMX 4325, C-80 deg Diamond, CNMG Insert
SKU1182657
MFGR #6265998
$/ea
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, CNMG Insert, C-80 deg Diamond, 6 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.1874 in Thickness, 0.5077 in Length, WMX Chipbreaker, 0.0468 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: 4325, ANSI Code: CNMG 433-WMX 4325, ISO Code: CNMG 12 04 12-WMX 4325, 80 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K/P
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, CNMG Insert, C-80 deg Diamond, 6 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.1874 in Thickness, 0.5077 in Length, WMX Chipbreaker, 0.0468 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: 4325, ANSI Code: CNMG 433-WMX 4325, ISO Code: CNMG 12 04 12-WMX 4325, 80 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K/P
Alternate Catalog Number CNMG 433-WMX 4325 ANSI Code CNMG 433-WMX 4325 Catalog Number 6265998 Corner Radius 0.047 in Country of Origin SE Finish CVD-TiCN+Al2O3+TiN Coated Gross Weight Per Pack 0.2200 lb Hole Diameter 0.203 in Included Angle 80 ° ISO Code CNMG 12 04 12-WMX 4325 Item Group 112 Relief Angle 0 ° Series T-Max® P Thickness 0.187 in UPC 11 69826274949 UPC 12 69826274949 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker WMX Cutting Direction Neutral For Use On Cast Iron and Steel Inscribed Circle 1/2 in Insert Size 433 Insert Style CNMG Manufacturer's Grade 4325 Material Carbide Material Grade K, P Maximum Depth of Cut 0.236 in Rake Negative Seat Size 12 Shape Rhombic Straight hole and non-flat surface clamping interface 2-side cutting +/-0.13 mm THK and +/-0.08 mm inscribed circle tolerance ER treated cutting edge Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials For external turning operations and internal machining Wiper technology for high feed machining Improved machining economy Excellent surface finish Eliminate expensive grinding operations Undisturbed production Less need for supervision 0.2 - 0.75 mm/r cutting feed 20 life cycle state
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | CNMG 433-WMX 4325 |
| ANSI Code | CNMG 433-WMX 4325 |
| Catalog Number | 6265998 |
| Corner Radius | 0.047 in |
| Country of Origin | SE |
| Finish | CVD-TiCN+Al2O3+TiN Coated |
| Gross Weight Per Pack | 0.2200 lb |
| Hole Diameter | 0.203 in |
| Included Angle | 80 ° |
| ISO Code | CNMG 12 04 12-WMX 4325 |
| Item Group | 112 |
| Relief Angle | 0 ° |
| Series | T-Max® P |
| Thickness | 0.187 in |
| UPC 11 | 69826274949 |
| UPC 12 | 69826274949 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | WMX |
| Cutting Direction | Neutral |
| For Use On | Cast Iron and Steel |
| Inscribed Circle | 1/2 in |
| Insert Size | 433 |
| Insert Style | CNMG |
| Manufacturer's Grade | 4325 |
| Material | Carbide |
| Material Grade | K, P |
| Maximum Depth of Cut | 0.236 in |
| Rake | Negative |
| Seat Size | 12 |
| Shape | Rhombic |
| Straight hole and non-flat surface clamping interface |
| 2-side cutting |
| +/-0.13 mm THK and +/-0.08 mm inscribed circle tolerance |
| ER treated cutting edge |
| Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials |
| For external turning operations and internal machining |
| Wiper technology for high feed machining |
| Improved machining economy |
| Excellent surface finish |
| Eliminate expensive grinding operations |
| Undisturbed production |
| Less need for supervision |
| 0.2 - 0.75 mm/r cutting feed |
| 20 life cycle state |
