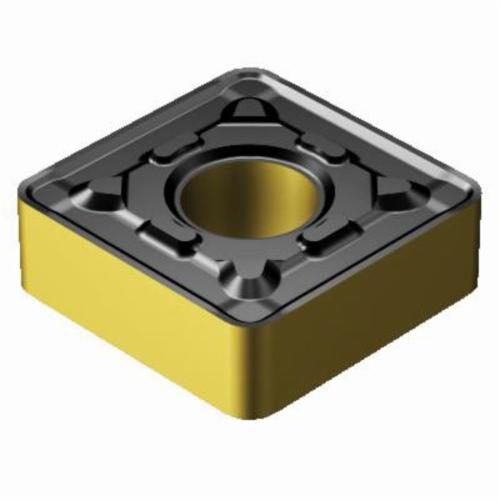

Sandvik Coromant 6265962 T-Max® P Negative Basic Shape Turning Insert, SNMG 646-PR 4325, S-Square, SNMG Insert, 4325
Custom_Product_Images_Illustration
Sandvik Coromant 6265962 T-Max® P Negative Basic Shape Turning Insert, SNMG 646-PR 4325, S-Square, SNMG Insert, 4325
SKU1209275
MFGR #6265962
Your Cost: $36.74/ea
List: Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, SNMG Insert, S-Square, 10 mm Maximum Depth of Cut, 3/4 in Inscribed Circle, 1/4 in Thickness, 3/4 in Length, PR Chipbreaker, 0.0937 in Corner Radius, 0.312 in Hole Dia, Manufacturer's Grade: 4325, ANSI Code: SNMG 646-PR 4325, ISO Code: SNMG 19 06 24-PR 4325, 90 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K/P
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, SNMG Insert, S-Square, 10 mm Maximum Depth of Cut, 3/4 in Inscribed Circle, 1/4 in Thickness, 3/4 in Length, PR Chipbreaker, 0.0937 in Corner Radius, 0.312 in Hole Dia, Manufacturer's Grade: 4325, ANSI Code: SNMG 646-PR 4325, ISO Code: SNMG 19 06 24-PR 4325, 90 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K/P
Alternate Catalog Number SNMG 646-PR 4325 ANSI Code SNMG 646-PR 4325 Catalog Number 6265962 Corner Radius 0.0937 in Country of Origin SE Finish MTCVD Coated Gross Weight Per Pack 0.0600 lb Hand of Insert Neutral Hole Diameter 0.312 in Included Angle 90 deg ISO Code SNMG 19 06 24-PR 4325 Item Group 112 Length 3/4 in Relief Angle 0 deg Series T-Max® P Thickness 1/4 in Type Negative Basic Shape UPC 11 69826275850 UPC 12 69826275850 Width PR Width UOM in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker PR Cutting Direction Neutral For Use On Cast Iron and Steel Inscribed Circle 3/4 in Insert Size SNMG Insert Style SNMG Manufacturer's Grade 4325 Material Carbide Material Grade K/P Maximum Depth of Cut 10 mm Rake Negative Seat Size 19 Shape S-Square Straight hole and non-flat surface clamping interface 2-side cutting +/-0.13 mm THK and +/-0.10 mm inscribed circle tolerance ER treated cutting edge Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials For external turning operations and internal machining 0.32 - 0.9 mm/r cutting feed 20 life cycle state
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | SNMG 646-PR 4325 |
| ANSI Code | SNMG 646-PR 4325 |
| Catalog Number | 6265962 |
| Corner Radius | 0.0937 in |
| Country of Origin | SE |
| Finish | MTCVD Coated |
| Gross Weight Per Pack | 0.0600 lb |
| Hand of Insert | Neutral |
| Hole Diameter | 0.312 in |
| Included Angle | 90 deg |
| ISO Code | SNMG 19 06 24-PR 4325 |
| Item Group | 112 |
| Length | 3/4 in |
| Relief Angle | 0 deg |
| Series | T-Max® P |
| Thickness | 1/4 in |
| Type | Negative Basic Shape |
| UPC 11 | 69826275850 |
| UPC 12 | 69826275850 |
| Width | PR |
| Width UOM | in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | PR |
| Cutting Direction | Neutral |
| For Use On | Cast Iron and Steel |
| Inscribed Circle | 3/4 in |
| Insert Size | SNMG |
| Insert Style | SNMG |
| Manufacturer's Grade | 4325 |
| Material | Carbide |
| Material Grade | K/P |
| Maximum Depth of Cut | 10 mm |
| Rake | Negative |
| Seat Size | 19 |
| Shape | S-Square |
| Straight hole and non-flat surface clamping interface |
| 2-side cutting |
| +/-0.13 mm THK and +/-0.10 mm inscribed circle tolerance |
| ER treated cutting edge |
| Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials |
| For external turning operations and internal machining |
| 0.32 - 0.9 mm/r cutting feed |
| 20 life cycle state |
