Sandvik Coromant

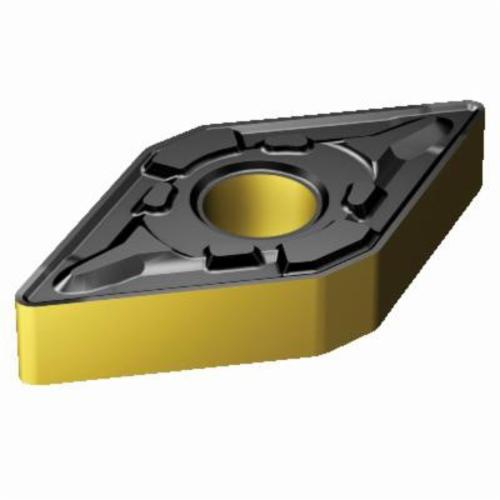

Sandvik Coromant 6265947 T-Max® P Negative Basic Shape Turning Insert, DNMG 542-PR 4325, D-55 deg Diamond, DNMG Insert, 4325
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 6265947 T-Max® P Negative Basic Shape Turning Insert, DNMG 542-PR 4325, D-55 deg Diamond, DNMG Insert, 4325
SKU1139658
MFGR #6265947
Your Cost: $31.99/ea
List: Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, DNMG Insert, D-55 deg Diamond, 8 mm Maximum Depth of Cut, 5/8 in Inscribed Circle, 1/4 in Thickness, 0.7629 in Length, PR Chipbreaker, 0.0312 in Corner Radius, 1/4 in Hole Dia, Manufacturer's Grade: 4325, ANSI Code: DNMG 542-PR 4325, ISO Code: DNMG 19 06 08-PR 4325, 55 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K/P
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, DNMG Insert, D-55 deg Diamond, 8 mm Maximum Depth of Cut, 5/8 in Inscribed Circle, 1/4 in Thickness, 0.7629 in Length, PR Chipbreaker, 0.0312 in Corner Radius, 1/4 in Hole Dia, Manufacturer's Grade: 4325, ANSI Code: DNMG 542-PR 4325, ISO Code: DNMG 19 06 08-PR 4325, 55 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K/P
Alternate Catalog Number DNMG 542-PR 4325 ANSI Code DNMG 542-PR 4325 Catalog Number 6265947 Corner Radius 0.0312 in Country of Origin SE Finish MTCVD Coated Gross Weight Per Pack 0.0500 lb Hand of Insert Neutral Hole Diameter 1/4 in Included Angle 55 deg ISO Code DNMG 19 06 08-PR 4325 Item Group 112 Length 0.7629 in Relief Angle 0 deg Series T-Max® P Thickness 1/4 in Type Negative Basic Shape UPC 11 69826275246 UPC 12 69826275246 Width PR Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker PR Cutting Direction Neutral For Use On Cast Iron and Steel Inscribed Circle 5/8 in Insert Size D - 55 deg Diamond Insert Style DNMG Manufacturer's Grade 4325 Material Carbide Material Grade K/P Maximum Depth of Cut 8 mm Rake Negative Seat Size 19 Shape D-55 deg Diamond Straight hole and non-flat surface clamping interface 2-side cutting +/-0.13 mm THK and +/-0.10 mm inscribed circle tolerance ER treated cutting edge Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials For external turning operations and internal machining 0.2 - 0.5 mm/r cutting feed 20 life cycle state
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | DNMG 542-PR 4325 |
| ANSI Code | DNMG 542-PR 4325 |
| Catalog Number | 6265947 |
| Corner Radius | 0.0312 in |
| Country of Origin | SE |
| Finish | MTCVD Coated |
| Gross Weight Per Pack | 0.0500 lb |
| Hand of Insert | Neutral |
| Hole Diameter | 1/4 in |
| Included Angle | 55 deg |
| ISO Code | DNMG 19 06 08-PR 4325 |
| Item Group | 112 |
| Length | 0.7629 in |
| Relief Angle | 0 deg |
| Series | T-Max® P |
| Thickness | 1/4 in |
| Type | Negative Basic Shape |
| UPC 11 | 69826275246 |
| UPC 12 | 69826275246 |
| Width | PR |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | PR |
| Cutting Direction | Neutral |
| For Use On | Cast Iron and Steel |
| Inscribed Circle | 5/8 in |
| Insert Size | D - 55 deg Diamond |
| Insert Style | DNMG |
| Manufacturer's Grade | 4325 |
| Material | Carbide |
| Material Grade | K/P |
| Maximum Depth of Cut | 8 mm |
| Rake | Negative |
| Seat Size | 19 |
| Shape | D-55 deg Diamond |
| Straight hole and non-flat surface clamping interface |
| 2-side cutting |
| +/-0.13 mm THK and +/-0.10 mm inscribed circle tolerance |
| ER treated cutting edge |
| Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials |
| For external turning operations and internal machining |
| 0.2 - 0.5 mm/r cutting feed |
| 20 life cycle state |
