Sandvik Coromant

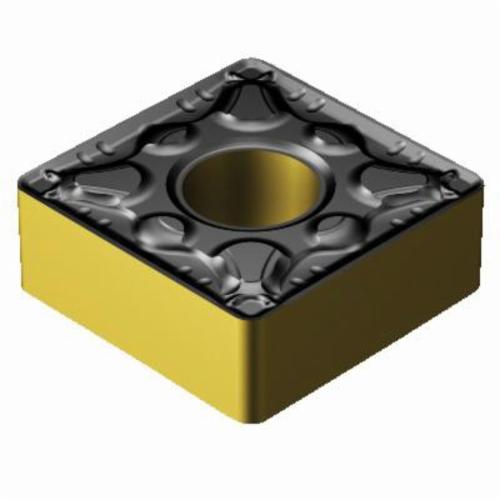

Sandvik Coromant 6265903 T-Max® P Negative Basic Shape Turning Insert, SNMG 322-PM 4325, S-Square, SNMG Insert, 4325, Carbide
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 6265903 T-Max® P Negative Basic Shape Turning Insert, SNMG 322-PM 4325, S-Square, SNMG Insert, 4325, Carbide
SKU1230188
MFGR #6265903
Your Cost: $10.91/ea
List: Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, SNMG Insert, S-Square, 4.5 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 1/8 in Thickness, 3/8 in Length, PM Chipbreaker, 0.0312 in Corner Radius, 0.15 in Hole Dia, Manufacturer's Grade: 4325, ANSI Code: SNMG 322-PM 4325, ISO Code: SNMG 09 03 08-PM 4325, 90 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K/P
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, SNMG Insert, S-Square, 4.5 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 1/8 in Thickness, 3/8 in Length, PM Chipbreaker, 0.0312 in Corner Radius, 0.15 in Hole Dia, Manufacturer's Grade: 4325, ANSI Code: SNMG 322-PM 4325, ISO Code: SNMG 09 03 08-PM 4325, 90 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K/P
Alternate Catalog Number SNMG 322-PM 4325 ANSI Code SNMG 322-PM 4325 Catalog Number 6265903 Corner Radius 0.0312 in Country of Origin SE Finish MTCVD Coated Gross Weight Per Pack 0.0100 lb Hand of Insert Neutral Hole Diameter 0.15 in Included Angle 90 deg ISO Code SNMG 09 03 08-PM 4325 Item Group 112 Length 3/8 in Relief Angle 0 deg Series T-Max® P Thickness 1/8 in Type Negative Basic Shape UPC 11 69826275817 Width PM Width UOM IN Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker PM Cutting Direction Neutral For Use On Cast Iron and Steel Inscribed Circle 3/8 in Insert Size S - Square Insert Style SNMG Manufacturer's Grade 4325 Material Carbide Material Grade K/P Maximum Depth of Cut 4.5 mm Rake Negative Seat Size 09 Shape S-Square Straight hole and non-flat surface clamping interface 2-side cutting +/-0.13 mm THK and +/-0.05 mm inscribed circle tolerance ER treated cutting edge Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials For external turning operations and internal machining 0.15 - 0.5 mm/r cutting feed 20 life cycle state
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | SNMG 322-PM 4325 |
| ANSI Code | SNMG 322-PM 4325 |
| Catalog Number | 6265903 |
| Corner Radius | 0.0312 in |
| Country of Origin | SE |
| Finish | MTCVD Coated |
| Gross Weight Per Pack | 0.0100 lb |
| Hand of Insert | Neutral |
| Hole Diameter | 0.15 in |
| Included Angle | 90 deg |
| ISO Code | SNMG 09 03 08-PM 4325 |
| Item Group | 112 |
| Length | 3/8 in |
| Relief Angle | 0 deg |
| Series | T-Max® P |
| Thickness | 1/8 in |
| Type | Negative Basic Shape |
| UPC 11 | 69826275817 |
| Width | PM |
| Width UOM | IN |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | PM |
| Cutting Direction | Neutral |
| For Use On | Cast Iron and Steel |
| Inscribed Circle | 3/8 in |
| Insert Size | S - Square |
| Insert Style | SNMG |
| Manufacturer's Grade | 4325 |
| Material | Carbide |
| Material Grade | K/P |
| Maximum Depth of Cut | 4.5 mm |
| Rake | Negative |
| Seat Size | 09 |
| Shape | S-Square |
| Straight hole and non-flat surface clamping interface |
| 2-side cutting |
| +/-0.13 mm THK and +/-0.05 mm inscribed circle tolerance |
| ER treated cutting edge |
| Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials |
| For external turning operations and internal machining |
| 0.15 - 0.5 mm/r cutting feed |
| 20 life cycle state |
