Sandvik Coromant

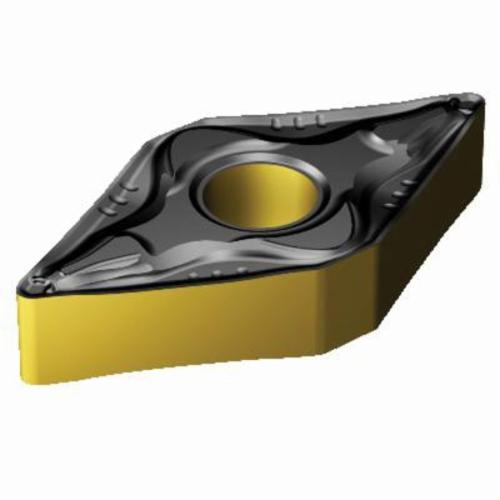

Sandvik Coromant 6265892 T-Max® P Negative Basic Shape Turning Insert, DNMG 331-PM 4325, D-55 deg Diamond, DNMG Insert
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 6265892 T-Max® P Negative Basic Shape Turning Insert, DNMG 331-PM 4325, D-55 deg Diamond, DNMG Insert
SKU1239284
MFGR #6265892
Your Cost: $17.49/ea
List: Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, DNMG Insert, D-55 deg Diamond, 5 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.1874 in Thickness, 0.4577 in Length, PM Chipbreaker, 0.0156 in Corner Radius, 0.15 in Hole Dia, Manufacturer's Grade: 4325, ANSI Code: DNMG 331-PM 4325, ISO Code: DNMG 11 04 04-PM 4325, 55 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K/P
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, DNMG Insert, D-55 deg Diamond, 5 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.1874 in Thickness, 0.4577 in Length, PM Chipbreaker, 0.0156 in Corner Radius, 0.15 in Hole Dia, Manufacturer's Grade: 4325, ANSI Code: DNMG 331-PM 4325, ISO Code: DNMG 11 04 04-PM 4325, 55 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K/P
Alternate Catalog Number DNMG 331-PM 4325 ANSI Code DNMG 331-PM 4325 Catalog Number 6265892 Corner Radius 0.0156 in Country of Origin SE Finish CVD-TiCN+Al2O3+TiN Coated Gross Weight Per Pack 0.1600 lb Hole Diameter 0.15 in Included Angle 55 ° ISO Code DNMG 11 04 04-PM 4325 Item Group 112 Relief Angle 0 ° Series T-Max® P Thickness 0.1874 in UPC 11 69826275213 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker PM Cutting Direction Neutral For Use On Cast Iron and Steel Inscribed Circle 3/8 in Insert Size 331 Insert Style DNMG Manufacturer's Grade 4325 Material Carbide Material Grade K, P Maximum Depth of Cut 0.197 in Rake Negative Seat Size 11 Shape Rhombic Straight hole and non-flat surface clamping interface 2-side cutting +/-0.13 mm THK and +/-0.05 mm inscribed circle tolerance ER treated cutting edge Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials For external turning operations and internal machining 0.1 - 0.3 mm/r cutting feed 20 life cycle state
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | DNMG 331-PM 4325 |
| ANSI Code | DNMG 331-PM 4325 |
| Catalog Number | 6265892 |
| Corner Radius | 0.0156 in |
| Country of Origin | SE |
| Finish | CVD-TiCN+Al2O3+TiN Coated |
| Gross Weight Per Pack | 0.1600 lb |
| Hole Diameter | 0.15 in |
| Included Angle | 55 ° |
| ISO Code | DNMG 11 04 04-PM 4325 |
| Item Group | 112 |
| Relief Angle | 0 ° |
| Series | T-Max® P |
| Thickness | 0.1874 in |
| UPC 11 | 69826275213 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | PM |
| Cutting Direction | Neutral |
| For Use On | Cast Iron and Steel |
| Inscribed Circle | 3/8 in |
| Insert Size | 331 |
| Insert Style | DNMG |
| Manufacturer's Grade | 4325 |
| Material | Carbide |
| Material Grade | K, P |
| Maximum Depth of Cut | 0.197 in |
| Rake | Negative |
| Seat Size | 11 |
| Shape | Rhombic |
| Straight hole and non-flat surface clamping interface |
| 2-side cutting |
| +/-0.13 mm THK and +/-0.05 mm inscribed circle tolerance |
| ER treated cutting edge |
| Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials |
| For external turning operations and internal machining |
| 0.1 - 0.3 mm/r cutting feed |
| 20 life cycle state |
