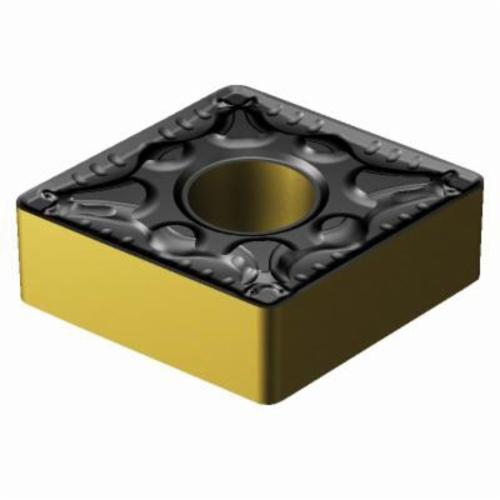

Sandvik Coromant 6265880 T-Max® P Negative Basic Shape Turning Insert, CNMG 321-PM 4325, C-80 deg Diamond, CNMG Insert
Custom_Product_Images_Illustration
Sandvik Coromant 6265880 T-Max® P Negative Basic Shape Turning Insert, CNMG 321-PM 4325, C-80 deg Diamond, CNMG Insert
SKU1239965
MFGR #6265880
Your Cost: $10.91/ea
List: Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, CNMG Insert, C-80 deg Diamond, 4 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 1/8 in Thickness, 0.3807 in Length, PM Chipbreaker, 0.0156 in Corner Radius, 0.15 in Hole Dia, Manufacturer's Grade: 4325, ANSI Code: CNMG 321-PM 4325, ISO Code: CNMG 09 03 04-PM 4325, 80 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K/P
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, CNMG Insert, C-80 deg Diamond, 4 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 1/8 in Thickness, 0.3807 in Length, PM Chipbreaker, 0.0156 in Corner Radius, 0.15 in Hole Dia, Manufacturer's Grade: 4325, ANSI Code: CNMG 321-PM 4325, ISO Code: CNMG 09 03 04-PM 4325, 80 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K/P
Alternate Catalog Number CNMG 321-PM 4325 ANSI Code CNMG 321-PM 4325 Catalog Number 6265880 Corner Radius 0.016 in Country of Origin SE Finish CVD-TiCN+Al2O3+TiN Coated Gross Weight Per Pack 9.9400 lb Hole Diameter 0.15 in Included Angle 80 ° ISO Code CNMG 09 03 04-PM 4325 Item Group 112 Relief Angle 0 ° Series T-Max® P Thickness 1/8 in UPC 11 69826274924 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker PM Cutting Direction Neutral For Use On Cast Iron and Steel Inscribed Circle 3/8 in Insert Size 321 Insert Style CNMG Manufacturer's Grade 4325 Material Carbide Material Grade K, P Maximum Depth of Cut 0.157 in Rake Negative Seat Size 09 Shape Rhombic Straight hole and non-flat surface clamping interface 2-side cutting +/-0.13 mm THK and +/-0.05 mm inscribed circle tolerance ER treated cutting edge Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials For external turning operations and internal machining 0.1 - 0.3 mm/r cutting feed 20 life cycle state
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | CNMG 321-PM 4325 |
| ANSI Code | CNMG 321-PM 4325 |
| Catalog Number | 6265880 |
| Corner Radius | 0.016 in |
| Country of Origin | SE |
| Finish | CVD-TiCN+Al2O3+TiN Coated |
| Gross Weight Per Pack | 9.9400 lb |
| Hole Diameter | 0.15 in |
| Included Angle | 80 ° |
| ISO Code | CNMG 09 03 04-PM 4325 |
| Item Group | 112 |
| Relief Angle | 0 ° |
| Series | T-Max® P |
| Thickness | 1/8 in |
| UPC 11 | 69826274924 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | PM |
| Cutting Direction | Neutral |
| For Use On | Cast Iron and Steel |
| Inscribed Circle | 3/8 in |
| Insert Size | 321 |
| Insert Style | CNMG |
| Manufacturer's Grade | 4325 |
| Material | Carbide |
| Material Grade | K, P |
| Maximum Depth of Cut | 0.157 in |
| Rake | Negative |
| Seat Size | 09 |
| Shape | Rhombic |
| Straight hole and non-flat surface clamping interface |
| 2-side cutting |
| +/-0.13 mm THK and +/-0.05 mm inscribed circle tolerance |
| ER treated cutting edge |
| Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials |
| For external turning operations and internal machining |
| 0.1 - 0.3 mm/r cutting feed |
| 20 life cycle state |
