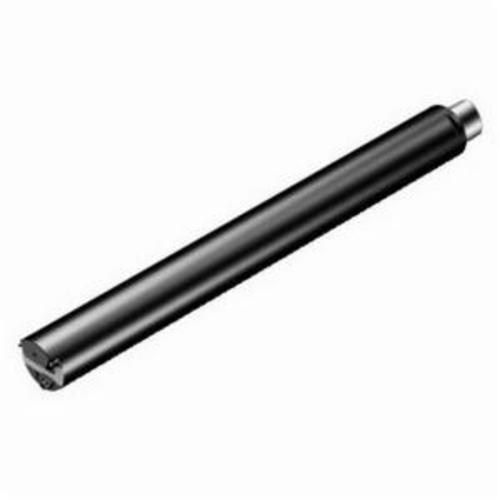

Sandvik Coromant 6264629 Coromant® Capto® to CoroTurn® SL Quick-Change Dampened Boring Bar Adapter, 40.7677 in OAL, Neutral
Custom_Product_Images_Illustration
Sandvik Coromant 6264629 Coromant® Capto® to CoroTurn® SL Quick-Change Dampened Boring Bar Adapter, 40.7677 in OAL, Neutral
SKU1229457
MFGR #6264629
Your Cost: $20,041.92/ea
Sandvik Coromant Boring Bar Adapter, Coromant® Capto® to CoroTurn® SL Quick-Change Dampened, 40.7677 in Overall Length, 3.937 in Shank Dia, Neutral Cutting, Steel
Sandvik Coromant Boring Bar Adapter, Coromant® Capto® to CoroTurn® SL Quick-Change Dampened, 40.7677 in Overall Length, 3.937 in Shank Dia, Neutral Cutting, Steel
Alternate Catalog Number C10-570-3C100955-80 ANSI Code C10-570-3C100955-80 Body Diameter Workpiece Side 3.937 Catalog Number 6264629 Country of Origin NO Cutting Direction Neutral Finish Coromant® Capto® to CoroTurn® SL Quick Change, Dampened Gage Length 37.598 Gross Weight Per Pack 122.76000 lb Insert Screw 1035.5 mm ISO Code C10-570-3C100955-80 Item Group 410 Material Steel Maximum Bore Depth Steel Maximum Bore Diameter 100 mm Minimum Bore Diameter Coromant® Capto® to CoroTurn® SL Quick Change, Dampened Overall Length 40.7677 in Shank Diameter Workpiece Side 3.937 Type Coromant® Capto® to CoroTurn® SL Quick-Change Dampened UPC 11 69826267727 Width Offset 100 mm Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Connection Size C10 x 100 mm Connection Type Coromant® Capto® x CoroTurn® SL Series 5762684 Clamp, 5762755 Clamp Set, 5762920 Screw Set, 5764304 Nozzle, 6563381 Screw, 6764666 Key Adaptor and 6795235 Pin Shank Diameter 3.937 in Bolt and segment clamping machine side adaptive interface Quick change workpiece side adaptive interface 0 deg body workpiece side 100 mm Dia body 0 deg body half taper Axial concentric and radial coolant entry 70 bar coolant Axial concentric coolant exit 100 mm Dia workpiece side connection 100 mm Dia tool changer interference maximum 955 mm L body 955 mm L functional 955 mm L protruding 955 - 955 mm overhang Cx-570-3C80 tool style 20 life cycle state ANSI Code: C10-570-3C100955-80 ISO Code: C10-570-3C100955-80
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | C10-570-3C100955-80 |
| ANSI Code | C10-570-3C100955-80 |
| Body Diameter Workpiece Side | 3.937 |
| Catalog Number | 6264629 |
| Country of Origin | NO |
| Cutting Direction | Neutral |
| Finish | Coromant® Capto® to CoroTurn® SL Quick Change, Dampened |
| Gage Length | 37.598 |
| Gross Weight Per Pack | 122.76000 lb |
| Insert Screw | 1035.5 mm |
| ISO Code | C10-570-3C100955-80 |
| Item Group | 410 |
| Material | Steel |
| Maximum Bore Depth | Steel |
| Maximum Bore Diameter | 100 mm |
| Minimum Bore Diameter | Coromant® Capto® to CoroTurn® SL Quick Change, Dampened |
| Overall Length | 40.7677 in |
| Shank Diameter Workpiece Side | 3.937 |
| Type | Coromant® Capto® to CoroTurn® SL Quick-Change Dampened |
| UPC 11 | 69826267727 |
| Width Offset | 100 mm |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Connection Size | C10 x 100 mm |
| Connection Type | Coromant® Capto® x CoroTurn® SL |
| Series | 5762684 Clamp, 5762755 Clamp Set, 5762920 Screw Set, 5764304 Nozzle, 6563381 Screw, 6764666 Key Adaptor and 6795235 Pin |
| Shank Diameter | 3.937 in |
| Bolt and segment clamping machine side adaptive interface |
| Quick change workpiece side adaptive interface |
| 0 deg body workpiece side |
| 100 mm Dia body |
| 0 deg body half taper |
| Axial concentric and radial coolant entry |
| 70 bar coolant |
| Axial concentric coolant exit |
| 100 mm Dia workpiece side connection |
| 100 mm Dia tool changer interference maximum |
| 955 mm L body |
| 955 mm L functional |
| 955 mm L protruding |
| 955 - 955 mm overhang |
| Cx-570-3C80 tool style |
| 20 life cycle state |
| ANSI Code: C10-570-3C100955-80 |
| ISO Code: C10-570-3C100955-80 |
