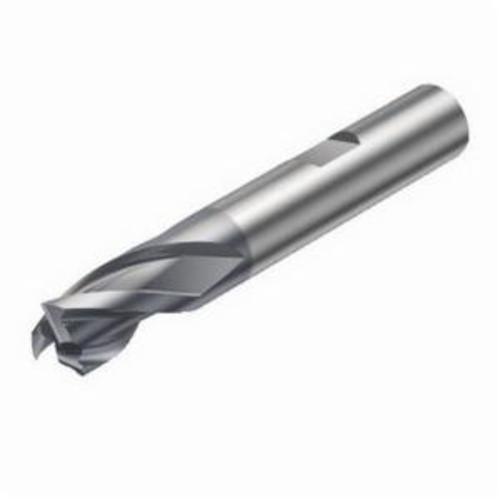

Sandvik Coromant 6259583 CoroMill® Plura Square Shoulder End Mill, 0.157 in, 0.216 in Max Depth of Cut, 3 Flutes, 0.236 in Shank, 2-1/8 in OAL
Custom_Product_Images_Illustration
Sandvik Coromant 6259583 CoroMill® Plura Square Shoulder End Mill, 0.157 in, 0.216 in Max Depth of Cut, 3 Flutes, 0.236 in Shank, 2-1/8 in OAL
SKU1161625
MFGR #6259583
Your Cost: $73.34/ea
Sandvik Coromant Shoulder End Mill, Square, Series: CoroMill® Plura, 0.157 in Cutter Dia, 2-1/8 in Overall Length, 0.216 in Maximum Depth of Cut, 3 Flutes, 0.236 in Shank Dia, Right Hand Cutting, 30 deg Helix Angle, Weldon Flat Shank, ANSI Code: 1P221-0400-XB 1630, ISO Code: 1P221-0400-XB 1630, Solid Carbide, PVD Coated
Sandvik Coromant Shoulder End Mill, Square, Series: CoroMill® Plura, 0.157 in Cutter Dia, 2-1/8 in Overall Length, 0.216 in Maximum Depth of Cut, 3 Flutes, 0.236 in Shank Dia, Right Hand Cutting, 30 deg Helix Angle, Weldon Flat Shank, ANSI Code: 1P221-0400-XB 1630, ISO Code: 1P221-0400-XB 1630, Solid Carbide, PVD Coated
Alternate Catalog Number 1P221-0400-XB 1630 ANSI Code 1P221-0400-XB 1630 Catalog Number 6259583 Country of Origin IT Cutting Direction Right Hand Gross Weight Per Pack 6.1700 lb Helix Angle 30 deg ISO Code 1P221-0400-XB 1630 Item Group 732 Material Solid Carbide Maximum Depth of Cut 0.216 in Series CoroMill® Plura Shank Type Weldon Flat Standards DIN1835-B|DIN6535-HB Type Square UPC 11 69826269027 UPC 12 69826269027 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutter Diameter 0.157 in Finish PVD Coated Length of Cut 0.216 Number of Flutes 3 Overall Length 2-1/8 in Shank Diameter 0.236 in 1630 manufacturer grade 4.8 mm H shank 1 mm maximum working engagement 1 maximum working engagement ratio 30 deg body half taper Center cutting capability 2.24 mm Dia core at face 0.13 mm W corner chamfer 2 cutting length Without coolant entry No coolant exit 3.74 mm Dia cutting face contact SFW (EFW) feed direction Right helix flute hand 9 deg radial rake 5.5 deg axial rake 5 mm L usable 18 mm overhang 90 deg y-axis rot 8 deg ramping
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 1P221-0400-XB 1630 |
| ANSI Code | 1P221-0400-XB 1630 |
| Catalog Number | 6259583 |
| Country of Origin | IT |
| Cutting Direction | Right Hand |
| Gross Weight Per Pack | 6.1700 lb |
| Helix Angle | 30 deg |
| ISO Code | 1P221-0400-XB 1630 |
| Item Group | 732 |
| Material | Solid Carbide |
| Maximum Depth of Cut | 0.216 in |
| Series | CoroMill® Plura |
| Shank Type | Weldon Flat |
| Standards | DIN1835-B|DIN6535-HB |
| Type | Square |
| UPC 11 | 69826269027 |
| UPC 12 | 69826269027 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutter Diameter | 0.157 in |
| Finish | PVD Coated |
| Length of Cut | 0.216 |
| Number of Flutes | 3 |
| Overall Length | 2-1/8 in |
| Shank Diameter | 0.236 in |
| 1630 manufacturer grade |
| 4.8 mm H shank |
| 1 mm maximum working engagement |
| 1 maximum working engagement ratio |
| 30 deg body half taper |
| Center cutting capability |
| 2.24 mm Dia core at face |
| 0.13 mm W corner chamfer |
| 2 cutting length |
| Without coolant entry |
| No coolant exit |
| 3.74 mm Dia cutting face contact |
| SFW (EFW) feed direction |
| Right helix flute hand |
| 9 deg radial rake |
| 5.5 deg axial rake |
| 5 mm L usable |
| 18 mm overhang |
| 90 deg y-axis rot |
| 8 deg ramping |
