Sandvik Coromant

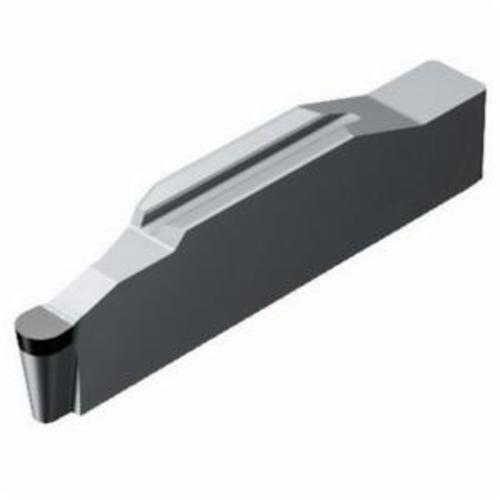

Sandvik Coromant 6256937 CoroCut® 1-2, N123H1-0200-RS, H1N 1.5 N123H1-0200-RS Insert, Carbide, 0.0314 in Max Depth of Cut, N
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 6256937 CoroCut® 1-2, N123H1-0200-RS, H1N 1.5 N123H1-0200-RS Insert, Carbide, 0.0314 in Max Depth of Cut, N
SKU1230531
MFGR #6256937
Your Cost: $310.11/ea
Sandvik Coromant Profiling Insert, Series: CoroCut® 1-2, N123H1-0200-RS Insert, H1N 1.5 Insert, 0.0314 in Maximum Depth of Cut, 0.9862 in Length, RS Chipbreaker, ANSI Code: N123H1-0200-RS, 0.0393 in Corner Radius, Manufacturer's Grade: CD10, Positive Rake, Neutral Hand, Carbide, Uncoated, Material Grade: N
Sandvik Coromant Profiling Insert, Series: CoroCut® 1-2, N123H1-0200-RS Insert, H1N 1.5 Insert, 0.0314 in Maximum Depth of Cut, 0.9862 in Length, RS Chipbreaker, ANSI Code: N123H1-0200-RS, 0.0393 in Corner Radius, Manufacturer's Grade: CD10, Positive Rake, Neutral Hand, Carbide, Uncoated, Material Grade: N
Alternate Catalog Number N123H1-0200-RS CD10 ANSI Code N123H1-0200-RS Catalog Number 6256937 Corner Radius 0.0393 in Country of Origin PL Finish Uncoated Gross Weight Per Pack 1 lb Hand of Insert Neutral ISO Code N Item Group 630 Length 0.9862 in Maximum Depth of Cut 0.0314 in Relief Angle 7 Series CoroCut® 1-2 Thickness 1 mm Type Uncoated UPC 11 69826273717 Width CD10 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker RS Inscribed Circle RS Insert Size H1N 1.5 Insert Style N123H1-0200-RS Manufacturer's Grade CD10 Material Carbide Material Grade N Rake Positive Shape 0.8 mm 7 deg major clearance 0 deg body 5 mm D maximum cutting ER treated cutting edge Concave clamping interface 2 mm W cutting +/-0.02 mm cutting width tolerance 1-Side cutting +/-0.02 mm corner radius tolerance 90 deg ramping 20 life cycle state ANSI Code: N123H1-0200-RS ISO Code: N123H1-0200-RS
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | N123H1-0200-RS CD10 |
| ANSI Code | N123H1-0200-RS |
| Catalog Number | 6256937 |
| Corner Radius | 0.0393 in |
| Country of Origin | PL |
| Finish | Uncoated |
| Gross Weight Per Pack | 1 lb |
| Hand of Insert | Neutral |
| ISO Code | N |
| Item Group | 630 |
| Length | 0.9862 in |
| Maximum Depth of Cut | 0.0314 in |
| Relief Angle | 7 |
| Series | CoroCut® 1-2 |
| Thickness | 1 mm |
| Type | Uncoated |
| UPC 11 | 69826273717 |
| Width | CD10 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | RS |
| Inscribed Circle | RS |
| Insert Size | H1N 1.5 |
| Insert Style | N123H1-0200-RS |
| Manufacturer's Grade | CD10 |
| Material | Carbide |
| Material Grade | N |
| Rake | Positive |
| Shape | 0.8 mm |
| 7 deg major clearance |
| 0 deg body |
| 5 mm D maximum cutting |
| ER treated cutting edge |
| Concave clamping interface |
| 2 mm W cutting |
| +/-0.02 mm cutting width tolerance |
| 1-Side cutting |
| +/-0.02 mm corner radius tolerance |
| 90 deg ramping |
| 20 life cycle state |
| ANSI Code: N123H1-0200-RS |
| ISO Code: N123H1-0200-RS |
