Sandvik Coromant

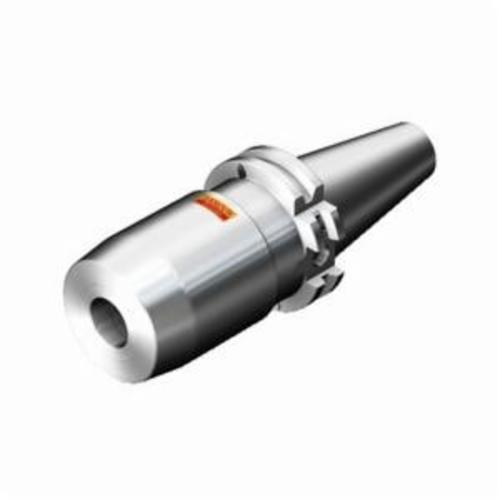

Sandvik Coromant 6255546, CAT-V x CoroChuck™ 930 Shank, 1.2598 in Hole, 2.677 in Nose, 3.031 in Projection
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 6255546, CAT-V x CoroChuck™ 930 Shank, 1.2598 in Hole, 2.677 in Nose, 3.031 in Projection
SKU746707
MFGR #6255546
Your Cost: $1,315.95/ea
Sandvik Coromant Hydraulic Tool Holder and Chuck, CAT-V x CoroChuck™ 930 Shank, CAT-V50 Taper, 1.2598 in Hole Dia, 2.677 in Nose Dia, 3.031 in Projection, 2.007 in Clamping Depth, 7.039 in Overall Length, ANSI Code: 930-V50-HD-32-077, ISO Code: 930-V50-HD-32-077
Sandvik Coromant Hydraulic Tool Holder and Chuck, CAT-V x CoroChuck™ 930 Shank, CAT-V50 Taper, 1.2598 in Hole Dia, 2.677 in Nose Dia, 3.031 in Projection, 2.007 in Clamping Depth, 7.039 in Overall Length, ANSI Code: 930-V50-HD-32-077, ISO Code: 930-V50-HD-32-077
Alternate Catalog Number 930-V50-HD-32-077 ANSI Code 930-V50-HD-32-077 Catalog Number 6255546 Clamping Depth 2.007 in Country of Origin SE Gross Weight Per Pack 9.4200 lb ISO Code 930-V50-HD-32-077 Item Group 540 Overall Length 7.039 in Taper Size CAT-V50 UPC 11 69826274681 UPC 12 69826274681 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Hole Diameter 1.2598 in Nose Diameter 2.677 in Projection 3.031 in Shank Type CAT-V x CoroChuck™ 930 Balanced by design 98.4 mm Dia body 12 deg body half taper Steel body Decentral over flange and axial coolant entry 80 bar coolant Axial concentric coolant exit 12000 r/min 10 Nm torque 930-Vxx-HD (6) tool style 20 life cycle state
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | 930-V50-HD-32-077 |
| ANSI Code | 930-V50-HD-32-077 |
| Catalog Number | 6255546 |
| Clamping Depth | 2.007 in |
| Country of Origin | SE |
| Gross Weight Per Pack | 9.4200 lb |
| ISO Code | 930-V50-HD-32-077 |
| Item Group | 540 |
| Overall Length | 7.039 in |
| Taper Size | CAT-V50 |
| UPC 11 | 69826274681 |
| UPC 12 | 69826274681 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Hole Diameter | 1.2598 in |
| Nose Diameter | 2.677 in |
| Projection | 3.031 in |
| Shank Type | CAT-V x CoroChuck™ 930 |
| Balanced by design |
| 98.4 mm Dia body |
| 12 deg body half taper |
| Steel body |
| Decentral over flange and axial coolant entry |
| 80 bar coolant |
| Axial concentric coolant exit |
| 12000 r/min |
| 10 Nm torque |
| 930-Vxx-HD (6) tool style |
| 20 life cycle state |
