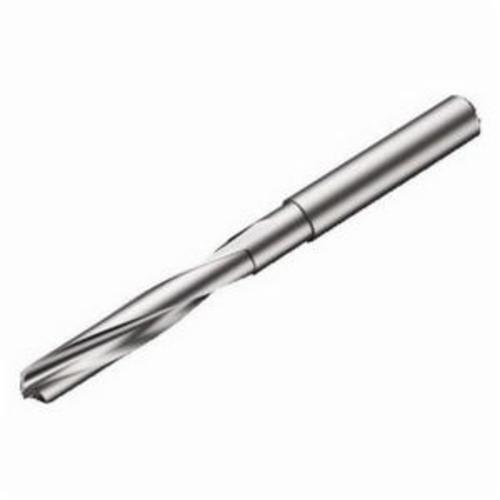

Sandvik Coromant 6253734 CoroDrill® 860 High Performance Screw Machine Drill, 0.2656 in Dia x 4.7637 in L, Solid Carbide, Uncoated
Custom_Product_Images_Illustration
Sandvik Coromant 6253734 CoroDrill® 860 High Performance Screw Machine Drill, 0.2656 in Dia x 4.7637 in L, Solid Carbide, Uncoated
SKU1240497
MFGR #6253734
Your Cost: $375.49/ea
CoroDrill® 860 is a solid carbide drill designed for a fast and problem-free drilling. It maximizes productivity through high metal cutting efficiency and machine utilization. With excellent chip evacuation in long and short chipping materials, CoroDrill 860 provides green light machining at high penetration rates. the CoroDrill 860 product offer consists of three drill geometries - optimized for steel, stainless steel and aluminium. the drill comes in lengths 3 - 8xD as standard. Extended assortment is available as Tailor Made.
CoroDrill® 860 is a solid carbide drill designed for a fast and problem-free drilling. It maximizes productivity through high metal cutting efficiency and machine utilization. With excellent chip evacuation in long and short chipping materials, CoroDrill 860 provides green light machining at high penetration rates. the CoroDrill 860 product offer consists of three drill geometries - optimized for steel, stainless steel and aluminium. the drill comes in lengths 3 - 8xD as standard. Extended assortment is available as Tailor Made.
Alternate Catalog Number 860.1-0675-054A1-NM H10F Applicable Materials Steel, Stainless Steel and Aluminum Catalog Number 6253734 Country of Origin FR Cutting Depth 8XD Cutting Direction Right Hand Diameter 0.2656 in Flute Length 3.1496 in Flute Type SSK Gross Weight Per Pack 0.1300 lb Item Group 721 Number of Flutes 2 Point Angle 130 deg Point Type Split Series CoroDrill® 860 Shank Size 0.3149 in Shank Type Cylinder Standards DIN1835-A, DIN6535-HA Type High Performance UPC 11 69826271711 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Finish Uncoated Material Solid Carbide Overall Length 4.7637 in H10F manufacturer grade 0 deg body half taper Axial concentric coolant entry on circle 20 bar coolant Axial concentric coolant exit on circle EFW feed direction 8.52 deg orthogonal rake 12.733 deg helix flute 85 mm L body 120.1 mm L functional 36 mm L clamping 54.9 mm L usable 3 maximum regrinds 0.9 mm L point 3 mm L regrind 22645 r/min H6 connection diameter tolerance H7 achievable hole tolerance N material grade 860.1..A1-NM (8xD) tool style
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | 860.1-0675-054A1-NM H10F |
| Applicable Materials | Steel, Stainless Steel and Aluminum |
| Catalog Number | 6253734 |
| Country of Origin | FR |
| Cutting Depth | 8XD |
| Cutting Direction | Right Hand |
| Diameter | 0.2656 in |
| Flute Length | 3.1496 in |
| Flute Type | SSK |
| Gross Weight Per Pack | 0.1300 lb |
| Item Group | 721 |
| Number of Flutes | 2 |
| Point Angle | 130 deg |
| Point Type | Split |
| Series | CoroDrill® 860 |
| Shank Size | 0.3149 in |
| Shank Type | Cylinder |
| Standards | DIN1835-A, DIN6535-HA |
| Type | High Performance |
| UPC 11 | 69826271711 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Finish | Uncoated |
| Material | Solid Carbide |
| Overall Length | 4.7637 in |
| H10F manufacturer grade |
| 0 deg body half taper |
| Axial concentric coolant entry on circle |
| 20 bar coolant |
| Axial concentric coolant exit on circle |
| EFW feed direction |
| 8.52 deg orthogonal rake |
| 12.733 deg helix flute |
| 85 mm L body |
| 120.1 mm L functional |
| 36 mm L clamping |
| 54.9 mm L usable |
| 3 maximum regrinds |
| 0.9 mm L point |
| 3 mm L regrind |
| 22645 r/min |
| H6 connection diameter tolerance |
| H7 achievable hole tolerance |
| N material grade |
| 860.1..A1-NM (8xD) tool style |
