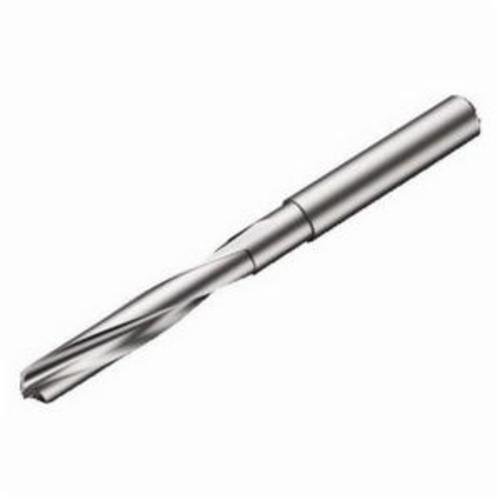

Sandvik Coromant 6253702 CoroDrill® 860 High Performance Screw Machine Drill, 0.4055 in Dia x 6.7322 in L, Solid Carbide, Uncoated
Custom_Product_Images_Illustration
Sandvik Coromant 6253702 CoroDrill® 860 High Performance Screw Machine Drill, 0.4055 in Dia x 6.7322 in L, Solid Carbide, Uncoated
SKU1240056
MFGR #6253702
Your Cost: $617.82/ea
CoroDrill® 860 is a solid carbide drill designed for a fast and problem-free drilling. It maximizes productivity through high metal cutting efficiency and machine utilization. With excellent chip evacuation in long and short chipping materials, CoroDrill 860 provides green light machining at high penetration rates. the CoroDrill 860 product offer consists of three drill geometries - optimized for steel, stainless steel and aluminium. the drill comes in lengths 3 - 8xD as standard. Extended assortment is available as Tailor Made.
CoroDrill® 860 is a solid carbide drill designed for a fast and problem-free drilling. It maximizes productivity through high metal cutting efficiency and machine utilization. With excellent chip evacuation in long and short chipping materials, CoroDrill 860 provides green light machining at high penetration rates. the CoroDrill 860 product offer consists of three drill geometries - optimized for steel, stainless steel and aluminium. the drill comes in lengths 3 - 8xD as standard. Extended assortment is available as Tailor Made.
Alternate Catalog Number 860.1-1030-082A1-NM H10F Applicable Materials Steel, Stainless Steel and Aluminum Catalog Number 6253702 Country of Origin FR Cutting Depth 7-8XD Cutting Direction Right Hand Diameter 0.4055 in Flute Length 4.7244 in Flute Type SSK Gross Weight Per Pack 0.3700 lb Item Group 721 Number of Flutes 2 Point Angle 130 deg Point Type Split Series CoroDrill® 860 Shank Size 0.4724 in Shank Type Cylinder Standards DIN1835-A|DIN6535-HA Type High Performance UPC 11 69826271768 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Finish Uncoated Material Solid Carbide Overall Length 6.7322 in H10F manufacturer grade 0 deg body half taper Axial concentric coolant entry on circle 20 bar coolant Axial concentric coolant exit on circle EFW feed direction 8.667 deg orthogonal rake 12.951 deg helix flute 126 mm L body 169.6 mm L functional 45 mm L clamping 83.8 mm L usable 3 maximum regrinds 1.4 mm L point 3 mm L regrind 14834 r/min H6 connection diameter tolerance H7 achievable hole tolerance N material grade 860.1..A1-NM (8xD) tool style
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | 860.1-1030-082A1-NM H10F |
| Applicable Materials | Steel, Stainless Steel and Aluminum |
| Catalog Number | 6253702 |
| Country of Origin | FR |
| Cutting Depth | 7-8XD |
| Cutting Direction | Right Hand |
| Diameter | 0.4055 in |
| Flute Length | 4.7244 in |
| Flute Type | SSK |
| Gross Weight Per Pack | 0.3700 lb |
| Item Group | 721 |
| Number of Flutes | 2 |
| Point Angle | 130 deg |
| Point Type | Split |
| Series | CoroDrill® 860 |
| Shank Size | 0.4724 in |
| Shank Type | Cylinder |
| Standards | DIN1835-A|DIN6535-HA |
| Type | High Performance |
| UPC 11 | 69826271768 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Finish | Uncoated |
| Material | Solid Carbide |
| Overall Length | 6.7322 in |
| H10F manufacturer grade |
| 0 deg body half taper |
| Axial concentric coolant entry on circle |
| 20 bar coolant |
| Axial concentric coolant exit on circle |
| EFW feed direction |
| 8.667 deg orthogonal rake |
| 12.951 deg helix flute |
| 126 mm L body |
| 169.6 mm L functional |
| 45 mm L clamping |
| 83.8 mm L usable |
| 3 maximum regrinds |
| 1.4 mm L point |
| 3 mm L regrind |
| 14834 r/min |
| H6 connection diameter tolerance |
| H7 achievable hole tolerance |
| N material grade |
| 860.1..A1-NM (8xD) tool style |
