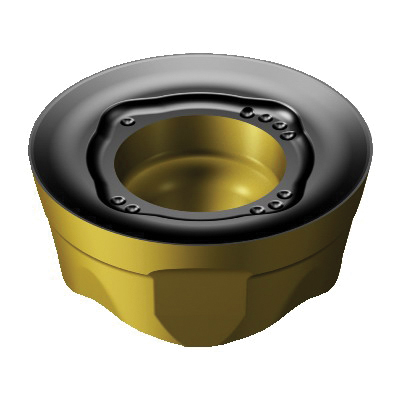

Sandvik Coromant 6252741 CoroMill® 600 Milling Insert, 600-1045E-ML 4240 ANSI, R-Round, 600..E-ML Insert, 600-1045E-ML 4240 ISO
600 Milling Inserts
1240126
MFG #: 6252741
Sandvik Coromant
13.06000
/ ea
Sandvik Coromant Milling Insert, Series: CoroMill® 600, 600..E-ML Insert, R-Round, 0.3937 in Inscribed Circle, 0.1771 in Thickness, ML Chipbreaker, 0.1968 in Corner Radius, 0.1771 in Hole Dia, Manufacturer's Grade: 4240, ANSI Code: 600-1045E-ML 4240, ISO Code: 600-1045E-ML 4240, Neutral Hand, Carbide, MTCVD Coated, Material Grade: M
- Features
| 40 to 60 deg countersunk hole and non-flat surface clamping interface |
| 11 deg clearance |
| 5 mm D cutting |
| 1-side cutting |
| 20 life cycle state |
| 4 corner |
| F cutting edge condition |
| 4 cutting edge |
| 0.05 to 0.35 mm/r cutting feed |
