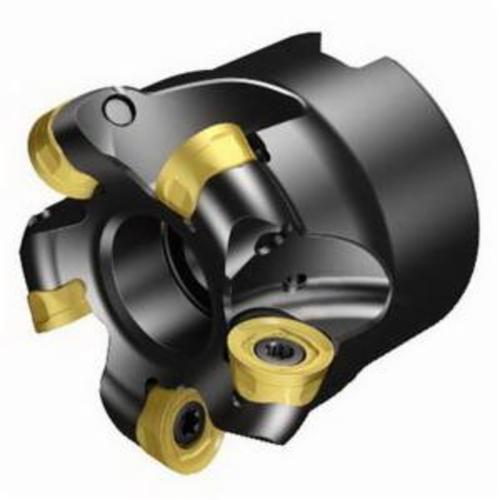

Sandvik Coromant 6252736 CoroMill® 600 Face Milling Cutter, 2.0078 in Cutting, 0.8661 in Shank, 1.9685 in OAL, 600..Qxx Insert, 0.2362 in Max Depth of Cut
Custom_Product_Images_Illustration
Sandvik Coromant 6252736 CoroMill® 600 Face Milling Cutter, 2.0078 in Cutting, 0.8661 in Shank, 1.9685 in OAL, 600..Qxx Insert, 0.2362 in Max Depth of Cut
SKU1240106
MFGR #6252736
Your Cost: $1,160.31/ea
Sandvik Coromant Face Milling Cutter, Series: CoroMill® 600, 2.0078 in Cutting Dia, 1.9685 in Overall Length, 0.2362 in Maximum Depth of Cut, 600..Qxx Insert, 7 Inserts, Insert Compatibility: 600-1252, 0.8661 in Shank Dia, Right Hand Cutting, ANSI Code: 600-063Q22-12H, ISO Code: 600-063Q22-12H, Steel
Sandvik Coromant Face Milling Cutter, Series: CoroMill® 600, 2.0078 in Cutting Dia, 1.9685 in Overall Length, 0.2362 in Maximum Depth of Cut, 600..Qxx Insert, 7 Inserts, Insert Compatibility: 600-1252, 0.8661 in Shank Dia, Right Hand Cutting, ANSI Code: 600-063Q22-12H, ISO Code: 600-063Q22-12H, Steel
Alternate Catalog Number 600-063Q22-12H ANSI Code 600-063Q22-12H Catalog Number 6252736 Country of Origin SE Gross Weight Per Pack 1.7800 lb ISO Code 600-063Q22-12H Item Group 440 Material Steel Series CoroMill® 600 Standards ISO 6462:2011 UPC 11 69826271247 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Arbor Hole Diameter 0.8661 in Cutting Diameter 2.0078 in Cutting Direction Right Hand Insert Compatibility 600-1252 Insert Style 600..Qxx Maximum Depth of Cut 0.2362 in Number of Inserts 7 Overall Length 1.9685 in Shank Diameter 0.8661 in Through Coolant Yes Axial concentric coolant entry Hexagon socket head cap screw adaptive interface 50 bar coolant pressure Differential cutting pitch 40 - 60 deg insert screw clamping interface 63 mm Dia maximum cutting 10.4 mm W keyway 50 mm overhang 3.5 deg maximum ramping 16700 r/min cutting feed 3 Nm torque 20 life cycle state Hexagon socket head cap screw adaptive interface
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 600-063Q22-12H |
| ANSI Code | 600-063Q22-12H |
| Catalog Number | 6252736 |
| Country of Origin | SE |
| Gross Weight Per Pack | 1.7800 lb |
| ISO Code | 600-063Q22-12H |
| Item Group | 440 |
| Material | Steel |
| Series | CoroMill® 600 |
| Standards | ISO 6462:2011 |
| UPC 11 | 69826271247 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Arbor Hole Diameter | 0.8661 in |
| Cutting Diameter | 2.0078 in |
| Cutting Direction | Right Hand |
| Insert Compatibility | 600-1252 |
| Insert Style | 600..Qxx |
| Maximum Depth of Cut | 0.2362 in |
| Number of Inserts | 7 |
| Overall Length | 1.9685 in |
| Shank Diameter | 0.8661 in |
| Through Coolant | Yes |
| Axial concentric coolant entry |
| Hexagon socket head cap screw adaptive interface |
| 50 bar coolant pressure |
| Differential cutting pitch |
| 40 - 60 deg insert screw clamping interface |
| 63 mm Dia maximum cutting |
| 10.4 mm W keyway |
| 50 mm overhang |
| 3.5 deg maximum ramping |
| 16700 r/min cutting feed |
| 3 Nm torque |
| 20 life cycle state |
| Hexagon socket head cap screw adaptive interface |
