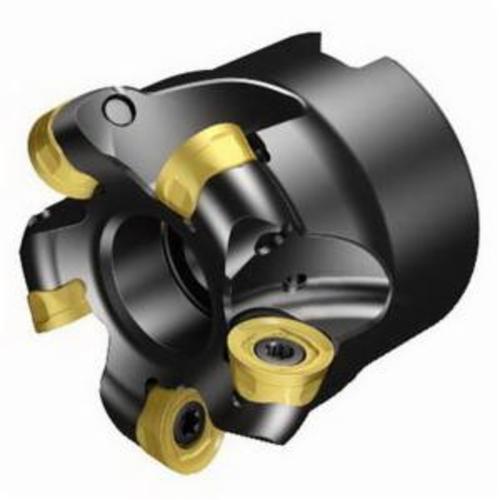

Sandvik Coromant 6252731 CoroMill® 600 Face Milling Cutter, 1.1023 in Cutting, 0.6299 in Shank, 1.5748 in OAL, 600..Qxx Insert
Custom_Product_Images_Illustration
Sandvik Coromant 6252731 CoroMill® 600 Face Milling Cutter, 1.1023 in Cutting, 0.6299 in Shank, 1.5748 in OAL, 600..Qxx Insert
SKU1240110
MFGR #6252731
Your Cost: $795.61/ea
Sandvik Coromant Face Milling Cutter, Series: CoroMill® 600, 1.1023 in Cutting Dia, 1.5748 in Overall Length, 0.2362 in Maximum Depth of Cut, 600..Qxx Insert, 4 Inserts, Insert Compatibility: 600-1252, 0.6299 in Shank Dia, Right Hand Cutting, ANSI Code: 600-040Q16-12H, ISO Code: 600-040Q16-12H, Steel
Sandvik Coromant Face Milling Cutter, Series: CoroMill® 600, 1.1023 in Cutting Dia, 1.5748 in Overall Length, 0.2362 in Maximum Depth of Cut, 600..Qxx Insert, 4 Inserts, Insert Compatibility: 600-1252, 0.6299 in Shank Dia, Right Hand Cutting, ANSI Code: 600-040Q16-12H, ISO Code: 600-040Q16-12H, Steel
Alternate Catalog Number 600-040Q16-12H ANSI Code 600-040Q16-12H Catalog Number 6252731 Country of Origin SE Gross Weight Per Pack 1.0400 lb ISO Code 600-040Q16-12H Item Group 440 Material Steel Series CoroMill® 600 Standards ISO 6462:2011 UPC 11 69826271230 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Arbor Hole Diameter 0.6299 in Cutting Diameter 1.1023 in Cutting Direction Right Hand Insert Compatibility 600-1252 Insert Style 600..Qxx Maximum Depth of Cut 0.2362 in Number of Inserts 4 Overall Length 1.5748 in Shank Diameter 0.6299 in Through Coolant Yes Axial concentric coolant entry Hexagon socket head cap screw adaptive interface 50 bar coolant pressure Differential cutting pitch 40 - 60 deg insert screw clamping interface 40 mm Dia maximum cutting 8.4 mm W keyway 40 mm overhang 7 deg maximum ramping 20900 r/min 3 Nm torque 20 life cycle state Hexagon socket head cap screw adaptive interface
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 600-040Q16-12H |
| ANSI Code | 600-040Q16-12H |
| Catalog Number | 6252731 |
| Country of Origin | SE |
| Gross Weight Per Pack | 1.0400 lb |
| ISO Code | 600-040Q16-12H |
| Item Group | 440 |
| Material | Steel |
| Series | CoroMill® 600 |
| Standards | ISO 6462:2011 |
| UPC 11 | 69826271230 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Arbor Hole Diameter | 0.6299 in |
| Cutting Diameter | 1.1023 in |
| Cutting Direction | Right Hand |
| Insert Compatibility | 600-1252 |
| Insert Style | 600..Qxx |
| Maximum Depth of Cut | 0.2362 in |
| Number of Inserts | 4 |
| Overall Length | 1.5748 in |
| Shank Diameter | 0.6299 in |
| Through Coolant | Yes |
| Axial concentric coolant entry |
| Hexagon socket head cap screw adaptive interface |
| 50 bar coolant pressure |
| Differential cutting pitch |
| 40 - 60 deg insert screw clamping interface |
| 40 mm Dia maximum cutting |
| 8.4 mm W keyway |
| 40 mm overhang |
| 7 deg maximum ramping |
| 20900 r/min |
| 3 Nm torque |
| 20 life cycle state |
| Hexagon socket head cap screw adaptive interface |
