Sandvik Coromant

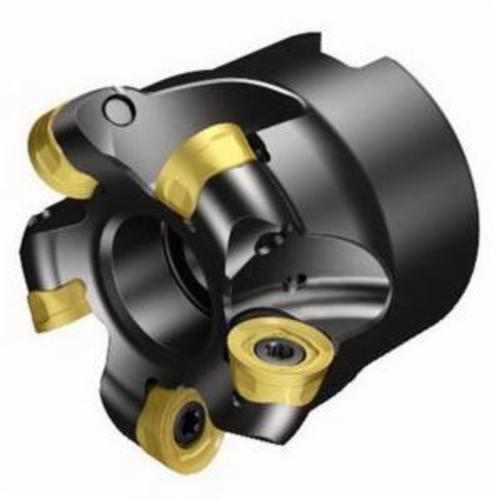

Sandvik Coromant 6252730 CoroMill® 600 Face Milling Cutter, 1.6535 in Cutting, 0.8661 in Shank, 1.5748 in OAL, 600..Qxx Insert, 0.1968 in Max Depth of Cut
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 6252730 CoroMill® 600 Face Milling Cutter, 1.6535 in Cutting, 0.8661 in Shank, 1.5748 in OAL, 600..Qxx Insert, 0.1968 in Max Depth of Cut
SKU1240108
MFGR #6252730
Your Cost: $1,026.74/ea
Sandvik Coromant Face Milling Cutter, Series: CoroMill® 600, 1.6535 in Cutting Dia, 1.5748 in Overall Length, 0.1968 in Maximum Depth of Cut, 600..Qxx Insert, 6 Inserts, Insert Compatibility: 600-1045, 0.8661 in Shank Dia, Right Hand Cutting, ANSI Code: 600-052Q22-10H, ISO Code: 600-052Q22-10H, Steel
Sandvik Coromant Face Milling Cutter, Series: CoroMill® 600, 1.6535 in Cutting Dia, 1.5748 in Overall Length, 0.1968 in Maximum Depth of Cut, 600..Qxx Insert, 6 Inserts, Insert Compatibility: 600-1045, 0.8661 in Shank Dia, Right Hand Cutting, ANSI Code: 600-052Q22-10H, ISO Code: 600-052Q22-10H, Steel
Alternate Catalog Number 600-052Q22-10H ANSI Code 600-052Q22-10H Catalog Number 6252730 Country of Origin SE Gross Weight Per Pack 1.2700 lb ISO Code 600-052Q22-10H Item Group 440 Material Steel Series CoroMill® 600 Standards ISO 6462:2011 UPC 11 69826271243 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Arbor Hole Diameter 0.8661 in Cutting Diameter 1.6535 in Cutting Direction Right Hand Insert Compatibility 600-1045 Insert Style 600..Qxx Maximum Depth of Cut 0.1968 in Number of Inserts 6 Overall Length 1.5748 in Shank Diameter 0.8661 in Through Coolant Yes Axial concentric coolant entry Hexagon socket head cap screw adaptive interface 50 bar coolant pressure Differential cutting pitch 40 - 60 deg insert screw clamping interface 52 mm Dia maximum cutting 10.4 mm W keyway 40 mm overhang 3.3 deg maximum ramping 19900 r/min 3 Nm torque 20 life cycle state Hexagon socket head cap screw adaptive interface
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 600-052Q22-10H |
| ANSI Code | 600-052Q22-10H |
| Catalog Number | 6252730 |
| Country of Origin | SE |
| Gross Weight Per Pack | 1.2700 lb |
| ISO Code | 600-052Q22-10H |
| Item Group | 440 |
| Material | Steel |
| Series | CoroMill® 600 |
| Standards | ISO 6462:2011 |
| UPC 11 | 69826271243 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Arbor Hole Diameter | 0.8661 in |
| Cutting Diameter | 1.6535 in |
| Cutting Direction | Right Hand |
| Insert Compatibility | 600-1045 |
| Insert Style | 600..Qxx |
| Maximum Depth of Cut | 0.1968 in |
| Number of Inserts | 6 |
| Overall Length | 1.5748 in |
| Shank Diameter | 0.8661 in |
| Through Coolant | Yes |
| Axial concentric coolant entry |
| Hexagon socket head cap screw adaptive interface |
| 50 bar coolant pressure |
| Differential cutting pitch |
| 40 - 60 deg insert screw clamping interface |
| 52 mm Dia maximum cutting |
| 10.4 mm W keyway |
| 40 mm overhang |
| 3.3 deg maximum ramping |
| 19900 r/min |
| 3 Nm torque |
| 20 life cycle state |
| Hexagon socket head cap screw adaptive interface |
