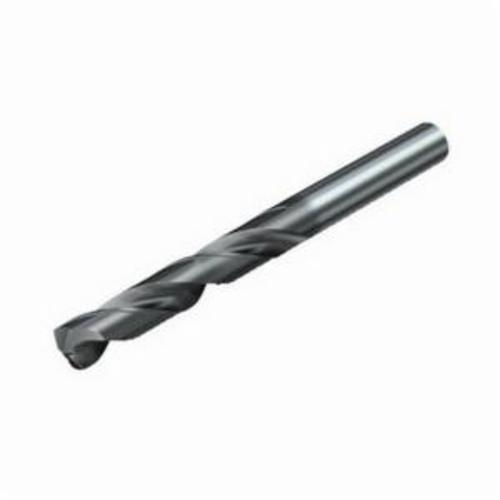

Sandvik Coromant 6241394 CoroDrill® 460 High Performance Jobber Drill, 0.2342 in Dia x 2.5984 in L, Carbide, PVD
Custom_Product_Images_Illustration
Sandvik Coromant 6241394 CoroDrill® 460 High Performance Jobber Drill, 0.2342 in Dia x 2.5984 in L, Carbide, PVD
SKU905735
MFGR #6241394
Your Cost: $87.93/ea
CoroDrill® 460 -XM is a multi-application, high performance drill that can be used across a wide range of materials. this drill provides high capacity utilization, flexibility and versatility. With one drill for all materials, stock holding can be reduced and greater machine flexibility is offered leading to reduced set-up time.
CoroDrill® 460 -XM is a multi-application, high performance drill that can be used across a wide range of materials. this drill provides high capacity utilization, flexibility and versatility. With one drill for all materials, stock holding can be reduced and greater machine flexibility is offered leading to reduced set-up time.
Alternate Catalog Number 460.1-0595-018A0-XM GC34 Catalog Number 6241394 Country of Origin CN Cutting Depth 0.6811 in Cutting Diameter Split Cutting Direction Right Hand Cutting Edge Material Carbide Diameter 0.2342 in Drill Diameter Measurement System Imperial Flute Length 1.1023 in Flute Type SSK Gross Weight Per Pack 0.0600 lb Item Group 722 Length of Cut 6 mm Letter|Wire Size Carbide Number of Flutes 2 Overall Length 2.5984 in Point Angle 140 deg Point Type Split Series CoroDrill® 460 Shank Diameter High Performance in Shank Length Cylindrical in Shank Size 0.2362 in mm Shank Type Cylindrical Standards DIN1835-A/DIN6535-HA, DIN6537K Thread Size 5.95 mm Thread Type PVD Type High Performance UPC 11 69826270437 UPC 12 69826270437 Warranty Info High Performance Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Applicable Materials Steel, Stainless Steel, Cast Iron, Aluminum, Heat Resistant Alloys and Hardened Materials Finish PVD Material Carbide 0 deg body half taper Without coolant entry No coolant exit EFW cutting feed 29.766 deg helix flute 20.279 deg orthogonal rake GC34 manufacturer grade 65.1 mm L functional 36 mm L clamping 3 regrinds 0.9 mm L point 3 mm L regrind 13368 r/min H6 connection diameter tolerance H9 achievable hole tolerance 460.1..A0-XM (3xD) tool style 2.90756 usable length diameter ratio H, K, M, N, P and S material grade 20 life cycle state Micro-grained carbide for excellent combination of hardness and toughness, resulting in high wear resistance and longer tool life
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 460.1-0595-018A0-XM GC34 |
| Catalog Number | 6241394 |
| Country of Origin | CN |
| Cutting Depth | 0.6811 in |
| Cutting Diameter | Split |
| Cutting Direction | Right Hand |
| Cutting Edge Material | Carbide |
| Diameter | 0.2342 in |
| Drill Diameter Measurement System | Imperial |
| Flute Length | 1.1023 in |
| Flute Type | SSK |
| Gross Weight Per Pack | 0.0600 lb |
| Item Group | 722 |
| Length of Cut | 6 mm |
| Letter|Wire Size | Carbide |
| Number of Flutes | 2 |
| Overall Length | 2.5984 in |
| Point Angle | 140 deg |
| Point Type | Split |
| Series | CoroDrill® 460 |
| Shank Diameter | High Performance in |
| Shank Length | Cylindrical in |
| Shank Size | 0.2362 in mm |
| Shank Type | Cylindrical |
| Standards | DIN1835-A/DIN6535-HA, DIN6537K |
| Thread Size | 5.95 mm |
| Thread Type | PVD |
| Type | High Performance |
| UPC 11 | 69826270437 |
| UPC 12 | 69826270437 |
| Warranty Info | High Performance |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Applicable Materials | Steel, Stainless Steel, Cast Iron, Aluminum, Heat Resistant Alloys and Hardened Materials |
| Finish | PVD |
| Material | Carbide |
| 0 deg body half taper |
| Without coolant entry |
| No coolant exit |
| EFW cutting feed |
| 29.766 deg helix flute |
| 20.279 deg orthogonal rake |
| GC34 manufacturer grade |
| 65.1 mm L functional |
| 36 mm L clamping |
| 3 regrinds |
| 0.9 mm L point |
| 3 mm L regrind |
| 13368 r/min |
| H6 connection diameter tolerance |
| H9 achievable hole tolerance |
| 460.1..A0-XM (3xD) tool style |
| 2.90756 usable length diameter ratio |
| H, K, M, N, P and S material grade |
| 20 life cycle state |
| Micro-grained carbide for excellent combination of hardness and toughness, resulting in high wear resistance and longer tool life |
