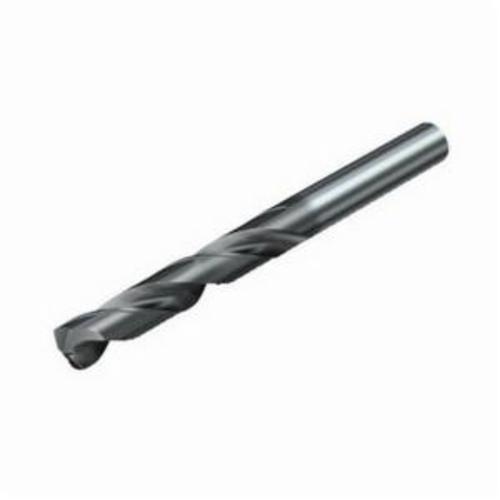

Sandvik Coromant 6241391 CoroDrill® 460 High Performance Jobber Drill, 0.2204 in Dia x 2.5984 in L, Carbide, PVD
Custom_Product_Images_Illustration
Sandvik Coromant 6241391 CoroDrill® 460 High Performance Jobber Drill, 0.2204 in Dia x 2.5984 in L, Carbide, PVD
SKU1228108
MFGR #6241391
Your Cost: $87.93/ea
CoroDrill® 460 -XM is a multi-application, high performance drill that can be used across a wide range of materials. this drill provides high capacity utilization, flexibility and versatility. With one drill for all materials, stock holding can be reduced and greater machine flexibility is offered leading to reduced set-up time.
CoroDrill® 460 -XM is a multi-application, high performance drill that can be used across a wide range of materials. this drill provides high capacity utilization, flexibility and versatility. With one drill for all materials, stock holding can be reduced and greater machine flexibility is offered leading to reduced set-up time.
Alternate Catalog Number 460.1-0560-017A0-XM GC34 Catalog Number 6241391 Country of Origin CN Cutting Depth 0.6929 in Cutting Diameter 28 mm Cutting Direction Right Hand Cutting Edge Material Carbide Diameter 0.2204 in Flute Length 1.1023 in Flute Type SSK Gross Weight Per Pack 0.0500 lb Item Group 722 Length of Cut 140 deg Letter|Wire Size Split Number of Flutes 2 Overall Length 2.5984 in Point Angle 140 deg Point Type Split Series CoroDrill® 460 Shank Diameter SSK in Shank Length 2 in Shank Size 0.2362 in mm Shank Type Cylindrical Standards DIN1835-A/DIN6535-HA, DIN6537K Thread Size 6 mm Thread Type 17.6 mm Type High Performance UPC 11 69826270425 Warranty Info High Performance Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Finish PVD Material Carbide 0 deg body half taper Without coolant entry No coolant exit EFW cutting feed 28.28 deg helix flute 19.223 deg orthogonal rake GC34 manufacturer grade 65.2 mm L functional 36 mm L clamping 3 regrinds 0.8 mm L point 3 mm L regrind 14210 r/min H6 connection diameter tolerance H9 achievable hole tolerance 460.1..A0-XM (3xD) tool style 3.14286 usable length diameter ratio H, K, M, N, P and S material grade 20 life cycle state Micro-grained carbide for excellent combination of hardness and toughness, resulting in high wear resistance and longer tool life
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 460.1-0560-017A0-XM GC34 |
| Catalog Number | 6241391 |
| Country of Origin | CN |
| Cutting Depth | 0.6929 in |
| Cutting Diameter | 28 mm |
| Cutting Direction | Right Hand |
| Cutting Edge Material | Carbide |
| Diameter | 0.2204 in |
| Flute Length | 1.1023 in |
| Flute Type | SSK |
| Gross Weight Per Pack | 0.0500 lb |
| Item Group | 722 |
| Length of Cut | 140 deg |
| Letter|Wire Size | Split |
| Number of Flutes | 2 |
| Overall Length | 2.5984 in |
| Point Angle | 140 deg |
| Point Type | Split |
| Series | CoroDrill® 460 |
| Shank Diameter | SSK in |
| Shank Length | 2 in |
| Shank Size | 0.2362 in mm |
| Shank Type | Cylindrical |
| Standards | DIN1835-A/DIN6535-HA, DIN6537K |
| Thread Size | 6 mm |
| Thread Type | 17.6 mm |
| Type | High Performance |
| UPC 11 | 69826270425 |
| Warranty Info | High Performance |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Finish | PVD |
| Material | Carbide |
| 0 deg body half taper |
| Without coolant entry |
| No coolant exit |
| EFW cutting feed |
| 28.28 deg helix flute |
| 19.223 deg orthogonal rake |
| GC34 manufacturer grade |
| 65.2 mm L functional |
| 36 mm L clamping |
| 3 regrinds |
| 0.8 mm L point |
| 3 mm L regrind |
| 14210 r/min |
| H6 connection diameter tolerance |
| H9 achievable hole tolerance |
| 460.1..A0-XM (3xD) tool style |
| 3.14286 usable length diameter ratio |
| H, K, M, N, P and S material grade |
| 20 life cycle state |
| Micro-grained carbide for excellent combination of hardness and toughness, resulting in high wear resistance and longer tool life |
