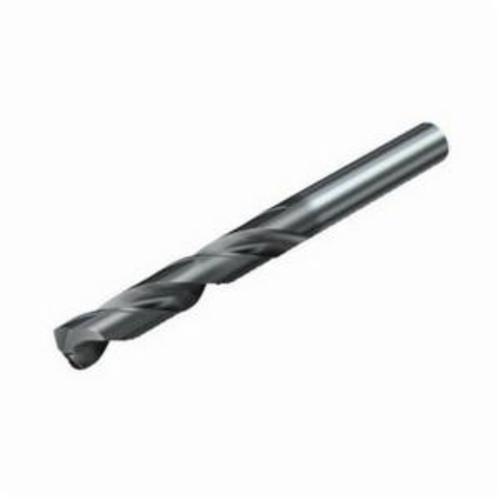

Sandvik Coromant 6241381 CoroDrill® 460 High Performance Jobber Drill, 0.185 in Dia x 2.5984 in L, Carbide, PVD
Custom_Product_Images_Illustration
Sandvik Coromant 6241381 CoroDrill® 460 High Performance Jobber Drill, 0.185 in Dia x 2.5984 in L, Carbide, PVD
SKU760294
MFGR #6241381
Your Cost: $73.28/ea
List: CoroDrill® 460 -XM is a multi-application, high performance drill that can be used across a wide range of materials. this drill provides high capacity utilization, flexibility and versatility. With one drill for all materials, stock holding can be reduced and greater machine flexibility is offered leading to reduced set-up time.
CoroDrill® 460 -XM is a multi-application, high performance drill that can be used across a wide range of materials. this drill provides high capacity utilization, flexibility and versatility. With one drill for all materials, stock holding can be reduced and greater machine flexibility is offered leading to reduced set-up time.
Alternate Catalog Number 460.1-0470-014A0-XM GC34 Catalog Number 6241381 Country of Origin CN Cutting Depth 0.5748 in Cutting Diameter 140 deg Cutting Direction Right Hand Cutting Edge Material Carbide Diameter 0.185 in Flute Length 0.9448 in Flute Type SSK Gross Weight Per Pack 0.0500 lb Item Group 722 Length of Cut Cylindrical Letter|Wire Size Carbide Number of Flutes 2 Overall Length 2.5984 in Point Angle 140 deg Point Type Split Series CoroDrill® 460 Shank Diameter 24 mm in Shank Length Right Hand in Shank Size 0.2362 in mm Shank Type Cylindrical Standards DIN1835-A/DIN6535-HA, DIN6537K Thread Size CoroDrill® 460 Thread Type High Performance Type High Performance UPC 11 69826270377 UPC 12 69826270377 Warranty Info High Performance Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Finish PVD Material Carbide 0 deg body half taper Without coolant entry No coolant exit EFW cutting feed 33.274 deg helix flute 22.806 deg orthogonal rake GC34 manufacturer grade 65.3 mm L functional 36 mm L clamping 3 regrinds 0.7 mm L point 3 mm L regrind 16931 r/min H6 connection diameter tolerance H9 achievable hole tolerance 460.1..A0-XM (3xD) tool style 3.10638 usable length diameter ratio H, K, M, N, P and S material grade 20 life cycle state Micro-grained carbide for excellent combination of hardness and toughness, resulting in high wear resistance and longer tool life
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 460.1-0470-014A0-XM GC34 |
| Catalog Number | 6241381 |
| Country of Origin | CN |
| Cutting Depth | 0.5748 in |
| Cutting Diameter | 140 deg |
| Cutting Direction | Right Hand |
| Cutting Edge Material | Carbide |
| Diameter | 0.185 in |
| Flute Length | 0.9448 in |
| Flute Type | SSK |
| Gross Weight Per Pack | 0.0500 lb |
| Item Group | 722 |
| Length of Cut | Cylindrical |
| Letter|Wire Size | Carbide |
| Number of Flutes | 2 |
| Overall Length | 2.5984 in |
| Point Angle | 140 deg |
| Point Type | Split |
| Series | CoroDrill® 460 |
| Shank Diameter | 24 mm in |
| Shank Length | Right Hand in |
| Shank Size | 0.2362 in mm |
| Shank Type | Cylindrical |
| Standards | DIN1835-A/DIN6535-HA, DIN6537K |
| Thread Size | CoroDrill® 460 |
| Thread Type | High Performance |
| Type | High Performance |
| UPC 11 | 69826270377 |
| UPC 12 | 69826270377 |
| Warranty Info | High Performance |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Finish | PVD |
| Material | Carbide |
| 0 deg body half taper |
| Without coolant entry |
| No coolant exit |
| EFW cutting feed |
| 33.274 deg helix flute |
| 22.806 deg orthogonal rake |
| GC34 manufacturer grade |
| 65.3 mm L functional |
| 36 mm L clamping |
| 3 regrinds |
| 0.7 mm L point |
| 3 mm L regrind |
| 16931 r/min |
| H6 connection diameter tolerance |
| H9 achievable hole tolerance |
| 460.1..A0-XM (3xD) tool style |
| 3.10638 usable length diameter ratio |
| H, K, M, N, P and S material grade |
| 20 life cycle state |
| Micro-grained carbide for excellent combination of hardness and toughness, resulting in high wear resistance and longer tool life |
