Sandvik Coromant

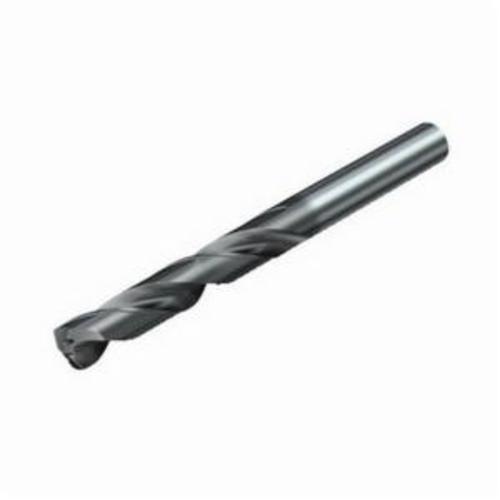

Sandvik Coromant 6241303 CoroDrill® 460 High Performance Jobber Drill, 0.433 in Dia x 4.0157 in L, Carbide, PVD
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 6241303 CoroDrill® 460 High Performance Jobber Drill, 0.433 in Dia x 4.0157 in L, Carbide, PVD
SKU817875
MFGR #6241303
Your Cost: $233.93/ea
CoroDrill® 460 -XM is a multi-application, high performance drill that can be used across a wide range of materials. this drill provides high capacity utilization, flexibility and versatility. With one drill for all materials, stock holding can be reduced and greater machine flexibility is offered leading to reduced set-up time.
CoroDrill® 460 -XM is a multi-application, high performance drill that can be used across a wide range of materials. this drill provides high capacity utilization, flexibility and versatility. With one drill for all materials, stock holding can be reduced and greater machine flexibility is offered leading to reduced set-up time.
Alternate Catalog Number 460.1-1100-033A1-XM GC34 Catalog Number 6241303 Country of Origin CN Cutting Depth 3XD Cutting Direction Right Hand Cutting Edge Material Solid Carbide Diameter 0.433 in Drill Dia Measurement System Imperial Drill Diameter Measurement System Imperial Flute Length 2.165 in Flute Type SSK Gross Weight Per Pack 0.2700 lb Item Group 722 Number of Flutes 2 Overall Length 4.016 in Point Angle 140 ° Point Type Split Series CoroDrill® 460 Shank Size 0.472 in Shank Type Cylindrical Standards DIN 1835 A/6535 HA/6537 K Type High Performance UPC 11 69826270763 UPC 12 69826270763 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Applicable Materials Steel, Stainless Steel, Cast Iron, Aluminum, Heat Resistant Alloys and Hardened Materials Finish PVD TiN Coated Material Solid Carbide High productivity and consistent tool lifeExceptional value with no compromise on qualityExcellent hole qualityOutstanding coating and flute design leading to smooth and efficient chip evacuationReduced tooling costsCan be reground up to three times, extending tool life even furtherMicro grained carbide for excellent combination of hardness and toughness, resulting in high wear resistance and longer tool lifeCoating with a special finishing treatment to reduce coefficient of frictionStrong web design provides excellent cross-sectional strength that, combined with increased flute volume, enhances chip evacuationPoint angle of 140 deg ideally suited for multi-application drilling, with good centering capabilities and low thrust force design Axial concentric coolant entry on circle Axial concentric coolant exit on circle 20 bar coolant EFW cutting feed 27.888 deg helix flute 18.946 deg orthogonal rake GC34 manufacturer grade 100.4 mm L functional 45 mm L clamping 3 regrinds 1.6 mm L point 3 mm L regrind 8681 r/min H6 connection diameter tolerance H9 achievable hole tolerance 460.1..A1-XM (3xD) tool style 3.145 usable length diameter ratio H, K, M, N, P, S material grade 20 life cycle state
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 460.1-1100-033A1-XM GC34 |
| Catalog Number | 6241303 |
| Country of Origin | CN |
| Cutting Depth | 3XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | Solid Carbide |
| Diameter | 0.433 in |
| Drill Dia Measurement System | Imperial |
| Drill Diameter Measurement System | Imperial |
| Flute Length | 2.165 in |
| Flute Type | SSK |
| Gross Weight Per Pack | 0.2700 lb |
| Item Group | 722 |
| Number of Flutes | 2 |
| Overall Length | 4.016 in |
| Point Angle | 140 ° |
| Point Type | Split |
| Series | CoroDrill® 460 |
| Shank Size | 0.472 in |
| Shank Type | Cylindrical |
| Standards | DIN 1835 A/6535 HA/6537 K |
| Type | High Performance |
| UPC 11 | 69826270763 |
| UPC 12 | 69826270763 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Applicable Materials | Steel, Stainless Steel, Cast Iron, Aluminum, Heat Resistant Alloys and Hardened Materials |
| Finish | PVD TiN Coated |
| Material | Solid Carbide |
| High productivity and consistent tool lifeExceptional value with no compromise on qualityExcellent hole qualityOutstanding coating and flute design leading to smooth and efficient chip evacuationReduced tooling costsCan be reground up to three times, extending tool life even furtherMicro grained carbide for excellent combination of hardness and toughness, resulting in high wear resistance and longer tool lifeCoating with a special finishing treatment to reduce coefficient of frictionStrong web design provides excellent cross-sectional strength that, combined with increased flute volume, enhances chip evacuationPoint angle of 140 deg ideally suited for multi-application drilling, with good centering capabilities and low thrust force design |
| Axial concentric coolant entry on circle |
| Axial concentric coolant exit on circle |
| 20 bar coolant |
| EFW cutting feed |
| 27.888 deg helix flute |
| 18.946 deg orthogonal rake |
| GC34 manufacturer grade |
| 100.4 mm L functional |
| 45 mm L clamping |
| 3 regrinds |
| 1.6 mm L point |
| 3 mm L regrind |
| 8681 r/min |
| H6 connection diameter tolerance |
| H9 achievable hole tolerance |
| 460.1..A1-XM (3xD) tool style |
| 3.145 usable length diameter ratio |
| H, K, M, N, P, S material grade |
| 20 life cycle state |
