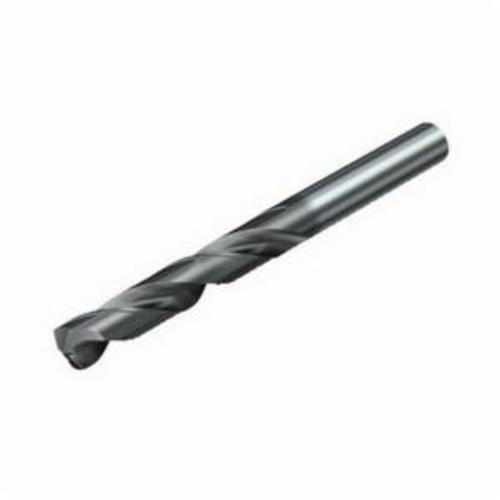

Sandvik Coromant 6241110 CoroDrill® 460 High Performance Jobber Drill, 0.2811 in Dia x 3.5826 in L, Carbide, PVD
Custom_Product_Images_Illustration
Sandvik Coromant 6241110 CoroDrill® 460 High Performance Jobber Drill, 0.2811 in Dia x 3.5826 in L, Carbide, PVD
SKU1110222
MFGR #6241110
Your Cost: $123.56/ea
CoroDrill® 460 -XM is a multi-application, high performance drill that can be used across a wide range of materials. this drill provides high capacity utilization, flexibility and versatility. With one drill for all materials, stock holding can be reduced and greater machine flexibility is offered leading to reduced set-up time.
CoroDrill® 460 -XM is a multi-application, high performance drill that can be used across a wide range of materials. this drill provides high capacity utilization, flexibility and versatility. With one drill for all materials, stock holding can be reduced and greater machine flexibility is offered leading to reduced set-up time.
Alternate Catalog Number 460.1-0714-036A0-XM GC34 Catalog Number 6241110 Country of Origin CN Cutting Depth 1.4488 in Cutting Direction Right Hand Cutting Edge Material Carbide Diameter 0.2811 in Flute Length 2.0866 in Flute Type SSK Gross Weight Per Pack 0.1100 lb Item Group 722 Number of Flutes 2 Overall Length 3.5826 in Point Type Split Series CoroDrill® 460 Shank Size 0.3149 in Shank Type Cylindrical Standards DIN1835-A/DIN6535-HA, DIN6537L Type High Performance UPC 11 69826270554 UPC 12 69826270554 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Finish PVD Material Carbide Point Angle 140 deg 0 deg body half taper Without coolant entry No coolant exit EFW cutting feed 27.291 deg helix flute 18.524 deg orthogonal rake GC34 manufacturer grade 89.9 mm L functional 36 mm L clamping 3 regrinds 1.1 mm L point 3 mm L regrind 11139 r/min H6 connection diameter tolerance H9 achievable hole tolerance 460.1..A0-XM (5xD) tool style 5.15406 usable length diameter ratio H, K, M, N, P and S material grade 20 life cycle state Micro-grained carbide for excellent combination of hardness and toughness, resulting in high wear resistance and longer tool life
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | 460.1-0714-036A0-XM GC34 |
| Catalog Number | 6241110 |
| Country of Origin | CN |
| Cutting Depth | 1.4488 in |
| Cutting Direction | Right Hand |
| Cutting Edge Material | Carbide |
| Diameter | 0.2811 in |
| Flute Length | 2.0866 in |
| Flute Type | SSK |
| Gross Weight Per Pack | 0.1100 lb |
| Item Group | 722 |
| Number of Flutes | 2 |
| Overall Length | 3.5826 in |
| Point Type | Split |
| Series | CoroDrill® 460 |
| Shank Size | 0.3149 in |
| Shank Type | Cylindrical |
| Standards | DIN1835-A/DIN6535-HA, DIN6537L |
| Type | High Performance |
| UPC 11 | 69826270554 |
| UPC 12 | 69826270554 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Finish | PVD |
| Material | Carbide |
| Point Angle | 140 deg |
| 0 deg body half taper |
| Without coolant entry |
| No coolant exit |
| EFW cutting feed |
| 27.291 deg helix flute |
| 18.524 deg orthogonal rake |
| GC34 manufacturer grade |
| 89.9 mm L functional |
| 36 mm L clamping |
| 3 regrinds |
| 1.1 mm L point |
| 3 mm L regrind |
| 11139 r/min |
| H6 connection diameter tolerance |
| H9 achievable hole tolerance |
| 460.1..A0-XM (5xD) tool style |
| 5.15406 usable length diameter ratio |
| H, K, M, N, P and S material grade |
| 20 life cycle state |
| Micro-grained carbide for excellent combination of hardness and toughness, resulting in high wear resistance and longer tool life |
