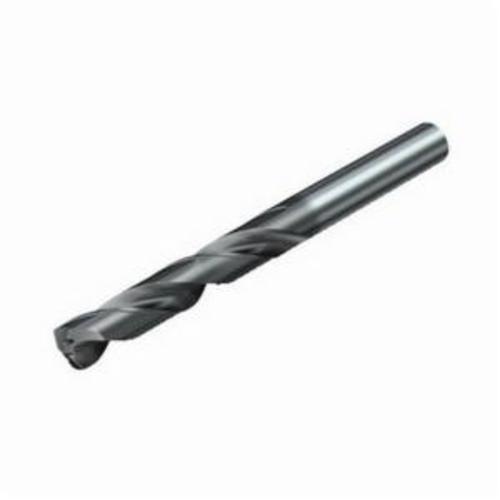

High productivity and consistent tool life|Exceptional value with no compromise on quality|Excellent hole quality|Outstanding coating and flute design leading to smooth and efficient chip evacuation|Reduced tooling costs|Can be reground up to three times, extending tool life even further|Coating with a special finishing treatment to reduce coefficient of friction|Strong web design provides excellent cross-sectional strength that, combined with increased flute volume, enhances chip evacuation|Point angle of 140 deg ideally suited for multi-application drilling, with good centering capabilities and low thrust force design |
Axial concentric coolant entry on circle |
Axial concentric coolant exit on circle |
20 bar coolant |
EFW cutting feed |
27.02 deg helix flute |
18.333 deg orthogonal rake |
GC34 manufacturer grade |
116.4 mm L functional |
45 mm L clamping |
3 regrinds |
1.6 mm L point |
3 mm L regrind |
9009 r/min |
H6 connection diameter tolerance |
H9 achievable hole tolerance |
460.1..A1-XM (5xD) tool style |
5.15094 usable length diameter ratio |
H, K, M, N, P, S material grade |
20 life cycle state |
