Sandvik Coromant

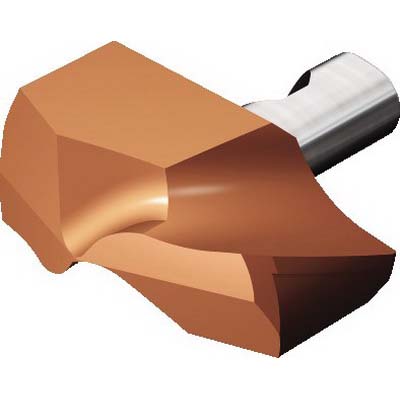

Sandvik Coromant 6239431 CoroDrill® 870 Drill Tip, For Use With CoroDrill® 870 SZ25 Drill, 870-2550-25-KM 3234, 1.0039 in Inscribed, 3234 Grade
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 6239431 CoroDrill® 870 Drill Tip, For Use With CoroDrill® 870 SZ25 Drill, 870-2550-25-KM 3234, 1.0039 in Inscribed, 3234 Grade
SKU1229295
MFGR #6239431
$/ea
Sandvik Coromant Drill Tip, Series: CoroDrill® 870, ANSI Code: 870-2550-25-KM 3234, 0.6181 in Insert, 1.0039 in Inscribed Circle, 1 Edges, 3234 Grade, For Use With: CoroDrill® 870 SZ25 Drill, Right Hand Cutting, Carbide, PVD Coated, Applicable Materials: K
Sandvik Coromant Drill Tip, Series: CoroDrill® 870, ANSI Code: 870-2550-25-KM 3234, 0.6181 in Insert, 1.0039 in Inscribed Circle, 1 Edges, 3234 Grade, For Use With: CoroDrill® 870 SZ25 Drill, Right Hand Cutting, Carbide, PVD Coated, Applicable Materials: K
ANSI Code 870-2550-25-KM 3234 Applicable Materials K Catalog Number 6239431 Color CoroDrill® 870 Compatible With 15.7 mm L Country of Origin SE Cutting Direction Right Hand Gross Weight Per Pack 0.0700 lb Insert Shape 3234 Insert Size 0.6181 in Material Carbide Number of Edges 1 Series CoroDrill® 870 Type 1 UPC 11 69826272320 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer SANDVIK COROMANT CO Finish PVD Coated Grade 3234 Inscribed Circle 1.0039 in Suitable For Use With CoroDrill® 870 SZ25 Drill 20 life cycle state EFW cutting feed direction 13 deg orthogonal rake 10.85 mm L functional 26.1 mm OAL 4.85 mm L point 8.66 mm THK insert 142 deg point K8 cutting diameter tolerance class H9 achievable hole tolerance 870-KM tool style 2 effective cutting edges 0.3 - 0.6 mm/r cutting feed
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| ANSI Code | 870-2550-25-KM 3234 |
| Applicable Materials | K |
| Catalog Number | 6239431 |
| Color | CoroDrill® 870 |
| Compatible With | 15.7 mm L |
| Country of Origin | SE |
| Cutting Direction | Right Hand |
| Gross Weight Per Pack | 0.0700 lb |
| Insert Shape | 3234 |
| Insert Size | 0.6181 in |
| Material | Carbide |
| Number of Edges | 1 |
| Series | CoroDrill® 870 |
| Type | 1 |
| UPC 11 | 69826272320 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | SANDVIK COROMANT CO |
| Finish | PVD Coated |
| Grade | 3234 |
| Inscribed Circle | 1.0039 in |
| Suitable For Use With | CoroDrill® 870 SZ25 Drill |
| 20 life cycle state |
| EFW cutting feed direction |
| 13 deg orthogonal rake |
| 10.85 mm L functional |
| 26.1 mm OAL |
| 4.85 mm L point |
| 8.66 mm THK insert |
| 142 deg point |
| K8 cutting diameter tolerance class |
| H9 achievable hole tolerance |
| 870-KM tool style |
| 2 effective cutting edges |
| 0.3 - 0.6 mm/r cutting feed |
