Sandvik Coromant 6239429 CoroDrill® 870 Drill Tip, For Use With CoroDrill® 870 SZ25 Drill, 870-2540-25-KM 3234, 1 in Inscribed

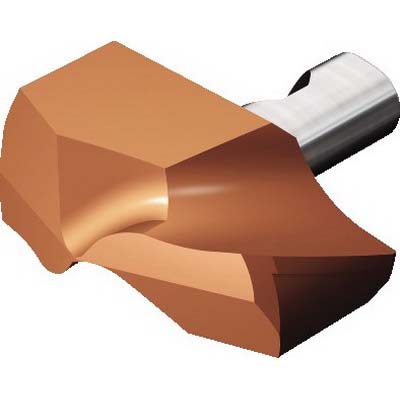

Custom_Product_Images_Illustration
Sandvik Coromant 6239429 CoroDrill® 870 Drill Tip, For Use With CoroDrill® 870 SZ25 Drill, 870-2540-25-KM 3234, 1 in Inscribed
SKU1229297
MFGR #6239429
Your Cost: $161.53/ea
List: Sandvik Coromant Drill Tip, Series: CoroDrill® 870, ANSI Code: 870-2540-25-KM 3234, 0.6181 in Insert, 1 in Inscribed Circle, 1 Edges, 3234 Grade, For Use With: CoroDrill® 870 SZ25 Drill, Right Hand Cutting, Carbide, PVD Coated, Applicable Materials: K
Sandvik Coromant Drill Tip, Series: CoroDrill® 870, ANSI Code: 870-2540-25-KM 3234, 0.6181 in Insert, 1 in Inscribed Circle, 1 Edges, 3234 Grade, For Use With: CoroDrill® 870 SZ25 Drill, Right Hand Cutting, Carbide, PVD Coated, Applicable Materials: K
ANSI Code 870-2540-25-KM 3234 Applicable Materials K Catalog Number 6239429 Color CoroDrill® 870 Compatible With Right Hand Country of Origin SE Cutting Direction Right Hand Gross Weight Per Pack 0.0700 lb Insert Shape Carbide Insert Size 0.6181 in Material Carbide Number of Cutting Edges 1 Number of Edges 1 Series CoroDrill® 870 Type 25.4 mm UPC 11 69826272318 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Diameter 25.4 Finish PVD Coated Grade 3234 Included Angle 142 Inscribed Circle 1 in Insert Seat Size #25 Manufacturer's Grade 3234 Suitable For Use With CoroDrill® 870 SZ25 Drill 20 life cycle state EFW cutting feed direction 13 deg orthogonal rake 10.86 mm L functional 26.1 mm OAL 4.84 mm L point 8.66 mm THK insert 142 deg point K8 cutting diameter tolerance class H9 achievable hole tolerance 870-KM tool style 2 effective cutting edges 0.3 - 0.6 mm/r cutting feed
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| ANSI Code | 870-2540-25-KM 3234 |
| Applicable Materials | K |
| Catalog Number | 6239429 |
| Color | CoroDrill® 870 |
| Compatible With | Right Hand |
| Country of Origin | SE |
| Cutting Direction | Right Hand |
| Gross Weight Per Pack | 0.0700 lb |
| Insert Shape | Carbide |
| Insert Size | 0.6181 in |
| Material | Carbide |
| Number of Cutting Edges | 1 |
| Number of Edges | 1 |
| Series | CoroDrill® 870 |
| Type | 25.4 mm |
| UPC 11 | 69826272318 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Diameter | 25.4 |
| Finish | PVD Coated |
| Grade | 3234 |
| Included Angle | 142 |
| Inscribed Circle | 1 in |
| Insert Seat Size | #25 |
| Manufacturer's Grade | 3234 |
| Suitable For Use With | CoroDrill® 870 SZ25 Drill |
| 20 life cycle state |
| EFW cutting feed direction |
| 13 deg orthogonal rake |
| 10.86 mm L functional |
| 26.1 mm OAL |
| 4.84 mm L point |
| 8.66 mm THK insert |
| 142 deg point |
| K8 cutting diameter tolerance class |
| H9 achievable hole tolerance |
| 870-KM tool style |
| 2 effective cutting edges |
| 0.3 - 0.6 mm/r cutting feed |
