Sandvik Coromant

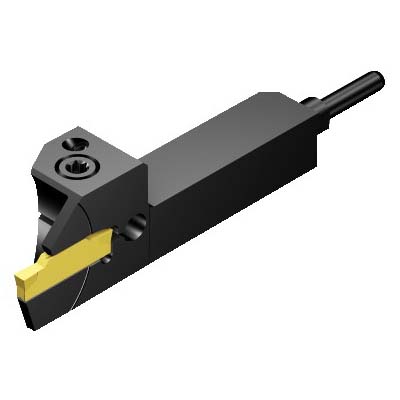

Sandvik Coromant 6224910 CoroCut® 1-2 QS Indexable Shank Tool, N123F2-0250-0002-CM insert, F Insert Seat, Right Hand
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 6224910 CoroCut® 1-2 QS Indexable Shank Tool, N123F2-0250-0002-CM insert, F Insert Seat, Right Hand
SKU1246704
MFGR #6224910
Your Cost: $527.83/ea
Sandvik Coromant Shank Tool, Indexable, Series: CoroCut® 1-2 QS, Insert Compatibility: N123F2-0250-0002-CM, QS-RF123F17-1616BHP, 2.7559 in Overall Length, Rectangular Shank, 0.6299 in H x 0.6299 in W Shank, F Insert Seat, Right Hand Cutting, 0.6692 in Maximum Depth of Cut, Steel
Sandvik Coromant Shank Tool, Indexable, Series: CoroCut® 1-2 QS, Insert Compatibility: N123F2-0250-0002-CM, QS-RF123F17-1616BHP, 2.7559 in Overall Length, Rectangular Shank, 0.6299 in H x 0.6299 in W Shank, F Insert Seat, Right Hand Cutting, 0.6692 in Maximum Depth of Cut, Steel
Alternate Catalog Number QS-RF123F17-1616BHP Catalog Number 6224910 Country of Origin DE Gross Weight Per Pack 0.3300 lb Head Length 26 mm Internal or External External Item Group 480 Material Steel Series CoroCut® 1-2 QS Toolholder Style QS-R/LF123..BHP UPC 11 69826268270 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Direction Right Hand Insert Compatibility N123F2-0250-0002-CM Insert Seat Size F Maximum Depth of Cut 17 mm Overall Length 70 mm Screw Type Socket Head Shank Size 16 mm H x 16 mm W Shank Type Rectangular 0 deg body workpiece side 20 life cycle state Axial concentric coolant entry 80 bar coolant Axial inclined focused exit with nozzle coolant exit 90 deg cutting edge 26 mm minimum overhang 2.5 Nm torque 0 deg inclination 0 deg rake ANSI Code: QS-RF123F17-1616BHP ISO Code: QS-RF123F17-1616BHP
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | QS-RF123F17-1616BHP |
| Catalog Number | 6224910 |
| Country of Origin | DE |
| Gross Weight Per Pack | 0.3300 lb |
| Head Length | 26 mm |
| Internal or External | External |
| Item Group | 480 |
| Material | Steel |
| Series | CoroCut® 1-2 QS |
| Toolholder Style | QS-R/LF123..BHP |
| UPC 11 | 69826268270 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Direction | Right Hand |
| Insert Compatibility | N123F2-0250-0002-CM |
| Insert Seat Size | F |
| Maximum Depth of Cut | 17 mm |
| Overall Length | 70 mm |
| Screw Type | Socket Head |
| Shank Size | 16 mm H x 16 mm W |
| Shank Type | Rectangular |
| 0 deg body workpiece side |
| 20 life cycle state |
| Axial concentric coolant entry |
| 80 bar coolant |
| Axial inclined focused exit with nozzle coolant exit |
| 90 deg cutting edge |
| 26 mm minimum overhang |
| 2.5 Nm torque |
| 0 deg inclination |
| 0 deg rake |
| ANSI Code: QS-RF123F17-1616BHP |
| ISO Code: QS-RF123F17-1616BHP |
