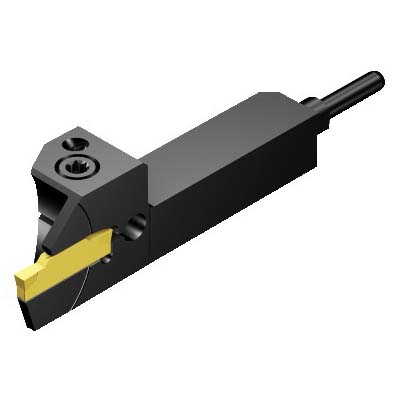

Sandvik Coromant 6224908 CoroCut® 1-2 QS Indexable Shank Tool, N123F2-0250-0002-CM insert, F Insert Seat, Right Hand
Custom_Product_Images_Illustration
Sandvik Coromant 6224908 CoroCut® 1-2 QS Indexable Shank Tool, N123F2-0250-0002-CM insert, F Insert Seat, Right Hand
SKU1246699
MFGR #6224908
$/ea
Sandvik Coromant Shank Tool, Indexable, Series: CoroCut® 1-2 QS, Insert Compatibility: N123F2-0250-0002-CM, QS-RF123F15-1212BHP, 2.7559 in Overall Length, Rectangular Shank, 0.4724 in H x 0.4724 in W Shank, F Insert Seat, Right Hand Cutting, 0.5905 in Maximum Depth of Cut, Steel
Sandvik Coromant Shank Tool, Indexable, Series: CoroCut® 1-2 QS, Insert Compatibility: N123F2-0250-0002-CM, QS-RF123F15-1212BHP, 2.7559 in Overall Length, Rectangular Shank, 0.4724 in H x 0.4724 in W Shank, F Insert Seat, Right Hand Cutting, 0.5905 in Maximum Depth of Cut, Steel
Alternate Catalog Number QS-RF123F15-1212BHP Catalog Number 6224908 Country of Origin DE Gross Weight Per Pack 0.2200 lb Head Length 20 mm Internal or External External Item Group 480 Material Steel Series CoroCut® 1-2 QS Toolholder Style QS-R/LF123..BHP Toolholder Type QS-R/LF123..BHP UPC 11 69826268269 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Direction Right Hand Insert Compatibility N123F2-0250-0002-CM Insert Seat Size F Maximum Depth of Cut 15 mm Overall Length 70 mm Screw Type Socket Head Shank Size 12 mm H x 12 mm W Shank Type Rectangular 0 deg body workpiece side 20 life cycle state Axial concentric coolant entry 80 bar coolant Axial inclined focused exit with nozzle coolant exit 90 deg cutting edge 20 mm minimum overhang 2.5 Nm torque 0 deg inclination 0 deg rake ANSI Code: QS-RF123F15-1212BHP ISO Code: QS-RF123F15-1212BHP
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | QS-RF123F15-1212BHP |
| Catalog Number | 6224908 |
| Country of Origin | DE |
| Gross Weight Per Pack | 0.2200 lb |
| Head Length | 20 mm |
| Internal or External | External |
| Item Group | 480 |
| Material | Steel |
| Series | CoroCut® 1-2 QS |
| Toolholder Style | QS-R/LF123..BHP |
| Toolholder Type | QS-R/LF123..BHP |
| UPC 11 | 69826268269 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Direction | Right Hand |
| Insert Compatibility | N123F2-0250-0002-CM |
| Insert Seat Size | F |
| Maximum Depth of Cut | 15 mm |
| Overall Length | 70 mm |
| Screw Type | Socket Head |
| Shank Size | 12 mm H x 12 mm W |
| Shank Type | Rectangular |
| 0 deg body workpiece side |
| 20 life cycle state |
| Axial concentric coolant entry |
| 80 bar coolant |
| Axial inclined focused exit with nozzle coolant exit |
| 90 deg cutting edge |
| 20 mm minimum overhang |
| 2.5 Nm torque |
| 0 deg inclination |
| 0 deg rake |
| ANSI Code: QS-RF123F15-1212BHP |
| ISO Code: QS-RF123F15-1212BHP |
