Sandvik Coromant

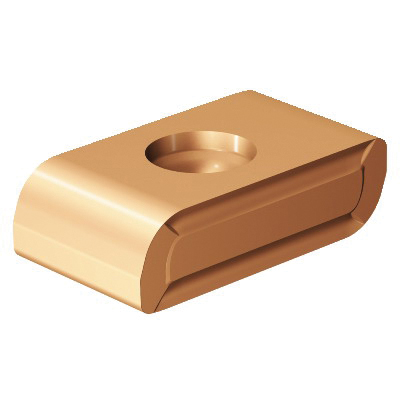

Sandvik Coromant 6215362 CoroMill® 170 Gear Milling Insert, 170-18-240870E-PRLN 1030, 170..E-PRLN Insert, Carbide, 1030, 170-18-240870E-PRLN 1030
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 6215362 CoroMill® 170 Gear Milling Insert, 170-18-240870E-PRLN 1030, 170..E-PRLN Insert, Carbide, 1030, 170-18-240870E-PRLN 1030
SKU1245766
MFGR #6215362
Your Cost: $50.89/ea
List: Sandvik Coromant Gear Milling Insert, Series: CoroMill® 170, 170..E-PRLN Insert, 0.551 in Inscribed Circle, 0.5511 in Thickness, 0.3149 in Width, 0.9448 in Length, Light Chipbreaker, 0.2755 in Corner Radius, 0 deg Rake, 0.2362 in Hole Dia, Manufacturer's Grade: 1030, ANSI Code: 170-18-240870E-PRLN 1030, ISO Code: 170-18-240870E-PRLN 1030, Neutral Hand, Carbide, PVD Coated, Material Grade: P
Sandvik Coromant Gear Milling Insert, Series: CoroMill® 170, 170..E-PRLN Insert, 0.551 in Inscribed Circle, 0.5511 in Thickness, 0.3149 in Width, 0.9448 in Length, Light Chipbreaker, 0.2755 in Corner Radius, 0 deg Rake, 0.2362 in Hole Dia, Manufacturer's Grade: 1030, ANSI Code: 170-18-240870E-PRLN 1030, ISO Code: 170-18-240870E-PRLN 1030, Neutral Hand, Carbide, PVD Coated, Material Grade: P
ANSI Code 170-18-240870E-PRLN 1030 Catalog Number 6215362 Corner Radius 0.275 in Country of Origin SE Finish PVD-TiAlN Coated Gross Weight Per Pack 0.0700 lb Hand of Insert Neutral Hole Diameter 0.236 in ISO Code 170-18-240870E-PRLN 1030 Material Application Steel Series CoroMill® 170 Thickness 0.551 in UPC 11 69826273910 Width 0.315 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker PRLN Inscribed Circle 0.551 in Insert Size 2408 Insert Style 170 Manufacturer's Grade 1030 Material Carbide Material Grade P Shape Parallelogram 0 deg clearance 24 mm L effective cutting edge 2-side cutting 20 life cycle state 2 corner 4 cutting edge
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ANSI Code | 170-18-240870E-PRLN 1030 |
| Catalog Number | 6215362 |
| Corner Radius | 0.275 in |
| Country of Origin | SE |
| Finish | PVD-TiAlN Coated |
| Gross Weight Per Pack | 0.0700 lb |
| Hand of Insert | Neutral |
| Hole Diameter | 0.236 in |
| ISO Code | 170-18-240870E-PRLN 1030 |
| Material Application | Steel |
| Series | CoroMill® 170 |
| Thickness | 0.551 in |
| UPC 11 | 69826273910 |
| Width | 0.315 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | PRLN |
| Inscribed Circle | 0.551 in |
| Insert Size | 2408 |
| Insert Style | 170 |
| Manufacturer's Grade | 1030 |
| Material | Carbide |
| Material Grade | P |
| Shape | Parallelogram |
| 0 deg clearance |
| 24 mm L effective cutting edge |
| 2-side cutting |
| 20 life cycle state |
| 2 corner |
| 4 cutting edge |
