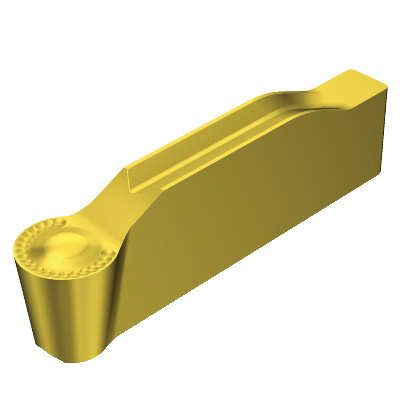

Sandvik Coromant 6199517 CoroCut® 1-2, N123J1-0600-RO S05F, N123x1-RO Insert, Carbide, 0.1102 in Max Depth of Cut, S
N123 Profiling Inserts
1247164
MFG #: 6199517
Sandvik Coromant
37.01000
/ ea
Sandvik Coromant Profiling Insert, Series: CoroCut® 1-2, N123x1-RO Insert, 0.1102 in Maximum Depth of Cut, 0.1712 in Thickness, RO Chipbreaker, ANSI Code: N123J1-0600-RO S05F, 0.1181 in Corner Radius, Manufacturer's Grade: S05F, Neutral Hand, Carbide, MTCVD Coated, Material Grade: S
- Features
| Versatile parting and grooving |
| Cost efficiency with two edges |
| Secure and efficient machining |
| 6 mm w cutting |
| E cutting edge condition |
| Finishing operation |
| Concave clamping |
| -0.02 mm W cutting lower tolerance |
| 0.02 mm W cutting upper tolerance |
| -0.01 mm corner radius lower tolerance |
| 0.01 mm corner radius upper tolerance |
| 90 deg ramping |
| 1 edge |
| 0.15 - 0.23 mm/r cutting feed |
| 7 insert mounting style code |
| J insert seat size |
| ANSI Code: N123J1-0600-RO S05F |
| ISO Code: N123J1-0600-RO S05F |
