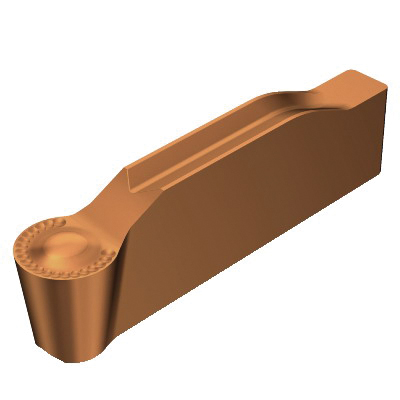

Sandvik Coromant 6198472 CoroCut® 1-2, N123H1-0475-RO 1125, N123x1-RO Insert, Carbide, 0.0866 in Max Depth of Cut, K/M/P
N123 Profiling Inserts
1247182
MFG #: 6198472
Sandvik Coromant
33.48000
/ ea
Sandvik Coromant Profiling Insert, Series: CoroCut® 1-2, N123x1-RO Insert, 0.0866 in Maximum Depth of Cut, 0.1712 in Thickness, RO Chipbreaker, ANSI Code: N123H1-0475-RO 1125, 0.0935 in Corner Radius, Manufacturer's Grade: 1125, Neutral Hand, Carbide, PVD Coated, Material Grade: K/M/P
- Features
| Versatile parting and grooving |
| Cost efficiency with two edges |
| Secure and efficient machining |
| 4.75 mm W cutting |
| E cutting edge condition |
| Finishing operation |
| Concave clamping |
| -0.02 mm W cutting lower tolerance |
| 0.02 mm W cutting upper tolerance |
| -0.01 mm corner radius lower tolerance |
| 0.01 mm corner radius upper tolerance |
| 90 deg ramping |
| 1 edge |
| 0.1 - 0.18 mm/r cutting feed |
| 7 insert mounting style code |
| H insert seat size |
| ANSI Code: N123H1-0475-RO 1125 |
| ISO Code: N123H1-0475-RO 1125 |
