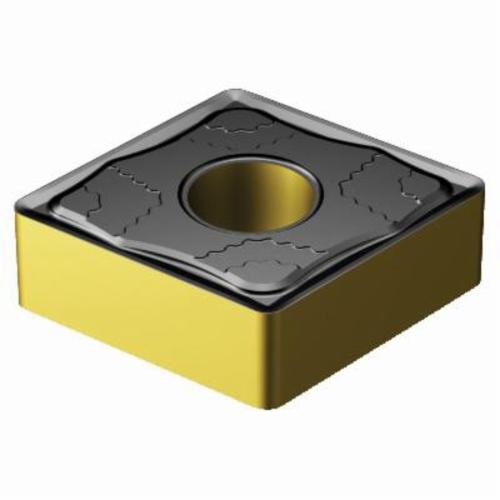

Sandvik Coromant 6198252 T-Max® P Negative Basic Shape Turning Insert, CNMG 433-PMC 4325, C-80 deg Diamond, CNMG Insert, 4325
Custom_Product_Images_Illustration
Sandvik Coromant 6198252 T-Max® P Negative Basic Shape Turning Insert, CNMG 433-PMC 4325, C-80 deg Diamond, CNMG Insert, 4325
SKU1250166
MFGR #6198252
Your Cost: $16.66/ea
List: Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, CNMG Insert, C-80 deg Diamond, 3 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.1874 in Thickness, 0.5077 in Length, PMC Chipbreaker, 0.0468 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: 4325, ANSI Code: CNMG 433-PMC 4325, ISO Code: CNMG 12 04 12-PMC 4325, 80 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K/P
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, CNMG Insert, C-80 deg Diamond, 3 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.1874 in Thickness, 0.5077 in Length, PMC Chipbreaker, 0.0468 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: 4325, ANSI Code: CNMG 433-PMC 4325, ISO Code: CNMG 12 04 12-PMC 4325, 80 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K/P
Alternate Catalog Number CNMG 433-PMC 4325 ANSI Code CNMG 433-PMC 4325 Catalog Number 6198252 Corner Radius 0.0468 in Country of Origin SE Finish MTCVD Coated Gross Weight Per Pack 0.0200 lb Hand of Insert Neutral Hole Diameter 0.2029 in Included Angle 80 deg ISO Code CNMG 12 04 12-PMC 4325 Item Group 112 Length 0.5077 in Relief Angle 0 deg Series T-Max® P Thickness 0.1874 in Type Negative Basic Shape Width PMC Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker PMC Cutting Direction Neutral For Use On Cast Iron and Steel Inscribed Circle 1/2 in Insert Size CNMG Insert Style CNMG Manufacturer's Grade 4325 Material Carbide Material Grade K/P Maximum Depth of Cut 3 mm Rake Negative Seat Size 12 Shape C-80 deg Diamond Straight hole and non-flat surface clamping interface 2-side cutting +/-0.13 mm THK and +/-0.08 mm inscribed circle tolerance ER treated cutting edge Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials For external turning operations and internal machining 0.15 - 0.5 mm/r cutting feed 20 life cycle state
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | CNMG 433-PMC 4325 |
| ANSI Code | CNMG 433-PMC 4325 |
| Catalog Number | 6198252 |
| Corner Radius | 0.0468 in |
| Country of Origin | SE |
| Finish | MTCVD Coated |
| Gross Weight Per Pack | 0.0200 lb |
| Hand of Insert | Neutral |
| Hole Diameter | 0.2029 in |
| Included Angle | 80 deg |
| ISO Code | CNMG 12 04 12-PMC 4325 |
| Item Group | 112 |
| Length | 0.5077 in |
| Relief Angle | 0 deg |
| Series | T-Max® P |
| Thickness | 0.1874 in |
| Type | Negative Basic Shape |
| Width | PMC |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | PMC |
| Cutting Direction | Neutral |
| For Use On | Cast Iron and Steel |
| Inscribed Circle | 1/2 in |
| Insert Size | CNMG |
| Insert Style | CNMG |
| Manufacturer's Grade | 4325 |
| Material | Carbide |
| Material Grade | K/P |
| Maximum Depth of Cut | 3 mm |
| Rake | Negative |
| Seat Size | 12 |
| Shape | C-80 deg Diamond |
| Straight hole and non-flat surface clamping interface |
| 2-side cutting |
| +/-0.13 mm THK and +/-0.08 mm inscribed circle tolerance |
| ER treated cutting edge |
| Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials |
| For external turning operations and internal machining |
| 0.15 - 0.5 mm/r cutting feed |
| 20 life cycle state |
