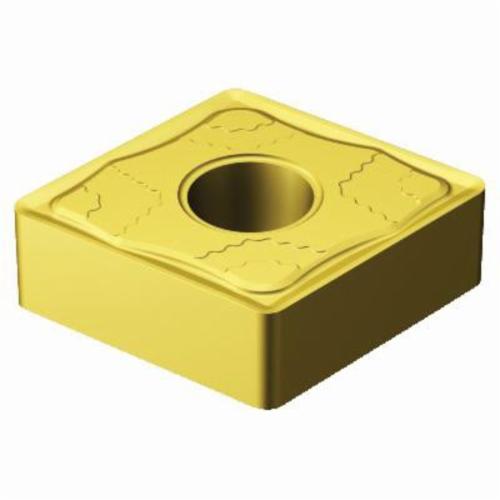

Sandvik Coromant 6198198 T-Max® P Negative Basic Shape Turning Insert, CNMG 544-MMC 2025, C-80 deg Diamond, CNMG Insert
Custom_Product_Images_Illustration
Sandvik Coromant 6198198 T-Max® P Negative Basic Shape Turning Insert, CNMG 544-MMC 2025, C-80 deg Diamond, CNMG Insert
SKU1229556
MFGR #6198198
Your Cost: $19.34/ea
List: Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, CNMG Insert, C-80 deg Diamond, 4 mm Maximum Depth of Cut, 5/8 in Inscribed Circle, 1/4 in Thickness, 0.6346 in Length, MMC Chipbreaker, 0.0624 in Corner Radius, 1/4 in Hole Dia, Manufacturer's Grade: 2025, ANSI Code: CNMG 544-MMC 2025, ISO Code: CNMG 16 06 16-MMC 2025, 80 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: M
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, CNMG Insert, C-80 deg Diamond, 4 mm Maximum Depth of Cut, 5/8 in Inscribed Circle, 1/4 in Thickness, 0.6346 in Length, MMC Chipbreaker, 0.0624 in Corner Radius, 1/4 in Hole Dia, Manufacturer's Grade: 2025, ANSI Code: CNMG 544-MMC 2025, ISO Code: CNMG 16 06 16-MMC 2025, 80 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: M
ANSI Code CNMG 544-MMC 2025 Catalog Number 6198198 Corner Radius 0.0624 in Country of Origin SE Finish MTCVD Coated Gross Weight Per Pack 0.0400 lb Hand of Insert Neutral Hole Diameter 1/4 in Included Angle 80 deg ISO Code CNMG 16 06 16-MMC 2025 Length 0.6346 in Relief Angle 0 deg Series T-Max® P Thickness 1/4 in Type Negative Basic Shape UPC 11 69826267687 Width MMC Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker MMC Inscribed Circle 5/8 in Insert Size C - 80 deg Diamond Insert Style CNMG Manufacturer's Grade 2025 Material Carbide Material Grade M Maximum Depth of Cut 4 mm Shape C-80 deg Diamond Straight hole and non-flat surface clamping interface 20 life cycle state 2-side cutting +/-0.13 mm THK and +/-0.10 mm inscribed circle tolerance ER treated cutting edge Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials For external turning operations and internal machining 0.2 - 0.55 mm/r cutting feed
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ANSI Code | CNMG 544-MMC 2025 |
| Catalog Number | 6198198 |
| Corner Radius | 0.0624 in |
| Country of Origin | SE |
| Finish | MTCVD Coated |
| Gross Weight Per Pack | 0.0400 lb |
| Hand of Insert | Neutral |
| Hole Diameter | 1/4 in |
| Included Angle | 80 deg |
| ISO Code | CNMG 16 06 16-MMC 2025 |
| Length | 0.6346 in |
| Relief Angle | 0 deg |
| Series | T-Max® P |
| Thickness | 1/4 in |
| Type | Negative Basic Shape |
| UPC 11 | 69826267687 |
| Width | MMC |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | MMC |
| Inscribed Circle | 5/8 in |
| Insert Size | C - 80 deg Diamond |
| Insert Style | CNMG |
| Manufacturer's Grade | 2025 |
| Material | Carbide |
| Material Grade | M |
| Maximum Depth of Cut | 4 mm |
| Shape | C-80 deg Diamond |
| Straight hole and non-flat surface clamping interface |
| 20 life cycle state |
| 2-side cutting |
| +/-0.13 mm THK and +/-0.10 mm inscribed circle tolerance |
| ER treated cutting edge |
| Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials |
| For external turning operations and internal machining |
| 0.2 - 0.55 mm/r cutting feed |
