Sandvik Coromant

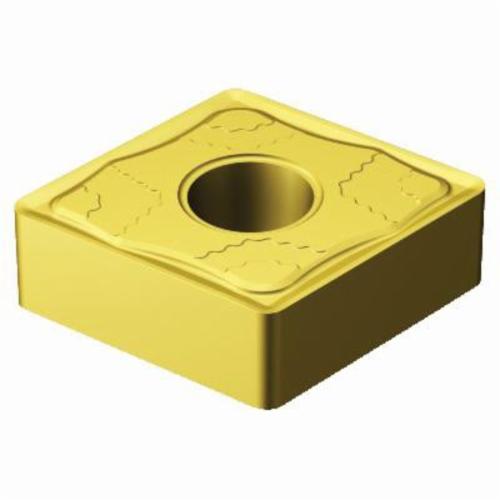

Sandvik Coromant 6198193 T-Max® P Negative Basic Shape Turning Insert, CNMG 431-MMC 2025, C-80 deg Diamond, CNMG Insert
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 6198193 T-Max® P Negative Basic Shape Turning Insert, CNMG 431-MMC 2025, C-80 deg Diamond, CNMG Insert
SKU1229572
MFGR #6198193
Your Cost: $16.76/ea
List: Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, CNMG Insert, C-80 deg Diamond, 3 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.1874 in Thickness, 0.5077 in Length, MMC Chipbreaker, 0.0156 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: 2025, ANSI Code: CNMG 431-MMC 2025, ISO Code: CNMG 12 04 04-MMC 2025, 80 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: M
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, CNMG Insert, C-80 deg Diamond, 3 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.1874 in Thickness, 0.5077 in Length, MMC Chipbreaker, 0.0156 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: 2025, ANSI Code: CNMG 431-MMC 2025, ISO Code: CNMG 12 04 04-MMC 2025, 80 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: M
Alternate Catalog Number CNMG 431-MMC 2025 ANSI Code CNMG 431-MMC 2025 Catalog Number 6198193 Corner Radius 0.0156 in Country of Origin SE Finish MTCVD Coated Gross Weight Per Pack 0.0200 lb Hand of Insert Neutral Hole Diameter 0.2029 in Included Angle 80 deg ISO Code CNMG 12 04 04-MMC 2025 Item Group 110 Length 0.5077 in Relief Angle 0 deg Series T-Max® P Thickness 0.1874 in Type Negative Basic Shape UPC 11 69826267672 Width MMC Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker MMC Cutting Direction Neutral For Use On Stainless Steel Inscribed Circle 1/2 in Insert Size C - 80 deg Diamond Insert Style CNMG Manufacturer's Grade 2025 Material Carbide Material Grade M Maximum Depth of Cut 3 mm Rake Negative Seat Size 12 Shape C-80 deg Diamond Straight hole and non-flat surface clamping interface 20 life cycle state 2-side cutting +/-0.13 mm THK and +/-0.08 mm inscribed circle tolerance ER treated cutting edge Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials For external turning operations and internal machining 0.1 - 0.4 mm/r cutting feed
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | CNMG 431-MMC 2025 |
| ANSI Code | CNMG 431-MMC 2025 |
| Catalog Number | 6198193 |
| Corner Radius | 0.0156 in |
| Country of Origin | SE |
| Finish | MTCVD Coated |
| Gross Weight Per Pack | 0.0200 lb |
| Hand of Insert | Neutral |
| Hole Diameter | 0.2029 in |
| Included Angle | 80 deg |
| ISO Code | CNMG 12 04 04-MMC 2025 |
| Item Group | 110 |
| Length | 0.5077 in |
| Relief Angle | 0 deg |
| Series | T-Max® P |
| Thickness | 0.1874 in |
| Type | Negative Basic Shape |
| UPC 11 | 69826267672 |
| Width | MMC |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | MMC |
| Cutting Direction | Neutral |
| For Use On | Stainless Steel |
| Inscribed Circle | 1/2 in |
| Insert Size | C - 80 deg Diamond |
| Insert Style | CNMG |
| Manufacturer's Grade | 2025 |
| Material | Carbide |
| Material Grade | M |
| Maximum Depth of Cut | 3 mm |
| Rake | Negative |
| Seat Size | 12 |
| Shape | C-80 deg Diamond |
| Straight hole and non-flat surface clamping interface |
| 20 life cycle state |
| 2-side cutting |
| +/-0.13 mm THK and +/-0.08 mm inscribed circle tolerance |
| ER treated cutting edge |
| Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials |
| For external turning operations and internal machining |
| 0.1 - 0.4 mm/r cutting feed |
