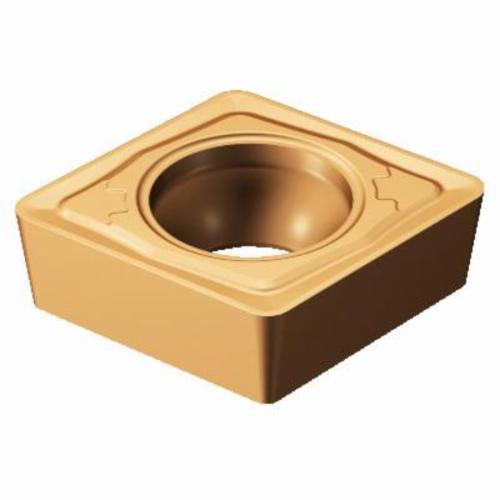

Sandvik Coromant 6198178 CoroTurn® 107 Basic Shape Positive Turning Insert, CCMT 3(2.5)1-SMC 1115, C-80 deg Diamond, CCMT Insert
Custom_Product_Images_Illustration
Sandvik Coromant 6198178 CoroTurn® 107 Basic Shape Positive Turning Insert, CCMT 3(2.5)1-SMC 1115, C-80 deg Diamond, CCMT Insert
SKU1229586
MFGR #6198178
$/ea
Sandvik Coromant Turning Insert, Basic Shape Positive, Series: CoroTurn® 107, CCMT Insert, C-80 deg Diamond, 3 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.1562 in Thickness, 0.3807 in Length, SMC Chipbreaker, 0.0156 in Corner Radius, 0.1732 in Hole Dia, Manufacturer's Grade: 1115, ANSI Code: CCMT 3(2.5)1-SMC 1115, ISO Code: CCMT 09 T3 04-SMC 1115, 80 deg Included Angle, 7 deg Relief Angle, Neutral Hand, Carbide, PVD Coated, Material Grade: S
Sandvik Coromant Turning Insert, Basic Shape Positive, Series: CoroTurn® 107, CCMT Insert, C-80 deg Diamond, 3 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.1562 in Thickness, 0.3807 in Length, SMC Chipbreaker, 0.0156 in Corner Radius, 0.1732 in Hole Dia, Manufacturer's Grade: 1115, ANSI Code: CCMT 3(2.5)1-SMC 1115, ISO Code: CCMT 09 T3 04-SMC 1115, 80 deg Included Angle, 7 deg Relief Angle, Neutral Hand, Carbide, PVD Coated, Material Grade: S
Alternate Catalog Number CCMT 3(2.5)1-SMC 1115 ANSI Code CCMT 3(2.5)1-SMC 1115 Catalog Number 6198178 Corner Radius 0.0156 in Country of Origin SE Finish PVD Coated Gross Weight Per Pack 0.0100 lb Hand of Insert Neutral Hole Diameter 0.1732 in Included Angle 80 deg ISO Code CCMT 09 T3 04-SMC 1115 Item Group 120 Length 0.3807 in Relief Angle 7 deg Series CoroTurn® 107 Thickness 0.1562 in Type Basic Shape Positive UPC 11 69826267653 Width SMC Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker SMC Inscribed Circle 3/8 in Insert Size CCMT Insert Style CCMT Manufacturer's Grade 1115 Material Carbide Material Grade S Maximum Depth of Cut 3 mm Shape C-80 deg Diamond 40 - 60 deg countersunk hole and non-flat surface clamping interface 1-side cutting +/-0.13 mm THK and +/-0.05 mm inscribed circle tolerance ER treated cutting edge Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials For external machining of small, long, slender components and internal machining The positive insert shape combines low cutting forces with good edge strength The screw clamping ensures stability and unobstructed chip flow 0.1 - 0.3 mm/r cutting feed 20 life cycle state
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | CCMT 3(2.5)1-SMC 1115 |
| ANSI Code | CCMT 3(2.5)1-SMC 1115 |
| Catalog Number | 6198178 |
| Corner Radius | 0.0156 in |
| Country of Origin | SE |
| Finish | PVD Coated |
| Gross Weight Per Pack | 0.0100 lb |
| Hand of Insert | Neutral |
| Hole Diameter | 0.1732 in |
| Included Angle | 80 deg |
| ISO Code | CCMT 09 T3 04-SMC 1115 |
| Item Group | 120 |
| Length | 0.3807 in |
| Relief Angle | 7 deg |
| Series | CoroTurn® 107 |
| Thickness | 0.1562 in |
| Type | Basic Shape Positive |
| UPC 11 | 69826267653 |
| Width | SMC |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | SMC |
| Inscribed Circle | 3/8 in |
| Insert Size | CCMT |
| Insert Style | CCMT |
| Manufacturer's Grade | 1115 |
| Material | Carbide |
| Material Grade | S |
| Maximum Depth of Cut | 3 mm |
| Shape | C-80 deg Diamond |
| 40 - 60 deg countersunk hole and non-flat surface clamping interface |
| 1-side cutting |
| +/-0.13 mm THK and +/-0.05 mm inscribed circle tolerance |
| ER treated cutting edge |
| Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials |
| For external machining of small, long, slender components and internal machining |
| The positive insert shape combines low cutting forces with good edge strength |
| The screw clamping ensures stability and unobstructed chip flow |
| 0.1 - 0.3 mm/r cutting feed |
| 20 life cycle state |
