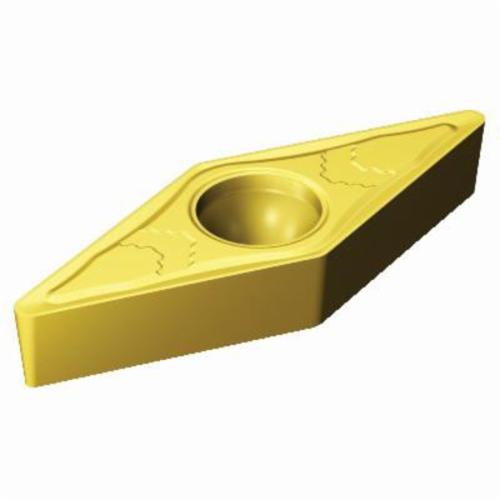

Sandvik Coromant 6198171 CoroTurn® 107 Basic Shape Positive Turning Insert, VBMT 333-MMC 2025, V-35 deg Diamond, VBMT Insert
Custom_Product_Images_Illustration
Sandvik Coromant 6198171 CoroTurn® 107 Basic Shape Positive Turning Insert, VBMT 333-MMC 2025, V-35 deg Diamond, VBMT Insert
SKU1246968
MFGR #6198171
Your Cost: $17.59/ea
List: Sandvik Coromant Turning Insert, Basic Shape Positive, Series: CoroTurn® 107, VBMT Insert, V-35 deg Diamond, 3 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.1874 in Thickness, 0.6537 in Length, MMC Chipbreaker, 0.0468 in Corner Radius, 0.1732 in Hole Dia, Manufacturer's Grade: 2025, ANSI Code: VBMT 333-MMC 2025, ISO Code: VBMT 16 04 12-MMC 2025, 35 deg Included Angle, 5 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: M
Sandvik Coromant Turning Insert, Basic Shape Positive, Series: CoroTurn® 107, VBMT Insert, V-35 deg Diamond, 3 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.1874 in Thickness, 0.6537 in Length, MMC Chipbreaker, 0.0468 in Corner Radius, 0.1732 in Hole Dia, Manufacturer's Grade: 2025, ANSI Code: VBMT 333-MMC 2025, ISO Code: VBMT 16 04 12-MMC 2025, 35 deg Included Angle, 5 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: M
ANSI Code VBMT 333-MMC 2025 Catalog Number 6198171 Corner Radius 0.047 in Country of Origin SE Finish CVD-TiCN+Al2O3+TiN Coated Gross Weight Per Pack 0.2300 lb Hole Diameter 0.1732 in Included Angle 35 ° ISO Code VBMT 16 04 12-MMC 2025 Length 0.6537 in Relief Angle 5 ° Series CoroTurn® 107 Thickness 0.187 in Type 1-Sided Basic Shape UPC 11 69826268769 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker MMC Cutting Direction Neutral For Use On Stainless Steel Inscribed Circle 3/8 in Insert Size 333 Insert Style VBMT Manufacturer's Grade 2025 Material Carbide Material Grade M Maximum Depth of Cut 3 mm Rake Positive Seat Size 16 Shape Diamond 40 - 60 deg countersunk hole and non-flat surface clamping interface 1-side cutting +/-0.13 mm THK and +/-0.05 mm inscribed circle tolerance ER treated cutting edge Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials For external machining of small, long, slender components and internal machining The positive insert shape combines low cutting forces with good edge strength The screw clamping ensures stability and unobstructed chip flow 0.1 - 0.3 mm/r cutting feed 20 life cycle state
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ANSI Code | VBMT 333-MMC 2025 |
| Catalog Number | 6198171 |
| Corner Radius | 0.047 in |
| Country of Origin | SE |
| Finish | CVD-TiCN+Al2O3+TiN Coated |
| Gross Weight Per Pack | 0.2300 lb |
| Hole Diameter | 0.1732 in |
| Included Angle | 35 ° |
| ISO Code | VBMT 16 04 12-MMC 2025 |
| Length | 0.6537 in |
| Relief Angle | 5 ° |
| Series | CoroTurn® 107 |
| Thickness | 0.187 in |
| Type | 1-Sided Basic Shape |
| UPC 11 | 69826268769 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | MMC |
| Cutting Direction | Neutral |
| For Use On | Stainless Steel |
| Inscribed Circle | 3/8 in |
| Insert Size | 333 |
| Insert Style | VBMT |
| Manufacturer's Grade | 2025 |
| Material | Carbide |
| Material Grade | M |
| Maximum Depth of Cut | 3 mm |
| Rake | Positive |
| Seat Size | 16 |
| Shape | Diamond |
| 40 - 60 deg countersunk hole and non-flat surface clamping interface |
| 1-side cutting |
| +/-0.13 mm THK and +/-0.05 mm inscribed circle tolerance |
| ER treated cutting edge |
| Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials |
| For external machining of small, long, slender components and internal machining |
| The positive insert shape combines low cutting forces with good edge strength |
| The screw clamping ensures stability and unobstructed chip flow |
| 0.1 - 0.3 mm/r cutting feed |
| 20 life cycle state |
