Sandvik Coromant 6196289 CoroTurn 107 Shank Tool, SSDCR/L..HP Tool Holder, SCMT 09T308 (MIIDM) and SCMT 3 (2.5)2 (MIIDN) Insert, 45 deg Lead, Rectangle Shank, Right Hand

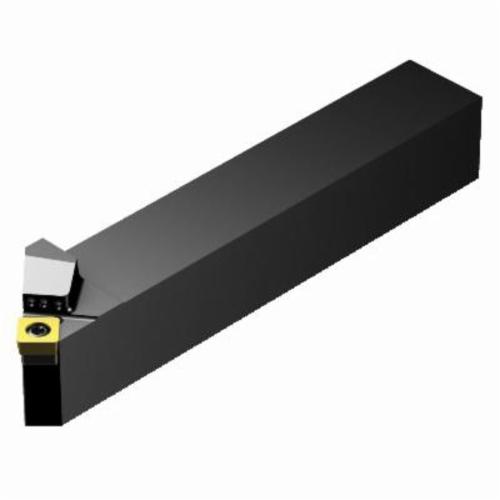

Custom_Product_Images_Illustration
Sandvik Coromant 6196289 CoroTurn 107 Shank Tool, SSDCR/L..HP Tool Holder, SCMT 09T308 (MIIDM) and SCMT 3 (2.5)2 (MIIDN) Insert, 45 deg Lead, Rectangle Shank, Right Hand
SKU1247460
MFGR #6196289
Your Cost: $275.33/ea
Sandvik Coromant Shank Tool, Series: CoroTurn 107, SSDCR/L..HP Tool Holder, 4 in Overall Length, Rectangle Shank, 5/8 in H x 5/8 in W Shank, Insert Compatibility: SCMT 09T308 (MIIDM) and SCMT 3 (2.5)2 (MIIDN), 3/8 Insert Seat, Right Hand Cutting, 45 deg Lead Angle, ANSI Code: SSDCR 10 3HP, ISO Code: SSDCR 10 3HP, 0 deg Rake, Steel
Sandvik Coromant Shank Tool, Series: CoroTurn 107, SSDCR/L..HP Tool Holder, 4 in Overall Length, Rectangle Shank, 5/8 in H x 5/8 in W Shank, Insert Compatibility: SCMT 09T308 (MIIDM) and SCMT 3 (2.5)2 (MIIDN), 3/8 Insert Seat, Right Hand Cutting, 45 deg Lead Angle, ANSI Code: SSDCR 10 3HP, ISO Code: SSDCR 10 3HP, 0 deg Rake, Steel
ANSI Code SSDCR 10 3HP Catalog Number 6196289 Country of Origin SE Gross Weight Per Pack 0.4900 lb Insert Seat Size 3/8 ISO Code SSDCR 10 3HP Material Steel Series CoroTurn 107 Shank Type Rectangle UPC 11 69826268618 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Direction Right Hand Insert Compatibility SCMT 09T308 (MIIDM) and SCMT 3 (2.5)2 (MIIDN) Lead Angle 45 deg Overall Length 4 in Rake 0 deg Shank Size 5/8 in H x 5/8 in W Tool Holder Style SSDCR/L..HP 0 deg body machine side 0 deg body workpiece side Axial concentric coolant entry Decentral focused coolant exit with nozzles 0 deg inclination 45 deg cutting edge 0 deg maximum ramping 20 life cycle state 21.9 mm maximum overhang 3 Nm torque 17.51 - 11.43 mm W functional 40 - 60 deg insert screw clamping S - Square insert ANSI Code: SSDCR 10 3HP ISO Code: SSDCR 10 3HP
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| ANSI Code | SSDCR 10 3HP |
| Catalog Number | 6196289 |
| Country of Origin | SE |
| Gross Weight Per Pack | 0.4900 lb |
| Insert Seat Size | 3/8 |
| ISO Code | SSDCR 10 3HP |
| Material | Steel |
| Series | CoroTurn 107 |
| Shank Type | Rectangle |
| UPC 11 | 69826268618 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Direction | Right Hand |
| Insert Compatibility | SCMT 09T308 (MIIDM) and SCMT 3 (2.5)2 (MIIDN) |
| Lead Angle | 45 deg |
| Overall Length | 4 in |
| Rake | 0 deg |
| Shank Size | 5/8 in H x 5/8 in W |
| Tool Holder Style | SSDCR/L..HP |
| 0 deg body machine side |
| 0 deg body workpiece side |
| Axial concentric coolant entry |
| Decentral focused coolant exit with nozzles |
| 0 deg inclination |
| 45 deg cutting edge |
| 0 deg maximum ramping |
| 20 life cycle state |
| 21.9 mm maximum overhang |
| 3 Nm torque |
| 17.51 - 11.43 mm W functional |
| 40 - 60 deg insert screw clamping |
| S - Square insert |
| ANSI Code: SSDCR 10 3HP |
| ISO Code: SSDCR 10 3HP |
