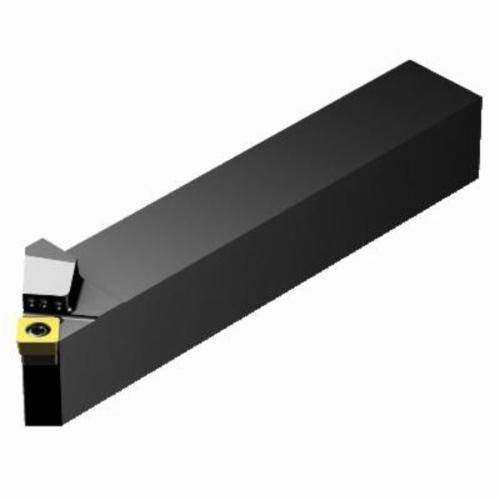

Sandvik Coromant 6189843 CoroTurn 107 Shank Tool, SSDCR/L..HP Tool Holder, SCMT 09T308 (MIIDM) and SCMT 3 (2.5)2 (MIIDN) Insert, 45 deg Lead, Rectangle Shank, Right Hand
Custom_Product_Images_Illustration
Sandvik Coromant 6189843 CoroTurn 107 Shank Tool, SSDCR/L..HP Tool Holder, SCMT 09T308 (MIIDM) and SCMT 3 (2.5)2 (MIIDN) Insert, 45 deg Lead, Rectangle Shank, Right Hand
SKU1247462
MFGR #6189843
Your Cost: $286.39/ea
Sandvik Coromant Shank Tool, Series: CoroTurn 107, SSDCR/L..HP Tool Holder, 3.9901 in Overall Length, Rectangle Shank, 0.6299 in H x 0.6299 in W Shank, Insert Compatibility: SCMT 09T308 (MIIDM) and SCMT 3 (2.5)2 (MIIDN), 3/8 Insert Seat, Right Hand Cutting, 45 deg Lead Angle, ANSI Code: SSDCR 1616H 09HP, ISO Code: SSDCR 1616H 09HP, 0 deg Rake, Steel
Sandvik Coromant Shank Tool, Series: CoroTurn 107, SSDCR/L..HP Tool Holder, 3.9901 in Overall Length, Rectangle Shank, 0.6299 in H x 0.6299 in W Shank, Insert Compatibility: SCMT 09T308 (MIIDM) and SCMT 3 (2.5)2 (MIIDN), 3/8 Insert Seat, Right Hand Cutting, 45 deg Lead Angle, ANSI Code: SSDCR 1616H 09HP, ISO Code: SSDCR 1616H 09HP, 0 deg Rake, Steel
ANSI Code SSDCR 1616H 09HP Catalog Number 6189843 Country of Origin SE Gross Weight Per Pack 0.4900 lb Insert Seat Size 3/8 ISO Code SSDCR 1616H 09HP Material Steel Series CoroTurn 107 Shank Type Rectangle UPC 11 69826268619 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Direction Right Hand Insert Compatibility SCMT 09T308 (MIIDM) and SCMT 3 (2.5)2 (MIIDN) Lead Angle 45 deg Overall Length 3.9901 in Rake 0 deg Shank Size 0.6299 in H x 0.6299 in W Tool Holder Style SSDCR/L..HP 0 deg body machine side 0 deg body workpiece side Axial concentric coolant entry Decentral focused coolant exit with nozzles 0 deg inclination 45 deg cutting edge 0 deg maximum ramping 20 life cycle state 21.2 mm maximum overhang 3 Nm torque 17 - 10.92 mm W functional 40 - 60 deg insert screw clamping S - Square insert ANSI Code: SSDCR 1616H 09HP ISO Code: SSDCR 1616H 09HP
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| ANSI Code | SSDCR 1616H 09HP |
| Catalog Number | 6189843 |
| Country of Origin | SE |
| Gross Weight Per Pack | 0.4900 lb |
| Insert Seat Size | 3/8 |
| ISO Code | SSDCR 1616H 09HP |
| Material | Steel |
| Series | CoroTurn 107 |
| Shank Type | Rectangle |
| UPC 11 | 69826268619 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Direction | Right Hand |
| Insert Compatibility | SCMT 09T308 (MIIDM) and SCMT 3 (2.5)2 (MIIDN) |
| Lead Angle | 45 deg |
| Overall Length | 3.9901 in |
| Rake | 0 deg |
| Shank Size | 0.6299 in H x 0.6299 in W |
| Tool Holder Style | SSDCR/L..HP |
| 0 deg body machine side |
| 0 deg body workpiece side |
| Axial concentric coolant entry |
| Decentral focused coolant exit with nozzles |
| 0 deg inclination |
| 45 deg cutting edge |
| 0 deg maximum ramping |
| 20 life cycle state |
| 21.2 mm maximum overhang |
| 3 Nm torque |
| 17 - 10.92 mm W functional |
| 40 - 60 deg insert screw clamping |
| S - Square insert |
| ANSI Code: SSDCR 1616H 09HP |
| ISO Code: SSDCR 1616H 09HP |
