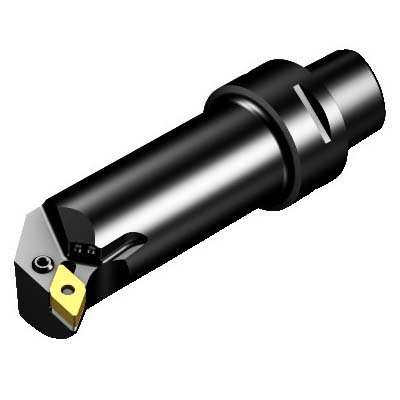

Sandvik Coromant 6188724 T-Max® P Turning Cutting Unit, 5.5118 in, 7.0078 in OAL, Right Hand, DNMG 150608 Insert
Custom_Product_Images_Illustration
Sandvik Coromant 6188724 T-Max® P Turning Cutting Unit, 5.5118 in, 7.0078 in OAL, Right Hand, DNMG 150608 Insert
SKU1229037
MFGR #6188724
Your Cost: $1,039.52/ea
Sandvik Coromant Turning Cutting Unit, Series: T-Max® P, 5.5118 in Head Length/Projection, 7.0078 in Overall Length, D-55 deg Diamond Insert, Insert Compatibility: DNMG 150608, Right Hand Cutting, 1.0629 in Center to Cutting Edge, Steel
Sandvik Coromant Turning Cutting Unit, Series: T-Max® P, 5.5118 in Head Length/Projection, 7.0078 in Overall Length, D-55 deg Diamond Insert, Insert Compatibility: DNMG 150608, Right Hand Cutting, 1.0629 in Center to Cutting Edge, Steel
Alternate Catalog Number C6-PDUNR-27140-15HP Catalog Number 6188724 Center to Cutting Height 63mm Country of Origin SE Finish T-Max® P Gross Weight Per Pack 3.7600 lb Head Length|Projection 5.5118 in Insert Style D-55 deg Diamond Item Group 410 Master Insert DNMG 15 06 08 Material Steel Overall Length 7.0078 in Series T-Max® P Torque Newton Meters 5 Type 140 mm UPC 11 69826267907 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Center to Cutting Edge 1.0629 in Cutting Direction Right Hand Insert Compatibility DNMG 150608 Insert Holding Method 0.500 Internal or External Internal Number of Inserts 27 mm System Size C6 0 deg body machine side 20 life cycle state 0 deg body workpiece side 40 mm Dia body Axial concentric and radial coolant entry 80 bar coolant Lever hole clamping Decentral focused coolant exit with nozzles 63 mm Dia connection 50 mm Dia minimum bore 93 deg cutting edge -11 deg inclination 109.5 mm L usable 27 deg ramping 5 Nm torque 1/2 in insert seat size 7 mm W usable 140 mm maximum overhang -3 deg lead -6 deg rake
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | C6-PDUNR-27140-15HP |
| Catalog Number | 6188724 |
| Center to Cutting Height | 63mm |
| Country of Origin | SE |
| Finish | T-Max® P |
| Gross Weight Per Pack | 3.7600 lb |
| Head Length|Projection | 5.5118 in |
| Insert Style | D-55 deg Diamond |
| Item Group | 410 |
| Master Insert | DNMG 15 06 08 |
| Material | Steel |
| Overall Length | 7.0078 in |
| Series | T-Max® P |
| Torque Newton Meters | 5 |
| Type | 140 mm |
| UPC 11 | 69826267907 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Center to Cutting Edge | 1.0629 in |
| Cutting Direction | Right Hand |
| Insert Compatibility | DNMG 150608 |
| Insert Holding Method | 0.500 |
| Internal or External | Internal |
| Number of Inserts | 27 mm |
| System Size | C6 |
| 0 deg body machine side |
| 20 life cycle state |
| 0 deg body workpiece side |
| 40 mm Dia body |
| Axial concentric and radial coolant entry |
| 80 bar coolant |
| Lever hole clamping |
| Decentral focused coolant exit with nozzles |
| 63 mm Dia connection |
| 50 mm Dia minimum bore |
| 93 deg cutting edge |
| -11 deg inclination |
| 109.5 mm L usable |
| 27 deg ramping |
| 5 Nm torque |
| 1/2 in insert seat size |
| 7 mm W usable |
| 140 mm maximum overhang |
| -3 deg lead |
| -6 deg rake |
