Sandvik Coromant

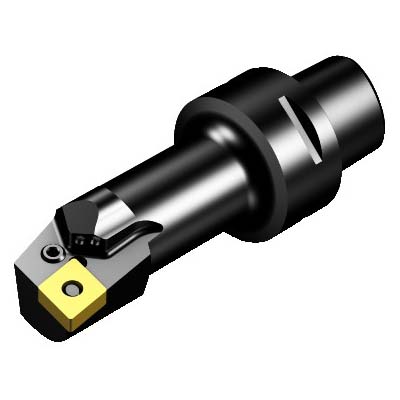

Sandvik Coromant 6188714 T-Max® P Turning Cutting Unit, 3.937 in, 5.433 in OAL, Right Hand, CNMG 120408 Insert
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 6188714 T-Max® P Turning Cutting Unit, 3.937 in, 5.433 in OAL, Right Hand, CNMG 120408 Insert
SKU1229052
MFGR #6188714
Your Cost: $1,039.52/ea
Sandvik Coromant Turning Cutting Unit, Series: T-Max® P, 3.937 in Head Length/Projection, 5.433 in Overall Length, C-80 deg Diamond Insert, Insert Compatibility: CNMG 120408, Right Hand Cutting, 0.6692 in Center to Cutting Edge, Steel
Sandvik Coromant Turning Cutting Unit, Series: T-Max® P, 3.937 in Head Length/Projection, 5.433 in Overall Length, C-80 deg Diamond Insert, Insert Compatibility: CNMG 120408, Right Hand Cutting, 0.6692 in Center to Cutting Edge, Steel
Alternate Catalog Number C6-PCLNR-17100-12HP Catalog Number 6188714 Center to Cutting Height 63mm Country of Origin SE Finish T-Max® P Gross Weight Per Pack 2.2700 lb Head Length|Projection 3.937 in Includes 0.500 Insert Style C-80 deg Diamond Item Group 410 Master Insert CNMG 12 04 08 Material Steel Overall Length 5.433 in Series T-Max® P Torque Newton Meters 5 Type Right Hand UPC 11 69826267897 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Center to Cutting Edge 0.6692 in Cutting Direction Right Hand Insert Compatibility CNMG 120408 Insert Holding Method Steel Number of Inserts 138 mm 0 deg body machine side 20 life cycle state 0 deg body workpiece side 25 mm Dia body Axial concentric and radial coolant entry 80 bar coolant Lever hole clamping Decentral focused coolant exit with nozzles 63 mm Dia connection 32 mm Dia minimum bore 95 deg cutting edge -11 deg inclination 67.5 mm L usable 0 deg ramping 5 Nm torque 1/2 in insert seat size 100 mm maximum overhang -5 deg lead -6 deg rake Bolt and segment clamping adaptive interface
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | C6-PCLNR-17100-12HP |
| Catalog Number | 6188714 |
| Center to Cutting Height | 63mm |
| Country of Origin | SE |
| Finish | T-Max® P |
| Gross Weight Per Pack | 2.2700 lb |
| Head Length|Projection | 3.937 in |
| Includes | 0.500 |
| Insert Style | C-80 deg Diamond |
| Item Group | 410 |
| Master Insert | CNMG 12 04 08 |
| Material | Steel |
| Overall Length | 5.433 in |
| Series | T-Max® P |
| Torque Newton Meters | 5 |
| Type | Right Hand |
| UPC 11 | 69826267897 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Center to Cutting Edge | 0.6692 in |
| Cutting Direction | Right Hand |
| Insert Compatibility | CNMG 120408 |
| Insert Holding Method | Steel |
| Number of Inserts | 138 mm |
| 0 deg body machine side |
| 20 life cycle state |
| 0 deg body workpiece side |
| 25 mm Dia body |
| Axial concentric and radial coolant entry |
| 80 bar coolant |
| Lever hole clamping |
| Decentral focused coolant exit with nozzles |
| 63 mm Dia connection |
| 32 mm Dia minimum bore |
| 95 deg cutting edge |
| -11 deg inclination |
| 67.5 mm L usable |
| 0 deg ramping |
| 5 Nm torque |
| 1/2 in insert seat size |
| 100 mm maximum overhang |
| -5 deg lead |
| -6 deg rake |
| Bolt and segment clamping adaptive interface |
