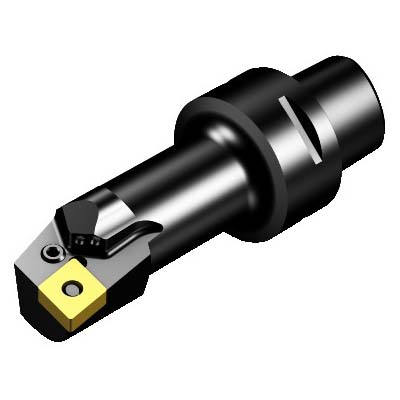

Sandvik Coromant 6188713 T-Max® P Turning Cutting Unit, 6.8897 in, 8.3858 in OAL, Left Hand, CNMG 160612 Insert
Custom_Product_Images_Illustration
Sandvik Coromant 6188713 T-Max® P Turning Cutting Unit, 6.8897 in, 8.3858 in OAL, Left Hand, CNMG 160612 Insert
SKU1229054
MFGR #6188713
$/ea
Sandvik Coromant Turning Cutting Unit, Series: T-Max® P, 6.8897 in Head Length/Projection, 8.3858 in Overall Length, C-80 deg Diamond Insert, Insert Compatibility: CNMG 160612, Left Hand Cutting, 1.3779 in Center to Cutting Edge, Steel
Sandvik Coromant Turning Cutting Unit, Series: T-Max® P, 6.8897 in Head Length/Projection, 8.3858 in Overall Length, C-80 deg Diamond Insert, Insert Compatibility: CNMG 160612, Left Hand Cutting, 1.3779 in Center to Cutting Edge, Steel
Alternate Catalog Number C6-PCLNL-35175-16HP Catalog Number 6188713 Center to Cutting Height 63mm Country of Origin SE Finish -6 Gross Weight Per Pack 5.9700 lb Head Length|Projection 6.8897 in Includes 0.625 Insert Style C-80 deg Diamond Item Group 410 Master Insert CNMG 16 06 12 Material Steel Overall Length 8.3858 in Series T-Max® P Torque Newton Meters 5 Type T-Max® P UPC 11 69826267896 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Center to Cutting Edge 1.3779 in Cutting Direction Left Hand Insert Compatibility CNMG 160612 Insert Holding Method Steel Internal or External Internal Number of Inserts CNMG 160612 System Size C6 0 deg body machine side 20 life cycle state 0 deg body workpiece side 50 mm Dia body Axial concentric and radial coolant entry 80 bar coolant Lever hole clamping Decentral focused coolant exit with nozzles 63 mm Dia connection 63 mm Dia minimum bore 95 deg cutting edge -11 deg inclination 146.7 mm L usable 0 deg ramping 5 Nm torque 5/8 in insert seat size 75 mm maximum overhang -5 deg lead -6 deg rake Bolt and segment clamping adaptive interface
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | C6-PCLNL-35175-16HP |
| Catalog Number | 6188713 |
| Center to Cutting Height | 63mm |
| Country of Origin | SE |
| Finish | -6 |
| Gross Weight Per Pack | 5.9700 lb |
| Head Length|Projection | 6.8897 in |
| Includes | 0.625 |
| Insert Style | C-80 deg Diamond |
| Item Group | 410 |
| Master Insert | CNMG 16 06 12 |
| Material | Steel |
| Overall Length | 8.3858 in |
| Series | T-Max® P |
| Torque Newton Meters | 5 |
| Type | T-Max® P |
| UPC 11 | 69826267896 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Center to Cutting Edge | 1.3779 in |
| Cutting Direction | Left Hand |
| Insert Compatibility | CNMG 160612 |
| Insert Holding Method | Steel |
| Internal or External | Internal |
| Number of Inserts | CNMG 160612 |
| System Size | C6 |
| 0 deg body machine side |
| 20 life cycle state |
| 0 deg body workpiece side |
| 50 mm Dia body |
| Axial concentric and radial coolant entry |
| 80 bar coolant |
| Lever hole clamping |
| Decentral focused coolant exit with nozzles |
| 63 mm Dia connection |
| 63 mm Dia minimum bore |
| 95 deg cutting edge |
| -11 deg inclination |
| 146.7 mm L usable |
| 0 deg ramping |
| 5 Nm torque |
| 5/8 in insert seat size |
| 75 mm maximum overhang |
| -5 deg lead |
| -6 deg rake |
| Bolt and segment clamping adaptive interface |
