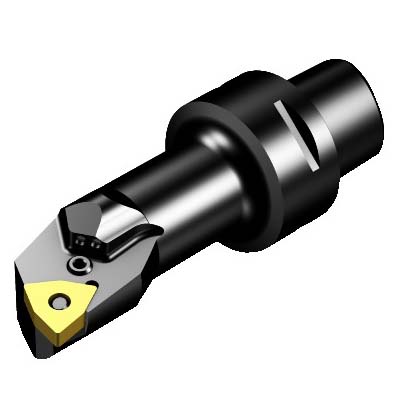

Sandvik Coromant 6188708 T-Max® P Turning Cutting Unit, 4.3307 in, 5.5118 in OAL, Left Hand, WNMG 080408 Insert
Custom_Product_Images_Illustration
Sandvik Coromant 6188708 T-Max® P Turning Cutting Unit, 4.3307 in, 5.5118 in OAL, Left Hand, WNMG 080408 Insert
SKU1229029
MFGR #6188708
$/ea
Sandvik Coromant Turning Cutting Unit, Series: T-Max® P, 4.3307 in Head Length/Projection, 5.5118 in Overall Length, W-Trigon Insert, Insert Compatibility: WNMG 080408, Left Hand Cutting, 0.8661 in Center to Cutting Edge, Steel
Sandvik Coromant Turning Cutting Unit, Series: T-Max® P, 4.3307 in Head Length/Projection, 5.5118 in Overall Length, W-Trigon Insert, Insert Compatibility: WNMG 080408, Left Hand Cutting, 0.8661 in Center to Cutting Edge, Steel
Alternate Catalog Number C5-PWLNL-22110-08HP Catalog Number 6188708 Center to Cutting Height 0.500 Country of Origin SE Finish T-Max® P Gross Weight Per Pack 1.9400 lb Head Length|Projection 4.3307 in Insert Style W-Trigon Item Group 410 Master Insert WNMG 08 04 08 Material Steel Overall Length 5.5118 in Series T-Max® P Torque Newton Meters 2 Type -6 UPC 11 69826267849 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Center to Cutting Edge 0.8661 in Cutting Direction Left Hand Insert Compatibility WNMG 080408 Insert Holding Method Steel Number of Inserts WNMG 080408 0 deg body machine side 20 life cycle state 0 deg body workpiece side 32 mm Dia body Axial concentric and radial coolant entry 80 bar coolant Lever hole clamping Decentral focused coolant exit with nozzles 50 mm Dia connection 40 mm Dia minimum bore 95 deg cutting edge -10 deg inclination 82.2 mm L usable 0 deg ramping 4.5 Nm torque 1/2 in insert seat size 110 mm maximum overhang -5 deg lead -6 deg rake Bolt and segment clamping adaptive interface
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | C5-PWLNL-22110-08HP |
| Catalog Number | 6188708 |
| Center to Cutting Height | 0.500 |
| Country of Origin | SE |
| Finish | T-Max® P |
| Gross Weight Per Pack | 1.9400 lb |
| Head Length|Projection | 4.3307 in |
| Insert Style | W-Trigon |
| Item Group | 410 |
| Master Insert | WNMG 08 04 08 |
| Material | Steel |
| Overall Length | 5.5118 in |
| Series | T-Max® P |
| Torque Newton Meters | 2 |
| Type | -6 |
| UPC 11 | 69826267849 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Center to Cutting Edge | 0.8661 in |
| Cutting Direction | Left Hand |
| Insert Compatibility | WNMG 080408 |
| Insert Holding Method | Steel |
| Number of Inserts | WNMG 080408 |
| 0 deg body machine side |
| 20 life cycle state |
| 0 deg body workpiece side |
| 32 mm Dia body |
| Axial concentric and radial coolant entry |
| 80 bar coolant |
| Lever hole clamping |
| Decentral focused coolant exit with nozzles |
| 50 mm Dia connection |
| 40 mm Dia minimum bore |
| 95 deg cutting edge |
| -10 deg inclination |
| 82.2 mm L usable |
| 0 deg ramping |
| 4.5 Nm torque |
| 1/2 in insert seat size |
| 110 mm maximum overhang |
| -5 deg lead |
| -6 deg rake |
| Bolt and segment clamping adaptive interface |
