Sandvik Coromant

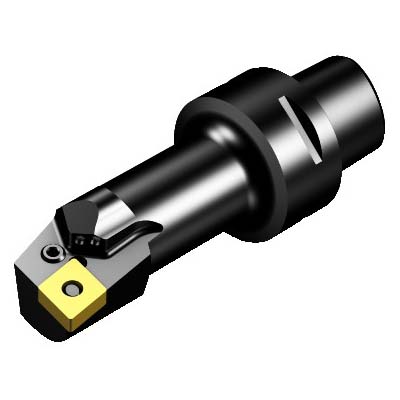

Sandvik Coromant 6188681 T-Max® P Turning Cutting Unit, 5.9055 in, 7.0866 in OAL, Left Hand, CNMG 160612 Insert
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 6188681 T-Max® P Turning Cutting Unit, 5.9055 in, 7.0866 in OAL, Left Hand, CNMG 160612 Insert
SKU1229753
MFGR #6188681
Your Cost: $905.95/ea
Sandvik Coromant Turning Cutting Unit, Series: T-Max® P, 5.9055 in Head Length/Projection, 7.0866 in Overall Length, C-80 deg Diamond Insert, Insert Compatibility: CNMG 160612, Left Hand Cutting, 1.3779 in Center to Cutting Edge, Steel
Sandvik Coromant Turning Cutting Unit, Series: T-Max® P, 5.9055 in Head Length/Projection, 7.0866 in Overall Length, C-80 deg Diamond Insert, Insert Compatibility: CNMG 160612, Left Hand Cutting, 1.3779 in Center to Cutting Edge, Steel
Alternate Catalog Number C5-PCLNL-35150-16HP Catalog Number 6188681 Center to Cutting Height 50mm Country of Origin SE Finish T-Max® P Gross Weight Per Pack 4.4400 lb Head Length|Projection 5.9055 in Includes 0.625 Insert Style C-80 deg Diamond Item Group 410 Master Insert CNMG 16 06 12 Material Steel Overall Length 7.0866 in Series T-Max® P Torque Newton Meters 5 Type 150 mm UPC 11 69826267822 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Center to Cutting Edge 1.3779 in Cutting Direction Left Hand Insert Compatibility CNMG 160612 Insert Holding Method Steel Internal or External Internal Number of Inserts -6 System Size C5 0 deg body machine side 20 life cycle state 0 deg body workpiece side 50 mm Dia body Axial concentric and radial coolant entry 80 bar coolant Lever hole clamping Decentral focused coolant exit with nozzles 50 mm Dia connection 63 mm Dia minimum bore 95 deg cutting edge -11 deg inclination 129 mm L usable 0 deg ramping 5 Nm torque 5/8 in insert seat size 150 mm maximum overhang -5 deg lead -6 deg rake Bolt and segment clamping adaptive interface
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | C5-PCLNL-35150-16HP |
| Catalog Number | 6188681 |
| Center to Cutting Height | 50mm |
| Country of Origin | SE |
| Finish | T-Max® P |
| Gross Weight Per Pack | 4.4400 lb |
| Head Length|Projection | 5.9055 in |
| Includes | 0.625 |
| Insert Style | C-80 deg Diamond |
| Item Group | 410 |
| Master Insert | CNMG 16 06 12 |
| Material | Steel |
| Overall Length | 7.0866 in |
| Series | T-Max® P |
| Torque Newton Meters | 5 |
| Type | 150 mm |
| UPC 11 | 69826267822 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Center to Cutting Edge | 1.3779 in |
| Cutting Direction | Left Hand |
| Insert Compatibility | CNMG 160612 |
| Insert Holding Method | Steel |
| Internal or External | Internal |
| Number of Inserts | -6 |
| System Size | C5 |
| 0 deg body machine side |
| 20 life cycle state |
| 0 deg body workpiece side |
| 50 mm Dia body |
| Axial concentric and radial coolant entry |
| 80 bar coolant |
| Lever hole clamping |
| Decentral focused coolant exit with nozzles |
| 50 mm Dia connection |
| 63 mm Dia minimum bore |
| 95 deg cutting edge |
| -11 deg inclination |
| 129 mm L usable |
| 0 deg ramping |
| 5 Nm torque |
| 5/8 in insert seat size |
| 150 mm maximum overhang |
| -5 deg lead |
| -6 deg rake |
| Bolt and segment clamping adaptive interface |
