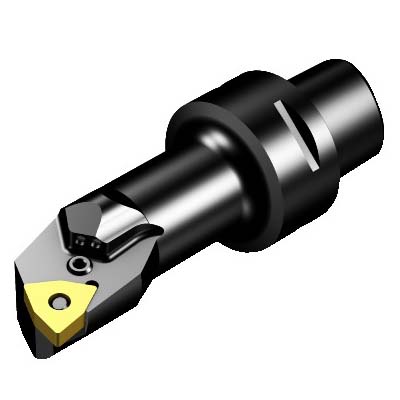

Sandvik Coromant 6188675 T-Max® P Turning Cutting Unit, 3.5433 in, 4.4881 in OAL, Right Hand, WNMG 080408 Insert
Custom_Product_Images_Illustration
Sandvik Coromant 6188675 T-Max® P Turning Cutting Unit, 3.5433 in, 4.4881 in OAL, Right Hand, WNMG 080408 Insert
SKU1229735
MFGR #6188675
Your Cost: $810.71/ea
Sandvik Coromant Turning Cutting Unit, Series: T-Max® P, 3.5433 in Head Length/Projection, 4.4881 in Overall Length, W-Trigon Insert, Insert Compatibility: WNMG 080408, Right Hand Cutting, 0.6692 in Center to Cutting Edge, Steel
Sandvik Coromant Turning Cutting Unit, Series: T-Max® P, 3.5433 in Head Length/Projection, 4.4881 in Overall Length, W-Trigon Insert, Insert Compatibility: WNMG 080408, Right Hand Cutting, 0.6692 in Center to Cutting Edge, Steel
Alternate Catalog Number C4-PWLNR-17090-08HP Catalog Number 6188675 Center to Cutting Height 40mm Country of Origin SE Finish T-Max® P Gross Weight Per Pack 1.0100 lb Head Length|Projection 3.5433 in Insert Style W-Trigon Item Group 410 Master Insert WNMG 08 04 08 Material Steel Overall Length 4.4881 in Series T-Max® P Torque Newton Meters 2 Type -6 UPC 11 69826267788 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Center to Cutting Edge 0.6692 in Cutting Direction Right Hand Insert Compatibility WNMG 080408 Insert Holding Method Steel Internal or External Internal Number of Inserts WNMG 080408 System Size C4 0 deg body machine side 20 life cycle state 0 deg body workpiece side 25 mm Dia body Axial concentric and radial coolant entry 80 bar coolant Lever hole clamping Decentral focused coolant exit with nozzles 40 mm Dia connection 32 mm Dia minimum bore 95 deg cutting edge -10 deg inclination 63.4 mm L usable 0 deg ramping 4.5 Nm torque 1/2 in insert seat size 90 mm maximum overhang -5 deg lead -6 deg rake Bolt and segment clamping adaptive interface
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | C4-PWLNR-17090-08HP |
| Catalog Number | 6188675 |
| Center to Cutting Height | 40mm |
| Country of Origin | SE |
| Finish | T-Max® P |
| Gross Weight Per Pack | 1.0100 lb |
| Head Length|Projection | 3.5433 in |
| Insert Style | W-Trigon |
| Item Group | 410 |
| Master Insert | WNMG 08 04 08 |
| Material | Steel |
| Overall Length | 4.4881 in |
| Series | T-Max® P |
| Torque Newton Meters | 2 |
| Type | -6 |
| UPC 11 | 69826267788 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Center to Cutting Edge | 0.6692 in |
| Cutting Direction | Right Hand |
| Insert Compatibility | WNMG 080408 |
| Insert Holding Method | Steel |
| Internal or External | Internal |
| Number of Inserts | WNMG 080408 |
| System Size | C4 |
| 0 deg body machine side |
| 20 life cycle state |
| 0 deg body workpiece side |
| 25 mm Dia body |
| Axial concentric and radial coolant entry |
| 80 bar coolant |
| Lever hole clamping |
| Decentral focused coolant exit with nozzles |
| 40 mm Dia connection |
| 32 mm Dia minimum bore |
| 95 deg cutting edge |
| -10 deg inclination |
| 63.4 mm L usable |
| 0 deg ramping |
| 4.5 Nm torque |
| 1/2 in insert seat size |
| 90 mm maximum overhang |
| -5 deg lead |
| -6 deg rake |
| Bolt and segment clamping adaptive interface |
