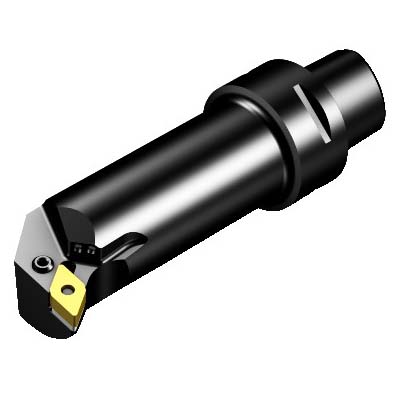

Sandvik Coromant 6188663 T-Max® P Turning Cutting Unit, 4.7244 in, 5.6692 in OAL, Left Hand, DNMG 150608 Insert
Custom_Product_Images_Illustration
Sandvik Coromant 6188663 T-Max® P Turning Cutting Unit, 4.7244 in, 5.6692 in OAL, Left Hand, DNMG 150608 Insert
SKU1229287
MFGR #6188663
Your Cost: $810.71/ea
Sandvik Coromant Turning Cutting Unit, Series: T-Max® P, 4.7244 in Head Length/Projection, 5.6692 in Overall Length, D-55 deg Diamond Insert, Insert Compatibility: DNMG 150608, Left Hand Cutting, 1.0629 in Center to Cutting Edge, Steel
Sandvik Coromant Turning Cutting Unit, Series: T-Max® P, 4.7244 in Head Length/Projection, 5.6692 in Overall Length, D-55 deg Diamond Insert, Insert Compatibility: DNMG 150608, Left Hand Cutting, 1.0629 in Center to Cutting Edge, Steel
Alternate Catalog Number C4-PDUNL-27120-15HP Catalog Number 6188663 Center to Cutting Height -6 Country of Origin SE Finish T-Max® P Gross Weight Per Pack 2.2100 lb Head Length|Projection 4.7244 in Includes 0.500 Insert Style D-55 deg Diamond Item Group 410 Master Insert DNMG 15 06 08 Material Steel Overall Length 5.6692 in Series T-Max® P Torque Newton Meters 5 Type 27 mm UPC 11 69826267774 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Center to Cutting Edge 1.0629 in Cutting Direction Left Hand Insert Compatibility DNMG 150608 Insert Holding Method Steel Number of Inserts 120 mm 0 deg body machine side 20 life cycle state 0 deg body workpiece side 40 mm Dia body Axial concentric and radial coolant entry 80 bar coolant Lever hole clamping Decentral focused coolant exit with nozzles 40 mm Dia connection 50 mm Dia minimum bore 93 deg cutting edge -11 deg inclination 99 mm L usable 27 deg ramping 5 Nm torque 1/2 in insert seat size 7 mm W usable 120 mm maximum overhang -3 deg lead -6 deg rake
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | C4-PDUNL-27120-15HP |
| Catalog Number | 6188663 |
| Center to Cutting Height | -6 |
| Country of Origin | SE |
| Finish | T-Max® P |
| Gross Weight Per Pack | 2.2100 lb |
| Head Length|Projection | 4.7244 in |
| Includes | 0.500 |
| Insert Style | D-55 deg Diamond |
| Item Group | 410 |
| Master Insert | DNMG 15 06 08 |
| Material | Steel |
| Overall Length | 5.6692 in |
| Series | T-Max® P |
| Torque Newton Meters | 5 |
| Type | 27 mm |
| UPC 11 | 69826267774 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Center to Cutting Edge | 1.0629 in |
| Cutting Direction | Left Hand |
| Insert Compatibility | DNMG 150608 |
| Insert Holding Method | Steel |
| Number of Inserts | 120 mm |
| 0 deg body machine side |
| 20 life cycle state |
| 0 deg body workpiece side |
| 40 mm Dia body |
| Axial concentric and radial coolant entry |
| 80 bar coolant |
| Lever hole clamping |
| Decentral focused coolant exit with nozzles |
| 40 mm Dia connection |
| 50 mm Dia minimum bore |
| 93 deg cutting edge |
| -11 deg inclination |
| 99 mm L usable |
| 27 deg ramping |
| 5 Nm torque |
| 1/2 in insert seat size |
| 7 mm W usable |
| 120 mm maximum overhang |
| -3 deg lead |
| -6 deg rake |
