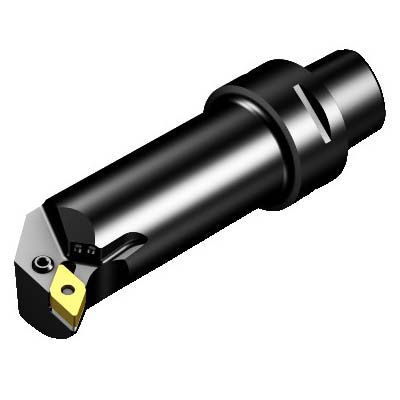

Sandvik Coromant 6188660 T-Max® P Turning Cutting Unit, 3.5433 in, 4.4881 in OAL, Left Hand, DNMG 110408 Insert
Custom_Product_Images_Illustration
Sandvik Coromant 6188660 T-Max® P Turning Cutting Unit, 3.5433 in, 4.4881 in OAL, Left Hand, DNMG 110408 Insert
SKU1229288
MFGR #6188660
Your Cost: $810.71/ea
Sandvik Coromant Turning Cutting Unit, Series: T-Max® P, 3.5433 in Head Length/Projection, 4.4881 in Overall Length, D-55 deg Diamond Insert, Insert Compatibility: DNMG 110408, Left Hand Cutting, 0.6692 in Center to Cutting Edge, Steel
Sandvik Coromant Turning Cutting Unit, Series: T-Max® P, 3.5433 in Head Length/Projection, 4.4881 in Overall Length, D-55 deg Diamond Insert, Insert Compatibility: DNMG 110408, Left Hand Cutting, 0.6692 in Center to Cutting Edge, Steel
Alternate Catalog Number C4-PDUNL-17090-11HP Catalog Number 6188660 Center to Cutting Height 40mm Country of Origin SE Finish T-Max® P Gross Weight Per Pack 1.0200 lb Head Length|Projection 3.5433 in Insert Style D-55 deg Diamond Item Group 410 Master Insert DNMG 11 04 08 Material Steel Overall Length 4.4881 in Series T-Max® P Torque Newton Meters 2 Type 17 mm UPC 11 69826267771 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Center to Cutting Edge 0.6692 in Cutting Direction Left Hand Insert Compatibility DNMG 110408 Insert Holding Method Steel Internal or External Internal Number of Inserts Left Hand System Size C4 0 deg body machine side 20 life cycle state 0 deg body workpiece side 25 mm Dia body Axial concentric and radial coolant entry 80 bar coolant Lever hole clamping Decentral focused coolant exit with nozzles 40 mm Dia connection 32 mm Dia minimum bore 93 deg cutting edge -11 deg inclination 63.4 mm L usable 27 deg ramping 2 Nm torque 3/8 in insert seat size 4.5 mm W usable 90 mm maximum overhang -3 deg lead -6 deg rake
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | C4-PDUNL-17090-11HP |
| Catalog Number | 6188660 |
| Center to Cutting Height | 40mm |
| Country of Origin | SE |
| Finish | T-Max® P |
| Gross Weight Per Pack | 1.0200 lb |
| Head Length|Projection | 3.5433 in |
| Insert Style | D-55 deg Diamond |
| Item Group | 410 |
| Master Insert | DNMG 11 04 08 |
| Material | Steel |
| Overall Length | 4.4881 in |
| Series | T-Max® P |
| Torque Newton Meters | 2 |
| Type | 17 mm |
| UPC 11 | 69826267771 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Center to Cutting Edge | 0.6692 in |
| Cutting Direction | Left Hand |
| Insert Compatibility | DNMG 110408 |
| Insert Holding Method | Steel |
| Internal or External | Internal |
| Number of Inserts | Left Hand |
| System Size | C4 |
| 0 deg body machine side |
| 20 life cycle state |
| 0 deg body workpiece side |
| 25 mm Dia body |
| Axial concentric and radial coolant entry |
| 80 bar coolant |
| Lever hole clamping |
| Decentral focused coolant exit with nozzles |
| 40 mm Dia connection |
| 32 mm Dia minimum bore |
| 93 deg cutting edge |
| -11 deg inclination |
| 63.4 mm L usable |
| 27 deg ramping |
| 2 Nm torque |
| 3/8 in insert seat size |
| 4.5 mm W usable |
| 90 mm maximum overhang |
| -3 deg lead |
| -6 deg rake |
