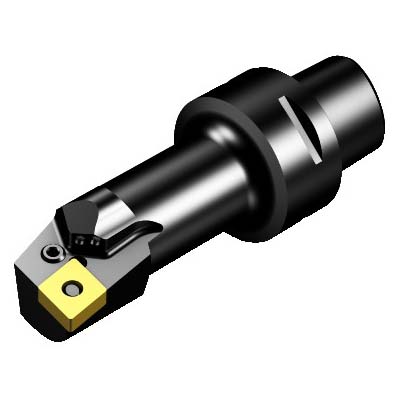

Sandvik Coromant 6188657 T-Max® P Turning Cutting Unit, 4.3307 in, 5.2755 in OAL, Right Hand, CNMG 120408 Insert
Custom_Product_Images_Illustration
Sandvik Coromant 6188657 T-Max® P Turning Cutting Unit, 4.3307 in, 5.2755 in OAL, Right Hand, CNMG 120408 Insert
SKU1229258
MFGR #6188657
$/ea
Sandvik Coromant Turning Cutting Unit, Series: T-Max® P, 4.3307 in Head Length/Projection, 5.2755 in Overall Length, C-80 deg Diamond Insert, Insert Compatibility: CNMG 120408, Right Hand Cutting, 0.8661 in Center to Cutting Edge, Steel
Sandvik Coromant Turning Cutting Unit, Series: T-Max® P, 4.3307 in Head Length/Projection, 5.2755 in Overall Length, C-80 deg Diamond Insert, Insert Compatibility: CNMG 120408, Right Hand Cutting, 0.8661 in Center to Cutting Edge, Steel
Alternate Catalog Number C4-PCLNR-22110-12HP Catalog Number 6188657 Center to Cutting Height 0.500 Country of Origin SE Finish T-Max® P Gross Weight Per Pack 1.5600 lb Head Length|Projection 4.3307 in Includes -6 Insert Style C-80 deg Diamond Item Group 410 Master Insert CNMG 12 04 08 Material Steel Overall Length 5.2755 in Series T-Max® P Torque Newton Meters 5 Type T-Max® P UPC 11 69826267768 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Center to Cutting Edge 0.8661 in Cutting Direction Right Hand Insert Compatibility CNMG 120408 Insert Holding Method Steel Number of Inserts C-80 deg Diamond 0 deg body machine side 20 life cycle state 0 deg body workpiece side 32 mm Dia body Axial concentric and radial coolant entry 80 bar coolant Lever hole clamping Decentral focused coolant exit with nozzles 40 mm Dia connection 40 mm Dia minimum bore 95 deg cutting edge -11 deg inclination 86.6 mm L usable 0 deg ramping 5 Nm torque 1/2 in insert seat size 110 mm maximum overhang -5 deg lead -6 deg rake Bolt and segment clamping adaptive interface
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | C4-PCLNR-22110-12HP |
| Catalog Number | 6188657 |
| Center to Cutting Height | 0.500 |
| Country of Origin | SE |
| Finish | T-Max® P |
| Gross Weight Per Pack | 1.5600 lb |
| Head Length|Projection | 4.3307 in |
| Includes | -6 |
| Insert Style | C-80 deg Diamond |
| Item Group | 410 |
| Master Insert | CNMG 12 04 08 |
| Material | Steel |
| Overall Length | 5.2755 in |
| Series | T-Max® P |
| Torque Newton Meters | 5 |
| Type | T-Max® P |
| UPC 11 | 69826267768 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Center to Cutting Edge | 0.8661 in |
| Cutting Direction | Right Hand |
| Insert Compatibility | CNMG 120408 |
| Insert Holding Method | Steel |
| Number of Inserts | C-80 deg Diamond |
| 0 deg body machine side |
| 20 life cycle state |
| 0 deg body workpiece side |
| 32 mm Dia body |
| Axial concentric and radial coolant entry |
| 80 bar coolant |
| Lever hole clamping |
| Decentral focused coolant exit with nozzles |
| 40 mm Dia connection |
| 40 mm Dia minimum bore |
| 95 deg cutting edge |
| -11 deg inclination |
| 86.6 mm L usable |
| 0 deg ramping |
| 5 Nm torque |
| 1/2 in insert seat size |
| 110 mm maximum overhang |
| -5 deg lead |
| -6 deg rake |
| Bolt and segment clamping adaptive interface |
