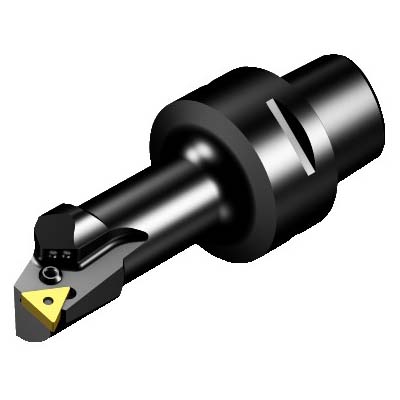

Sandvik Coromant 6188648 T-Max® P Turning Cutting Unit, 2.9527 in, 3.7007 in OAL, Left Hand, TNMG 110304 Insert
Custom_Product_Images_Illustration
Sandvik Coromant 6188648 T-Max® P Turning Cutting Unit, 2.9527 in, 3.7007 in OAL, Left Hand, TNMG 110304 Insert
SKU1229245
MFGR #6188648
Your Cost: $620.32/ea
Sandvik Coromant Turning Cutting Unit, Series: T-Max® P, 2.9527 in Head Length/Projection, 3.7007 in Overall Length, T-Triangle Insert, Insert Compatibility: TNMG 110304, Left Hand Cutting, 0.5118 in Center to Cutting Edge, Steel
Sandvik Coromant Turning Cutting Unit, Series: T-Max® P, 2.9527 in Head Length/Projection, 3.7007 in Overall Length, T-Triangle Insert, Insert Compatibility: TNMG 110304, Left Hand Cutting, 0.5118 in Center to Cutting Edge, Steel
Catalog Number 6188648 Center to Cutting Height 32mm Country of Origin SE Finish T-Max® P Gross Weight Per Pack 0.5100 lb Head Length|Projection 2.9527 in Insert Style T-Triangle Master Insert TNMG 11 03 04 Material Steel Overall Length 3.7007 in Series T-Max® P Torque Newton Meters 1 Type Steel UPC 11 69826267741 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Center to Cutting Edge 0.5118 in Cutting Direction Left Hand Insert Compatibility TNMG 110304 Insert Holding Method Steel Internal or External Internal Number of Inserts 0.250 System Size C3 0 deg body machine side 20 life cycle state 0 deg body workpiece side 20 mm Dia body Axial concentric and radial coolant entry 80 bar coolant Lever hole clamping Decentral focused coolant exit with nozzles 32 mm Dia connection 32 mm Dia minimum bore 91 deg cutting edge -12 deg inclination 53.8 mm L usable 0 deg ramping 1.2 Nm torque 1/4 in insert seat size 75 mm maximum overhang -1 deg lead -6 deg rake Bolt and segment clamping adaptive interface
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Catalog Number | 6188648 |
| Center to Cutting Height | 32mm |
| Country of Origin | SE |
| Finish | T-Max® P |
| Gross Weight Per Pack | 0.5100 lb |
| Head Length|Projection | 2.9527 in |
| Insert Style | T-Triangle |
| Master Insert | TNMG 11 03 04 |
| Material | Steel |
| Overall Length | 3.7007 in |
| Series | T-Max® P |
| Torque Newton Meters | 1 |
| Type | Steel |
| UPC 11 | 69826267741 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Center to Cutting Edge | 0.5118 in |
| Cutting Direction | Left Hand |
| Insert Compatibility | TNMG 110304 |
| Insert Holding Method | Steel |
| Internal or External | Internal |
| Number of Inserts | 0.250 |
| System Size | C3 |
| 0 deg body machine side |
| 20 life cycle state |
| 0 deg body workpiece side |
| 20 mm Dia body |
| Axial concentric and radial coolant entry |
| 80 bar coolant |
| Lever hole clamping |
| Decentral focused coolant exit with nozzles |
| 32 mm Dia connection |
| 32 mm Dia minimum bore |
| 91 deg cutting edge |
| -12 deg inclination |
| 53.8 mm L usable |
| 0 deg ramping |
| 1.2 Nm torque |
| 1/4 in insert seat size |
| 75 mm maximum overhang |
| -1 deg lead |
| -6 deg rake |
| Bolt and segment clamping adaptive interface |
