Sandvik Coromant

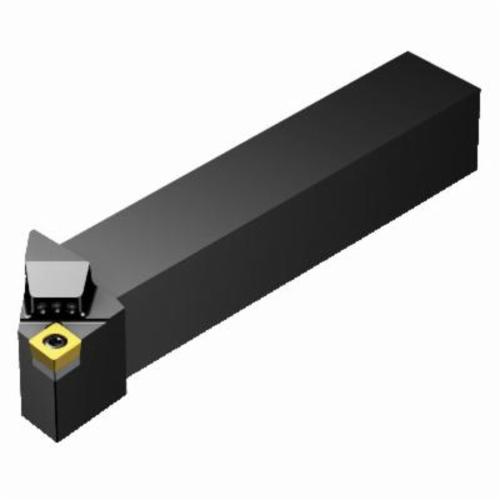

Sandvik Coromant 6188587 CoroTurn 107 Shank Tool, SDJCR/L..HP Tool Holder, DCMT 11T308 (MIIDM) and DCMT 3(2.5)2 (MIIDN) Insert, -3 deg Lead, Rectangle Shank, Right Hand
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 6188587 CoroTurn 107 Shank Tool, SDJCR/L..HP Tool Holder, DCMT 11T308 (MIIDM) and DCMT 3(2.5)2 (MIIDN) Insert, -3 deg Lead, Rectangle Shank, Right Hand
SKU1246551
MFGR #6188587
Your Cost: $342.78/ea
Sandvik Coromant Shank Tool, Series: CoroTurn 107, SDJCR/L..HP Tool Holder, 6 in Overall Length, Rectangle Shank, 1-1/4 in H x 1 in W Shank, Insert Compatibility: DCMT 11T308 (MIIDM) and DCMT 3(2.5)2 (MIIDN), 3/8 Insert Seat, Right Hand Cutting, -3 deg Lead Angle, ANSI Code: SDJCR 85 3DHP, ISO Code: SDJCR 85 3DHP, 0 deg Rake, Steel
Sandvik Coromant Shank Tool, Series: CoroTurn 107, SDJCR/L..HP Tool Holder, 6 in Overall Length, Rectangle Shank, 1-1/4 in H x 1 in W Shank, Insert Compatibility: DCMT 11T308 (MIIDM) and DCMT 3(2.5)2 (MIIDN), 3/8 Insert Seat, Right Hand Cutting, -3 deg Lead Angle, ANSI Code: SDJCR 85 3DHP, ISO Code: SDJCR 85 3DHP, 0 deg Rake, Steel
ANSI Code SDJCR 85 3DHP Catalog Number 6188587 Country of Origin SE Gross Weight Per Pack 2.1100 lb Insert Seat Size 3/8 ISO Code SDJCR 85 3DHP Material Steel Series CoroTurn 107 Shank Type Rectangle UPC 11 69826268568 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Direction Right Hand Insert Compatibility DCMT 11T308 (MIIDM) and DCMT 3(2.5)2 (MIIDN) Lead Angle -3 deg Overall Length 6 in Rake 0 deg Shank Size 1-1/4 in H x 1 in W Tool Holder Style SDJCR/L..HP 0 deg body machine side 0 deg body workpiece side Axial concentric coolant entry Decentral focused coolant exit with nozzles 0 deg inclination 93 deg cutting edge 27 deg maximum ramping 40 life cycle state 28 mm maximum overhang 3 Nm torque 31.75 mm W functional 40 - 60 deg insert screw clamping D - 55 deg diamond insert ANSI Code: SDJCR 85 3DHP ISO Code: SDJCR 85 3DHP
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| ANSI Code | SDJCR 85 3DHP |
| Catalog Number | 6188587 |
| Country of Origin | SE |
| Gross Weight Per Pack | 2.1100 lb |
| Insert Seat Size | 3/8 |
| ISO Code | SDJCR 85 3DHP |
| Material | Steel |
| Series | CoroTurn 107 |
| Shank Type | Rectangle |
| UPC 11 | 69826268568 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Direction | Right Hand |
| Insert Compatibility | DCMT 11T308 (MIIDM) and DCMT 3(2.5)2 (MIIDN) |
| Lead Angle | -3 deg |
| Overall Length | 6 in |
| Rake | 0 deg |
| Shank Size | 1-1/4 in H x 1 in W |
| Tool Holder Style | SDJCR/L..HP |
| 0 deg body machine side |
| 0 deg body workpiece side |
| Axial concentric coolant entry |
| Decentral focused coolant exit with nozzles |
| 0 deg inclination |
| 93 deg cutting edge |
| 27 deg maximum ramping |
| 40 life cycle state |
| 28 mm maximum overhang |
| 3 Nm torque |
| 31.75 mm W functional |
| 40 - 60 deg insert screw clamping |
| D - 55 deg diamond insert |
| ANSI Code: SDJCR 85 3DHP |
| ISO Code: SDJCR 85 3DHP |
